Product name
Broadbe Direct Attach Cable 10G 3m
Warranty
?
24 months
Manufacturer part number
BCC-DAC-10G-3M
EAN
5061093891994

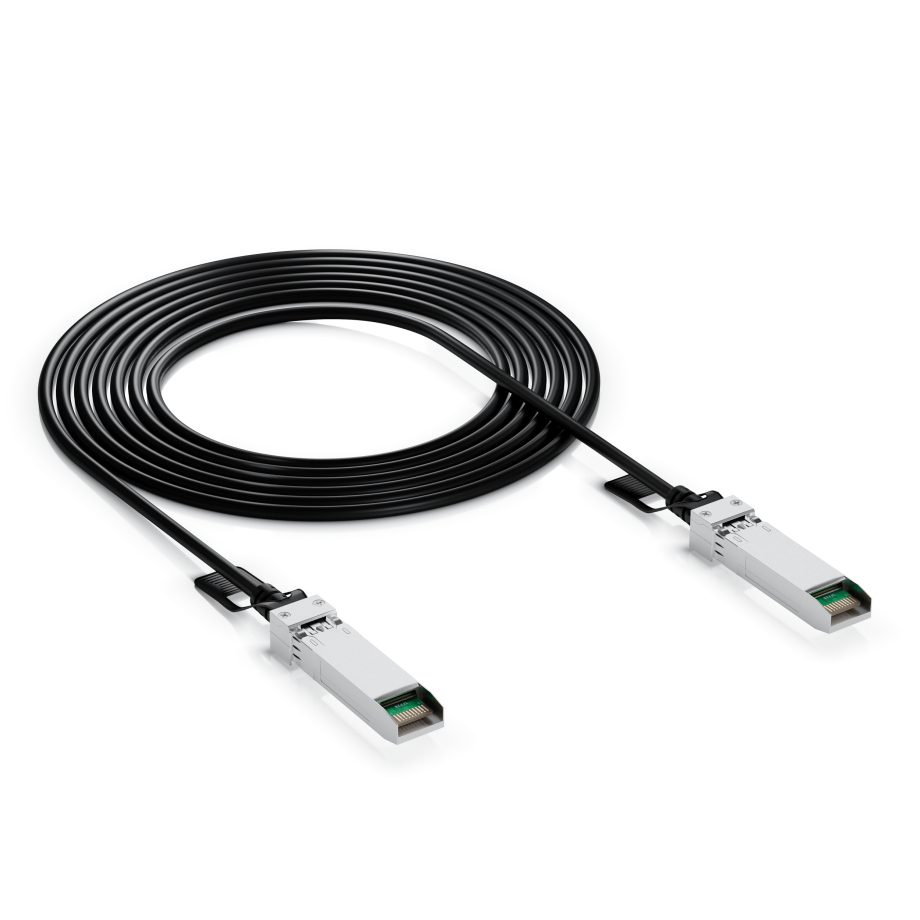

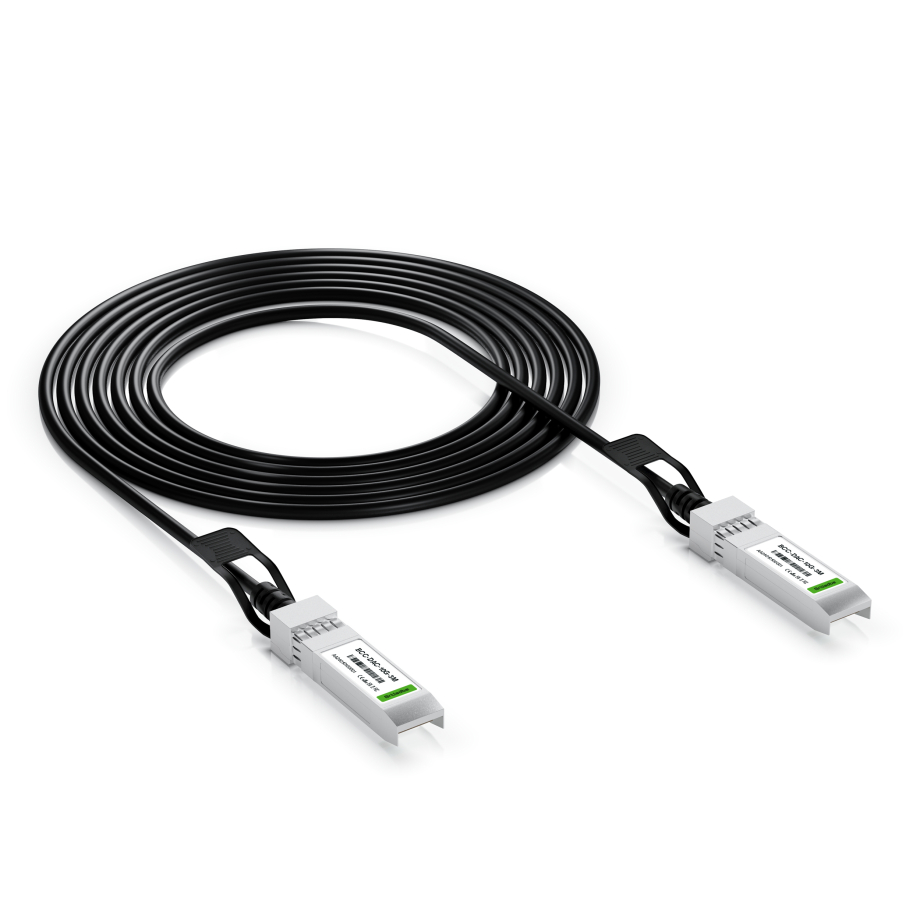

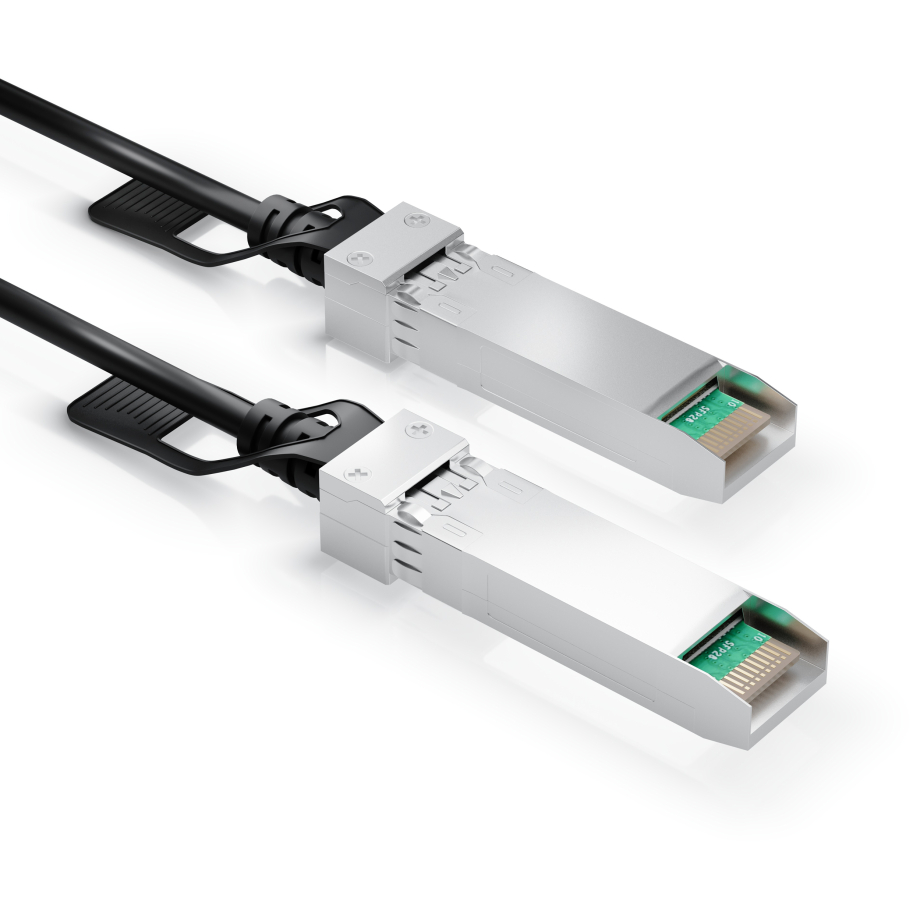

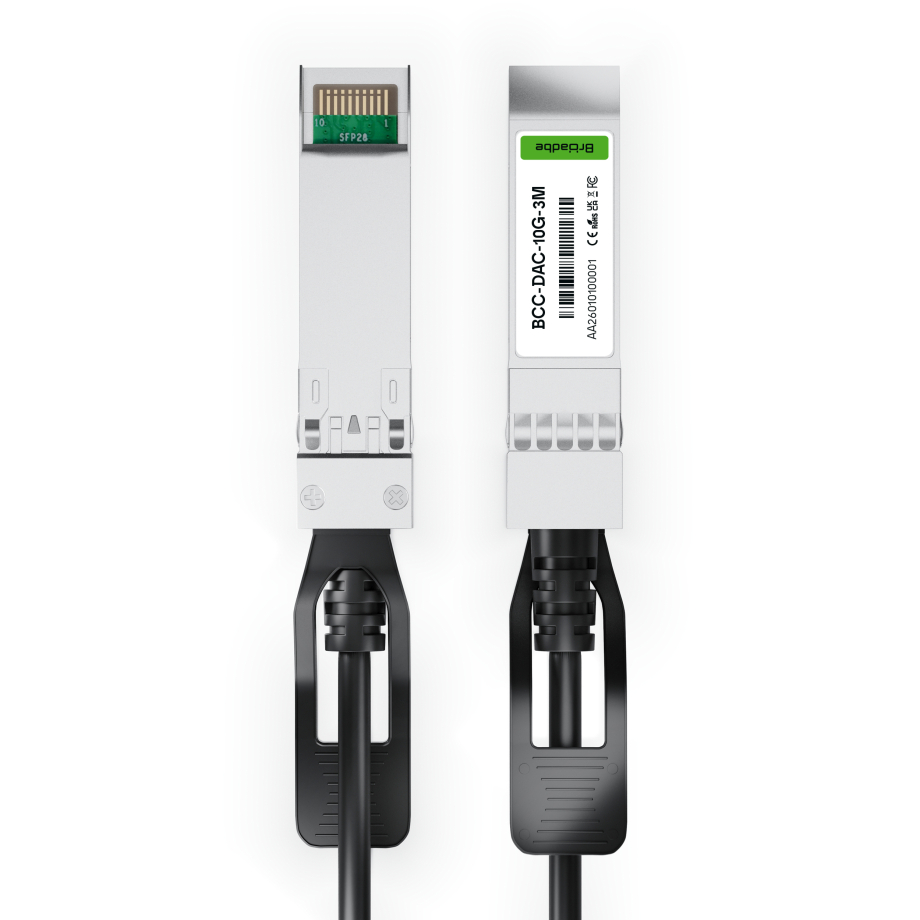

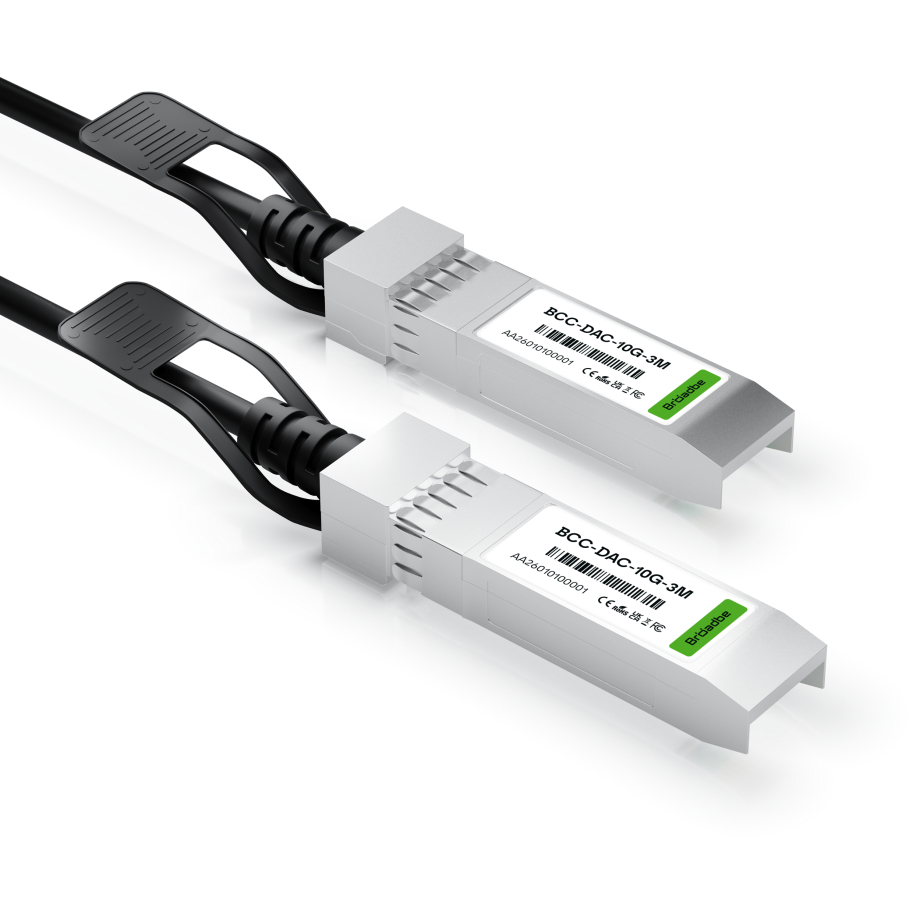

Broadbe 10G Direct Attach Cable 3m – High-Speed DAC for Data Centers
- 10G Direct Attach Copper (DAC) cable for fast, low-latency short-distance links in data centers and enterprise networks; ideal for switch-to-switch, switch-to-server, and storage connections.
- 3 m cable length helps connect adjacent racks with a cost-effective alternative to optical transceivers, while supporting stable signal transmission and low power consumption.
- Plug-and-play DAC installation requires no additional configuration, helping speed up deployment for Ethernet networking in racks, top-of-rack switching, and aggregation links.
- Fully compatible with SFP+ interfaces for reliable 10G networking; designed for modern switches, routers, servers, and storage systems in professional environments.
- High-performance copper direct attach cable optimized for data center and telecom use, delivering dependable short-range connectivity for everyday high-speed network links.
12.87 €
In stock
?
12.87 €
In stock
?
Detailed description
High-Speed Direct Attach Copper (DAC) Cable Series
High-performance Direct Attach Copper (DAC) cables designed for reliable short-distance connections between switches, routers, and servers in data centers and enterprise networks. These cables provide a cost-effective, low-latency alternative to optical transceivers for high-speed networking links within racks or between adjacent racks.
The DAC cables use integrated transceiver modules connected by a high-quality copper cable, ensuring stable signal transmission, low power consumption, and excellent performance for modern Ethernet standards.
Key Features
- Supported data rates: 10G/ 25G/ 100G
- Ideal for switch-to-switch, switch-to-server, and storage connections
- Plug-and-play installation with no additional configuration required
- Fully compatible with SFP+, SFP28, and QSFP28 interfaces
- Optimized for data centers, enterprise networks, and telecom environments
Available Lengths:
0.1 m, 0.3 m, 0.5m, 1 m, 2 m, 3 m, 5 m
Typical Applications
- Data center top-of-rack switching
- Server and storage connectivity
- High-speed aggregation links
- Short-distance 10G/ 25G/ 100G Ethernet interconnections
Compatibility
These direct attach cables are compatible with networking equipment from the following brands: MikroTik, Ubiquiti, Cisco, Juniper, TP-Link, Netgear, D-Link, Zyxel, Supermicro, Ruckus, Ruijie, ZTE, Planet, Allnet, D-Link, Linksys, Compaq and others.
Technical Specs / Datasheet
Specifications
Cable & Connector
Cable Type
DAC
Connector
(2) SFP+
Max Data Rate
10Gbps
Cable Length
Conductor
Pure Copper
Jacket
PVC
Jacket Diameter
4.2 mm
Physical Parameters
Color
Black
Operating Temperature
0 °C to 70 °C
Environment
Indoor
Package Contains
Units
1 pcs
