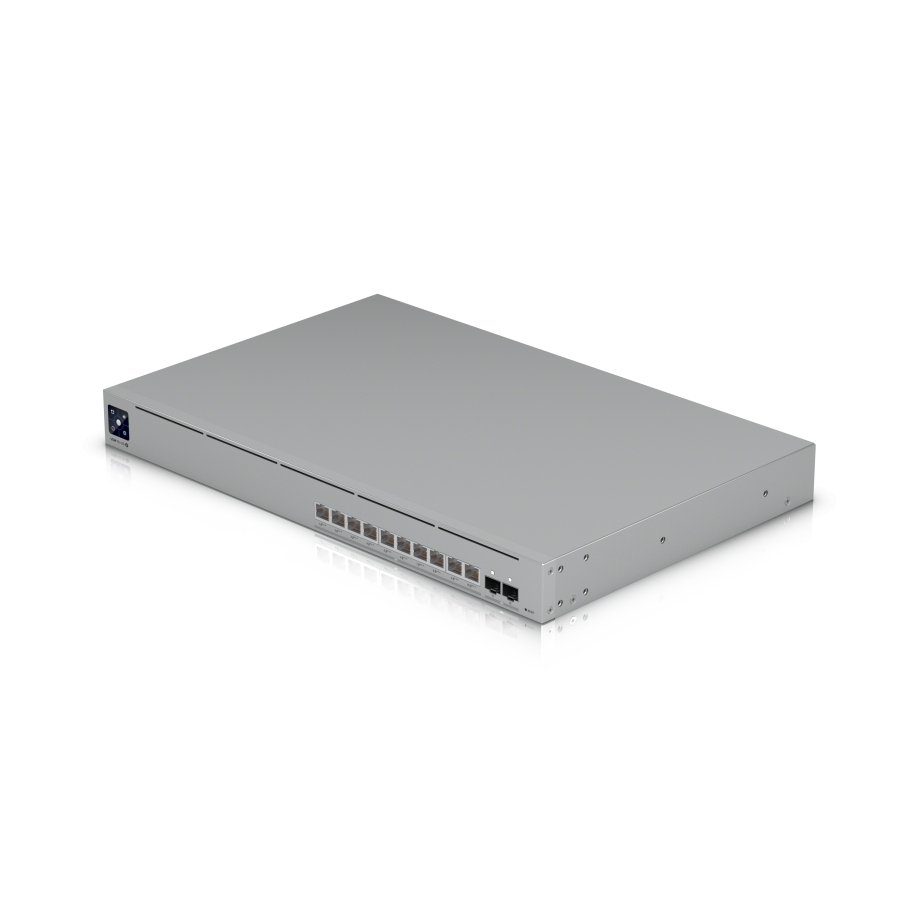

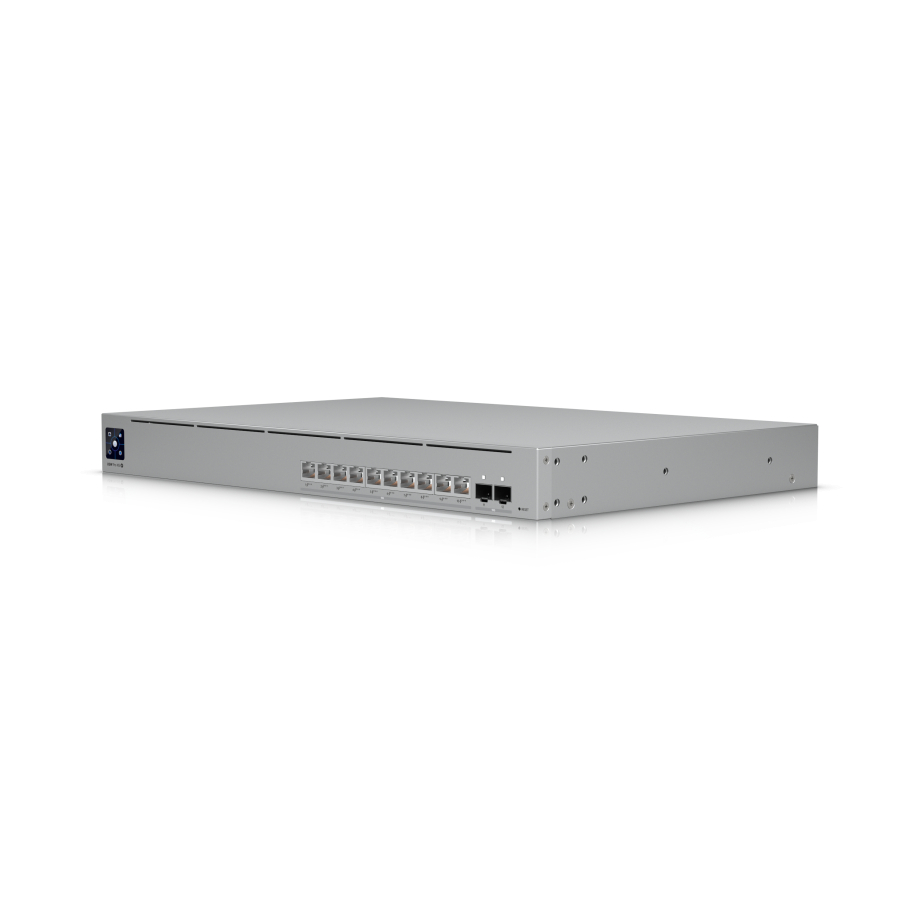

Ubiquiti UniFi Switch Pro XG 10 PoE

The Ubiquiti UniFi Switch Pro XG 10 PoE is a high-performance 10-Gigabit Ethernet switch designed for enterprise and professional network environments that demand exceptional speed, scalability, and reliability. It delivers 120 Gbps of non-blocking throughput, a 240 Gbps switching capacity, and up to 179 million packets per second forwarding rate, ensuring smooth operation even under heavy traffic loads. Supporting up to 32,000 MAC addresses, 12,000 IPv4 routes, and 12,000 ARP entries, the switch can easily handle complex and growing network infrastructures. It offers advanced Layer 2 and Layer 3 functionality, including VLAN segmentation for up to 1,000 VLANs, inter-VLAN routing, static routing, DHCP server and relay options, and full QoS control. With features like jumbo frames, port mirroring, link aggregation, and Spanning Tree Protocol (STP/RSTP/MSTP), the USW-Pro-XG-10-PoE provides rock-solid performance and flexibility for modern multi-gigabit deployments in offices, data centers, and AV installations.

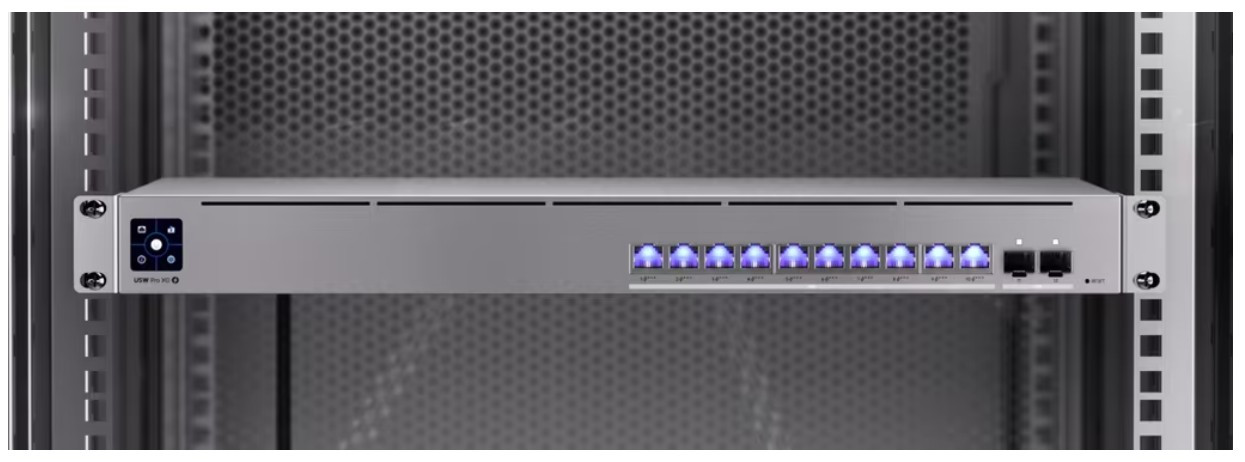

Equipped with ten auto-sensing 10G RJ45 ports, the UniFi Switch Pro XG 10 PoE delivers high-speed connectivity across copper Ethernet lines while supporting PoE+++ (IEEE 802.3bt) power delivery up to 90 W per port and a total PoE budget of 400 W. This allows the switch to power demanding network devices such as Wi-Fi 6E access points, high-resolution PTZ cameras, VoIP systems, and advanced IoT endpoints directly through Ethernet cabling. Additionally, two 10G SFP+ uplink ports provide flexibility for fibre connections or long-distance backbone links. The Etherlighting™ LED indicators help quickly identify port status, speed, and VLAN configuration, improving efficiency during installation or troubleshooting. Designed for both enterprise and professional AV use, the switch includes a built-in 100–240 V AC power supply and redundant DC input for uninterrupted uptime. With fan cooling and a compact 1U rack-mountable steel enclosure, the USW-Pro-XG-10-PoE combines power, performance, and reliability in one solution.

The USW-Pro-XG-10-PoE integrates seamlessly with UniFi Network Controller software and the UniFi Cloud platform, enabling comprehensive configuration, monitoring, and real-time analytics through a single intuitive interface. Network administrators can easily apply VLAN policies, PoE schedules, traffic prioritization, and advanced security features such as 802.1X authentication, DHCP snooping, dynamic ACLs, and port isolation. Layer 3 capabilities include static routing, inter-VLAN routing, and DHCP server or relay functionality, simplifying complex network topologies. The switch also supports AV profiles for Crestron, Dante, Q-SYS, NDI, SDVoE, AES67, and Shure networks, ensuring interoperability in audio-visual and broadcast environments. Built with durable SGCC steel and ESD/EMP protection up to ±30 kV, it guarantees reliable operation from –5 °C to 40 °C with 10–90% non-condensing humidity. Combined with UniFi SmartPower RPS for power redundancy, the switch delivers maximum uptime, advanced management, and long-term operational stability.
