MikroTik CRS317-1G-16S+RM
MikroTik MTCNA Certificate
MikroTik Value Added Distributor
in stock
?
367.87 €
367.87 €
MikroTik MTCNA Certificate
MikroTik Value Added Distributor
Detailed description
Efficient Routing & Segmentation
The MikroTik CRS317-1G-16S+RM is a Layer 3 switch designed for efficient routing and network segmentation, making it ideal for connecting diverse network segments or VLANs. Paired with its 10GbE capability, it ensures fast data transmission rates, making it suitable for data-intensive tasks. Whether you're overseeing a data center, managing high-volume computational tasks, or streaming high-definition content, this switch provides both the speed and routing functionality needed for optimal performance.
Advanced Port Configuration
The MikroTik CRS317 is not just an advanced networking solution with its 16 SFP+ ports designed for 10GbE connections, catering to the needs of growing businesses; it also brings in enhanced protection and true professional performance for demanding networks with new features like the hardware-based Spanning Tree Protocol (MSTP) and Link Aggregation (LACP). Additionally, the switch includes a 1GbE copper port for efficient network management. Its versatility makes it suitable for both small offices and large data centers, providing the speed and reliability required for cloud computing and real-time analytics.
Multitasking Capabilities
Equipped with the efficient 98DX8216 chipset and a dual-core processor running at 800 MHz, the CRS317 ensures swift operations and promises optimal multitasking capabilities, especially being coupled with its abundant 1 GB of RAM. This robust memory allocation guarantees the seamless handling of extensive data traffic and ensures seamless execution of complex security measures.
Amplified Reliability

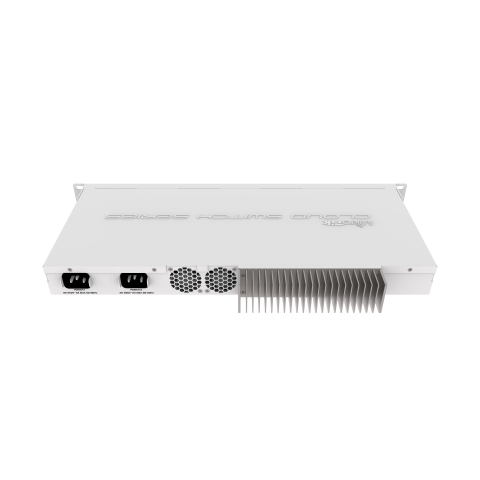

This device is equipped with dual redundant power supplies, a feature often seen in rigorous environments such as data centers and medical facilities. Boasting two independent power sources, its reliability is amplified. If one source encounters an issue, the second ensures uninterrupted functioning. This configuration not only extends the equipment's longevity but also manages power inconsistencies effectively. For enhanced protection, each power supply connects to distinct circuits. While the device primarily relies on passive cooling, its fans engage in higher temperatures to guarantee optimal operation.
Operational Versatility
The "Dual boot" functionality in the MikroTik CRS317 provides users with the option to select between two distinct operating systems based on their specific needs. Users can opt for RouterOS, renowned for its comprehensive routing features, or SwOS, tailored for switch-specific functions. This feature allows users to precisely configure functions ranging from basic port-to-port forwarding to more complex adjustments in MAC and IP headers.
Compare with similar products
Ethernet Ports | |||
1 x 1 Gbps | 8 x 10 Gbps | 4 x 1 Gbps | |
SFP Ports | |||
16 x 10G SFP+ | 4 x 10G SFP+/ETH Combo | 20 x 1G SFP, 4 x 1G SFP/ETH Combo, 4 x 10G SFP+ | |
USB Ports | |||
1 x USB-A 2.0 | |||
Chipset | |||
98DX8216, 2 core, 800 MHz | QCA9531, 1 core, 650 MHz | 98DX3236, 1 core, 800 MHz | |
RAM | |||
1 GB | 64 MB | 512 MB | |
Storage Memory | |||
16 MB | 16 MB | 16 MB | |
Software | |||
RouterOS Level 6, SwitchOS | RouterOS Level 5, SwitchOS | RouterOS Level 5, SwitchOS | |
Max Power Consumption | |||
42 W | 60 W | 43 W |
Ethernet Ports | 1 x 1 Gbps | 8 x 10 Gbps | 4 x 1 Gbps |
SFP Ports | 16 x 10G SFP+ | 4 x 10G SFP+/ETH Combo | 20 x 1G SFP, 4 x 1G SFP/ETH Combo, 4 x 10G SFP+ |
USB Ports | 1 x USB-A 2.0 | ||
Chipset | 98DX8216, 2 core, 800 MHz | QCA9531, 1 core, 650 MHz | 98DX3236, 1 core, 800 MHz |
RAM | 1 GB | 64 MB | 512 MB |
Storage Memory | 16 MB | 16 MB | 16 MB |
Software | RouterOS Level 6, SwitchOS | RouterOS Level 5, SwitchOS | RouterOS Level 5, SwitchOS |
Max Power Consumption | 42 W | 60 W | 43 W |
