Alfa Tube-U4Gv2 Global - 4G/LTE USB Modem with SIM Slot and N-Female Antenna Connector

The Tube-U4Gv2 is an outdoor 4G/LTE USB modem designed to connect a laptop or computer directly to a mobile network through its USB port. It supports LTE-FDD and LTE-TDD operation across the documented Global band set, while also supporting WCDMA and GSM technologies listed for the device. LTE-FDD data rates reach up to 150 Mbps downstream and 50 Mbps upstream, while LTE-TDD supports up to 130 Mbps downstream and 30 Mbps upstream. The modem also supports DC-HSDPA, HSUPA, WCDMA, EDGE, and GPRS data rates, covering several documented cellular modes within the Global version’s supported bands.

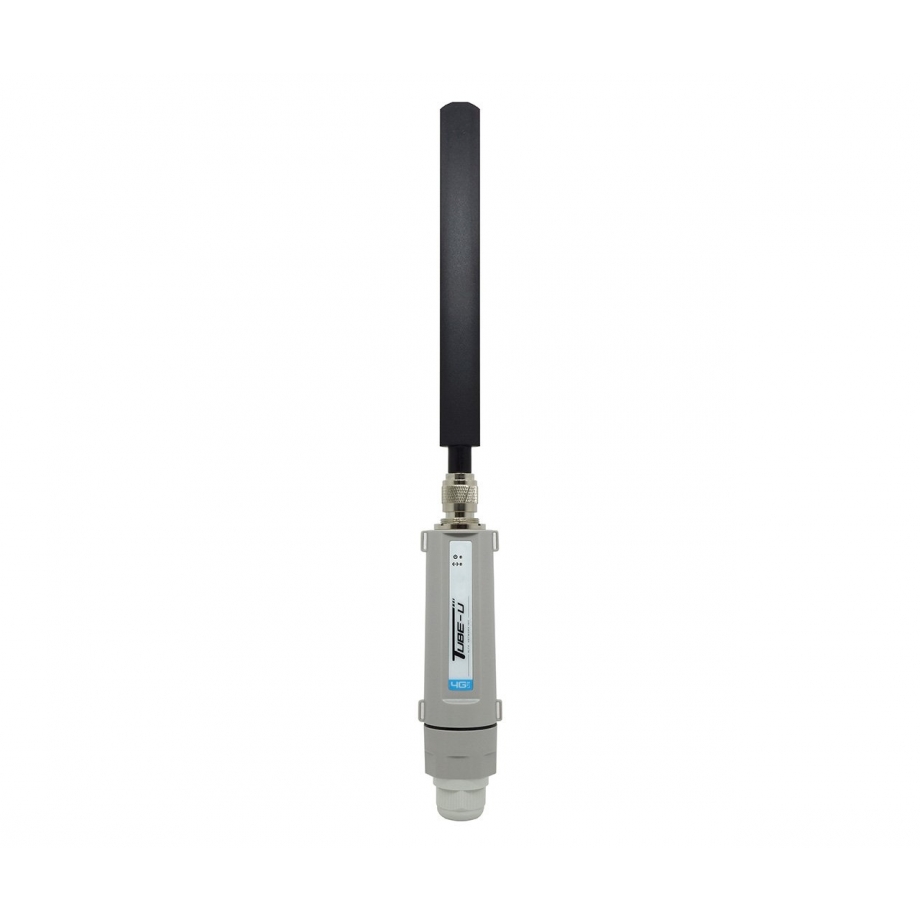

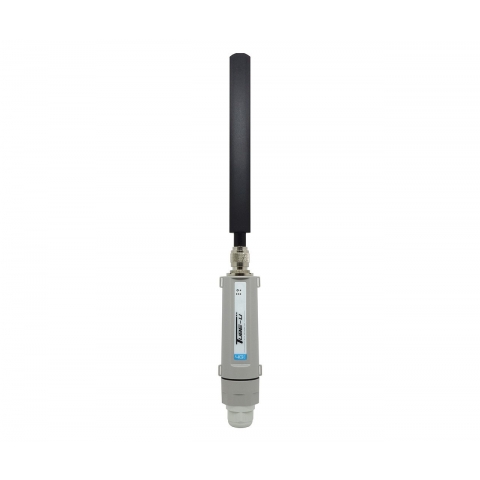

A Mini-USB 2.0 interface provides the host connection, and the modem accepts a standard 6-pin SIM card. The USB interface supports high-speed USB 2.0 operation up to 480 Mbps and is backward compatible with USB 1.0. For the radio connection, the device uses an N type female antenna connector and is supplied with a high-gain 4G/LTE omni antenna. The external connector also allows use of a preferred 4G antenna. A Power/Connection LED provides status indication. Actual mobile data performance can vary according to signal strength, coverage, operating frequencies, base-station status, network congestion, and network-management services on the 4G LTE network. For product selection, the Global version covers the specified LTE-FDD, LTE-TDD, WCDMA, and GSM band groups rather than a single regional profile.

The Tube-U4Gv2 uses an IP66 outdoor design intended to protect the unit from dust, oil, and water, supporting deployment in exposed locations within the documented operating conditions. Its specified temperature range is -40 to 80 °C, while storage humidity is 5% to 98% non-condensing. These environmental limits are important when selecting an installation location and planning operation or storage. The modem supports Windows and Linux systems, allowing it to be used with the operating-system families explicitly listed for the Global version. Its outdoor construction and supported environmental range complement the USB-connected modem format for installations where the cellular device may be positioned away from the host equipment.

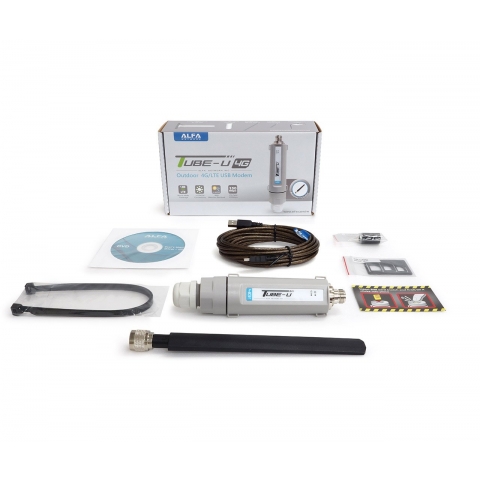

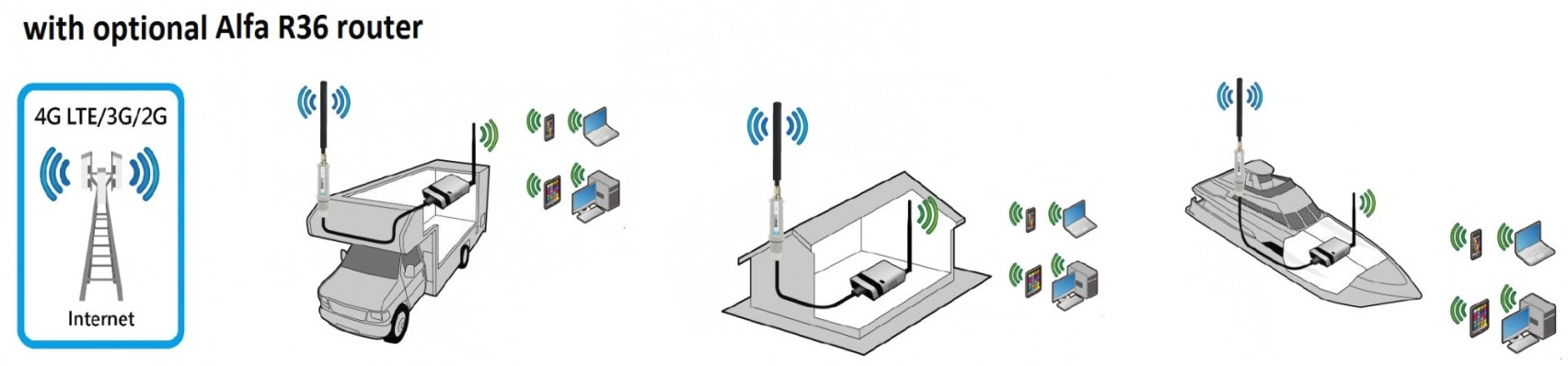

The modem can be connected directly to a laptop or computer USB port to establish a connection to a 4G/LTE tower. It can also be used for 4G mobile Internet sharing through the Alfa R36AH, with the documented scenario covering multiple-user Internet access in home, RV, and boat environments. In this arrangement, the Tube-U4Gv2 provides the mobile-network connection while the R36AH is used to share that Internet access with multiple users. The supplied 4G antenna and 5 m USB cable support the documented connection setup, while a pole-mount strap is also included. These components support the illustrated direct USB and shared-access deployment scenarios.
