Product name
Broadbe Direct Attach Cable 10G 5m
Warranty
?
24 months
Manufacturer part number
BCC-DAC-10G-5M
EAN
5061093892007

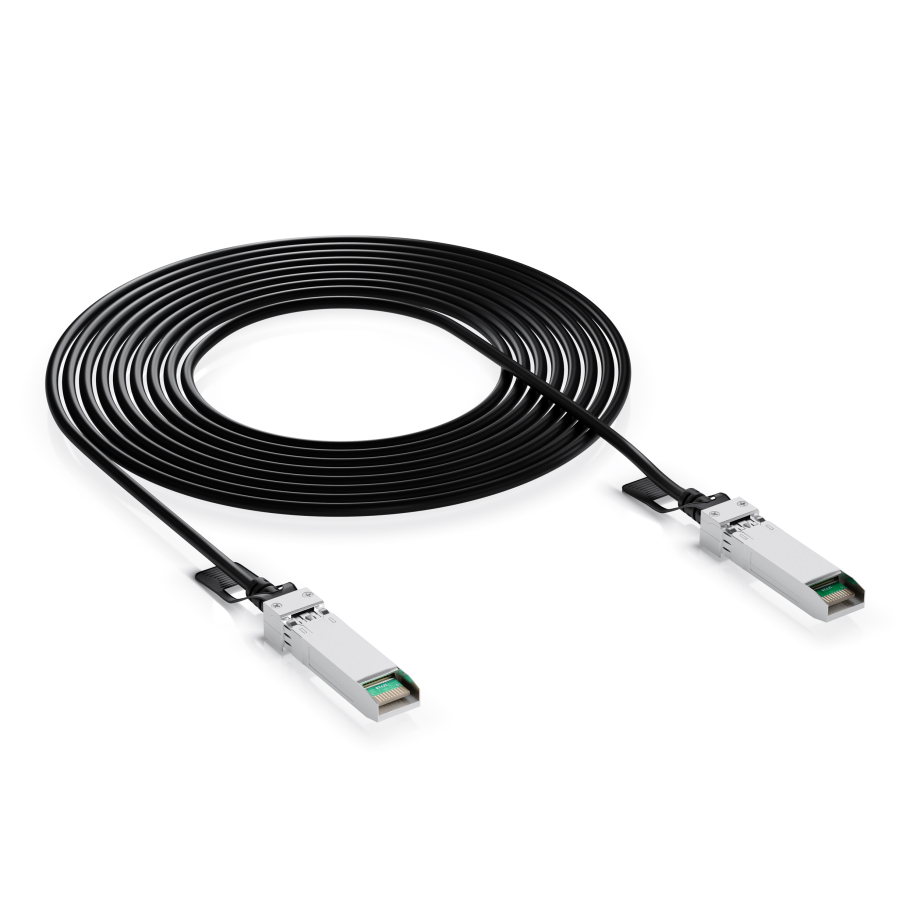

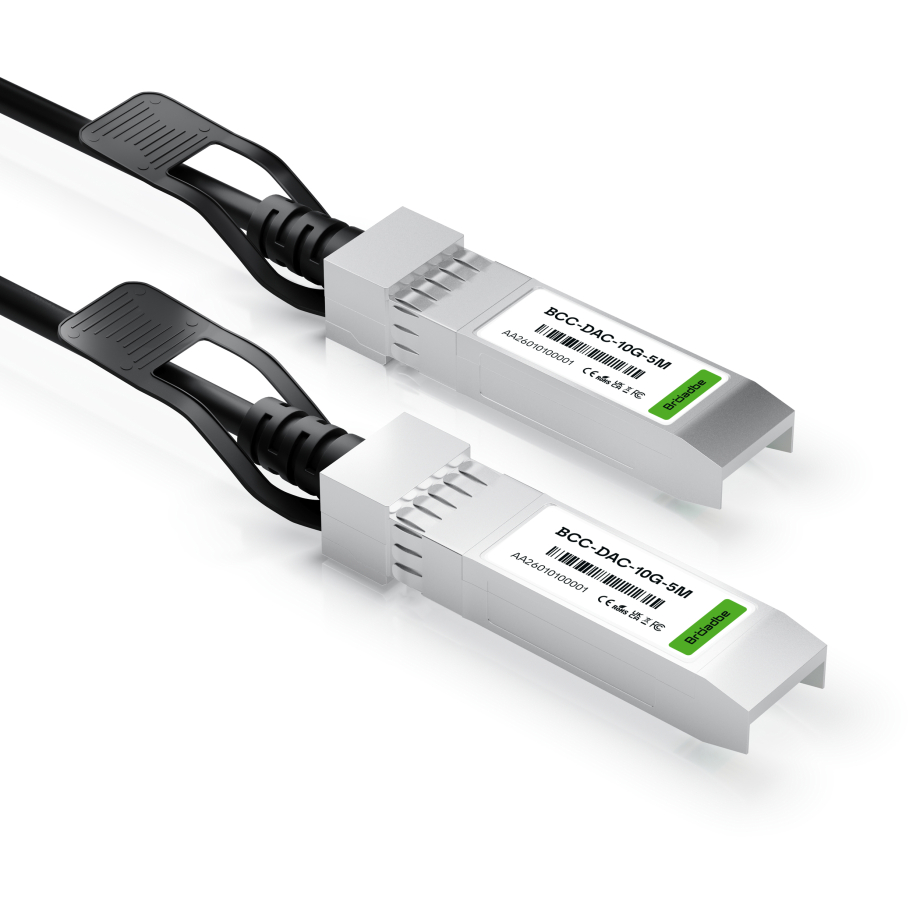

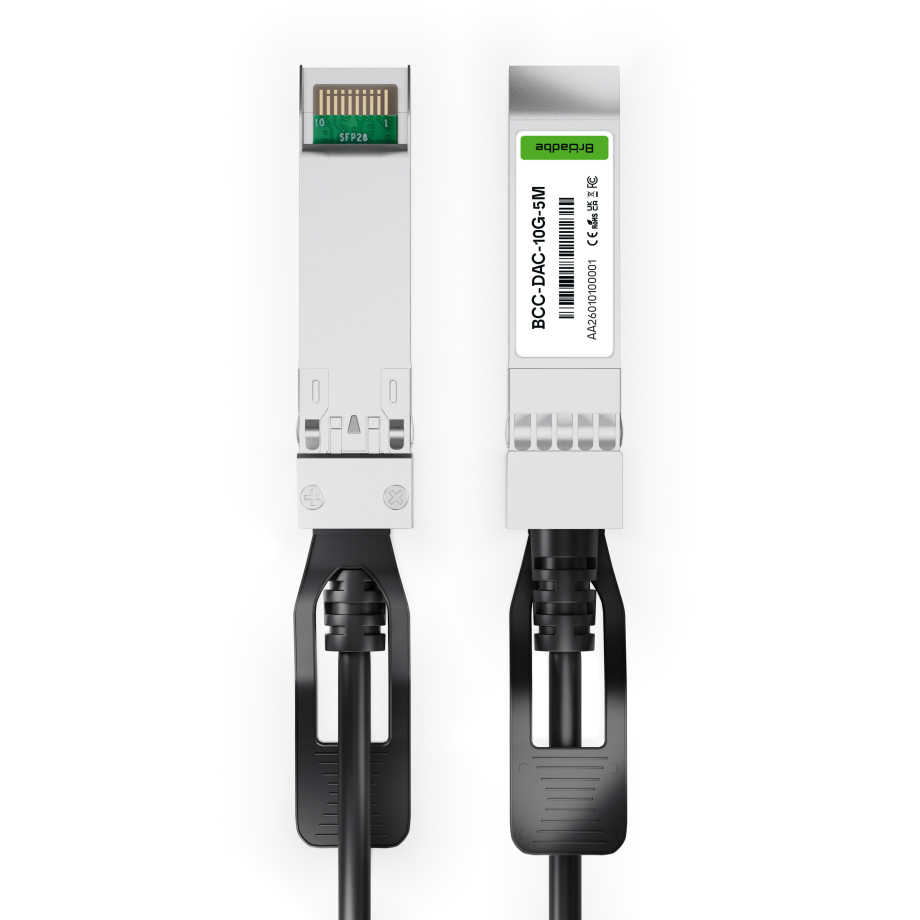

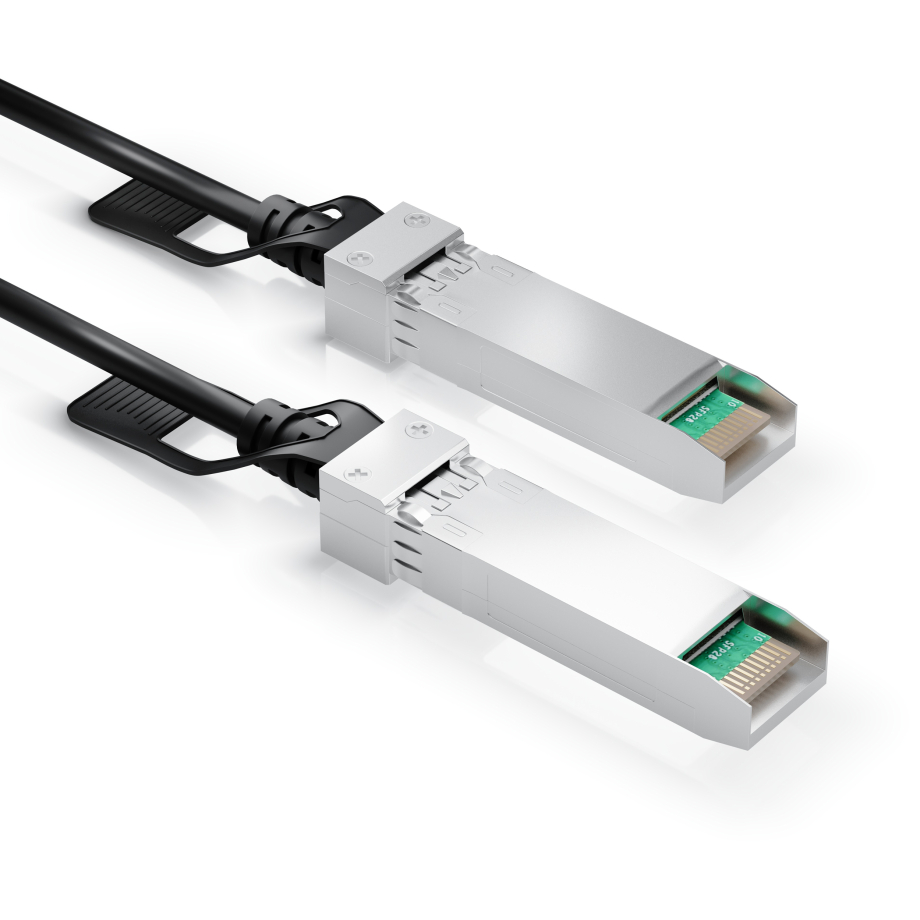

Broadbe Direct Attach Cable 10G 5m | High-Speed DAC Cable for Data Centers
- 10G Direct Attach Copper cable delivers fast, low-latency short-distance networking for switches, routers and servers; ideal for data center and enterprise Ethernet links.
- 5 m DAC cable supports plug-and-play installation with no extra configuration, helping you deploy reliable switch-to-switch, switch-to-server and storage connections quickly.
- Compatible with SFP+, SFP28 and QSFP28 interfaces, this high-speed copper cable offers a cost-effective alternative to optical transceivers for modern network setups.
- Built for stable signal transmission and low power consumption, the Broadbe DAC cable is optimized for data centers, enterprise networks and telecom environments.
- Available in 5 m length for adjacent-rack connections and high-speed aggregation links; suitable for short-distance 10G Ethernet interconnections.
15.55 €
In stock
?
15.55 €
In stock
?
Detailed description
High-Speed Direct Attach Copper (DAC) Cable Series
High-performance Direct Attach Copper (DAC) cables designed for reliable short-distance connections between switches, routers, and servers in data centers and enterprise networks. These cables provide a cost-effective, low-latency alternative to optical transceivers for high-speed networking links within racks or between adjacent racks.
The DAC cables use integrated transceiver modules connected by a high-quality copper cable, ensuring stable signal transmission, low power consumption, and excellent performance for modern Ethernet standards.
Key Features
- Supported data rates: 10G/ 25G/ 100G
- Ideal for switch-to-switch, switch-to-server, and storage connections
- Plug-and-play installation with no additional configuration required
- Fully compatible with SFP+, SFP28, and QSFP28 interfaces
- Optimized for data centers, enterprise networks, and telecom environments
Available Lengths:
0.1 m, 0.3 m, 0.5m, 1 m, 2 m, 3 m, 5 m
Typical Applications
- Data center top-of-rack switching
- Server and storage connectivity
- High-speed aggregation links
- Short-distance 10G/ 25G/ 100G Ethernet interconnections
Compatibility
These direct attach cables are compatible with networking equipment from the following brands: MikroTik, Ubiquiti, Cisco, Juniper, TP-Link, Netgear, D-Link, Zyxel, Supermicro, Ruckus, Ruijie, ZTE, Planet, Allnet, D-Link, Linksys, Compaq and others.
Technical Specs / Datasheet
Specifications
Cable & Connector
Cable Type
DAC
Connector
(2) SFP+
Max Data Rate
10Gbps
Cable Length
Conductor
Pure Copper
Jacket
PVC
Jacket Diameter
4.2 mm
Physical Parameters
Color
Black
Operating Temperature
0 °C to 70 °C
Environment
Indoor
Package Contains
Units
1 pcs
