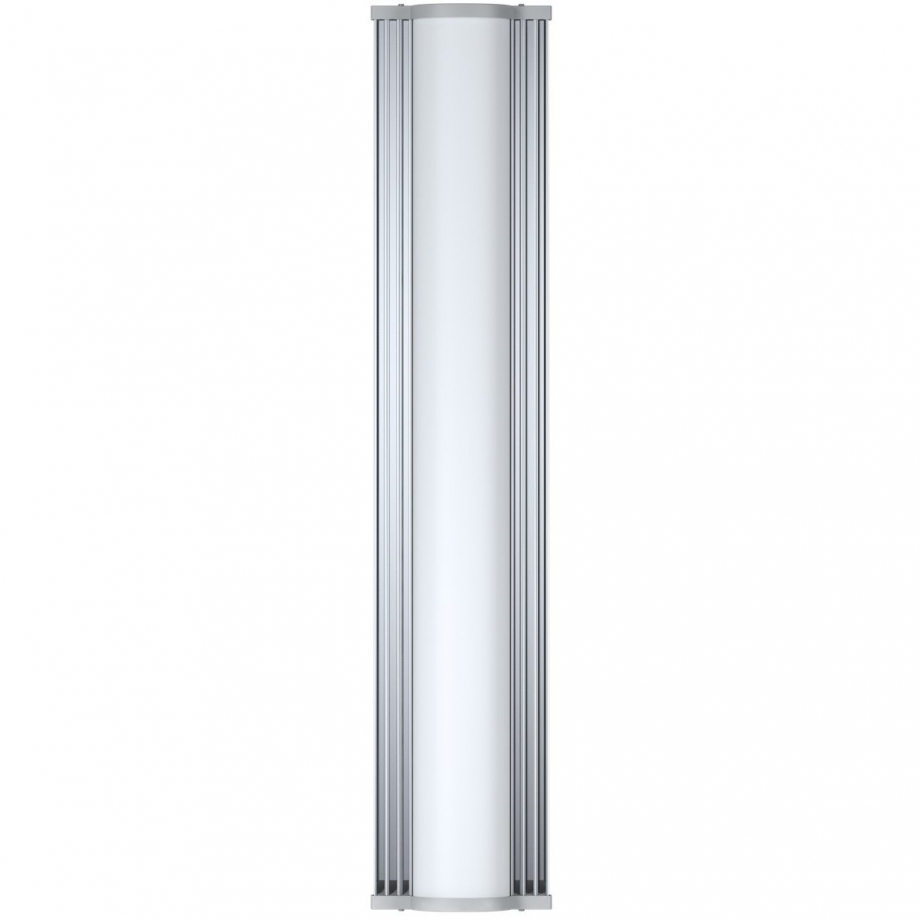

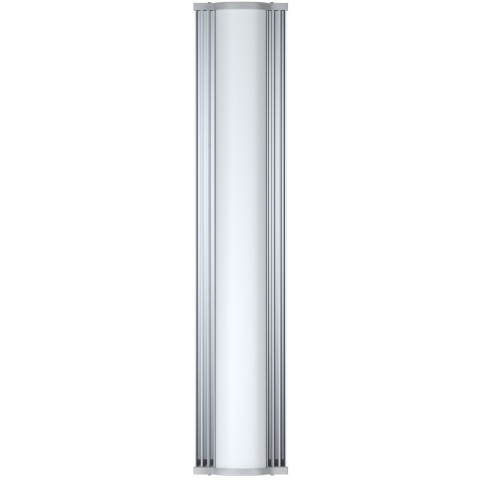

Array Sector Antenna 100°, 2x RP-SMA

out of stock
?
173.15
out of stock
?
173.15

Brand

RF Elements

Manufacturer part number

AS-5-20

Warranty
?

12 months

EAN

8588006459616

Available alternatives

QuMax XR All in

134.59 €

QuPanel LTE HP SISO, 10m cable

81.62 €67.00 €
-18%

QuPanel LTE HP SISO, 5m cable

77.54 €64.00 €
-17%

Detailed description

Introducing The New Array Sector

The new Array Sector series are superior patch array antennas optimized for excellent performance in sectorial coverage and dense cluster applications. The gain of Array Sector antennas remains very stable across an ultra-wide range of frequencies 5150-5850 MHz. VSWR values are excellent across the whole useful spectrum for maximum power delivered from a radio to the antenna.

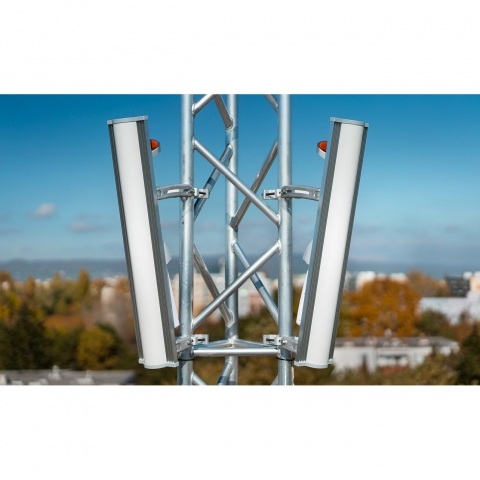

Optimized For Co-Location

Array Sector Antennas feature BackShield™, the patented structure that effectively mitigates side lobes in azimuthal plane and parasitic back radiation. Backshield™ significantly improves co-location capability in dense cluster deployments.

BackShield

BackShield™ is the patented frequency-selective surface that effectively attenuates back radiation and the side lobes in the azimuthal plane. BackShield™ is integrated into the antenna structure, so there is no need for aftermarket accessory shields.

Wide Platform Compatibility

Array Sector Antennas are compatible with all major radios with coaxial connectors (check datasheet for complete list). Array Sector Antennas also feature removable cover protecting the SMA connectors, another feature introduced by RF elements® that became an industry standard.

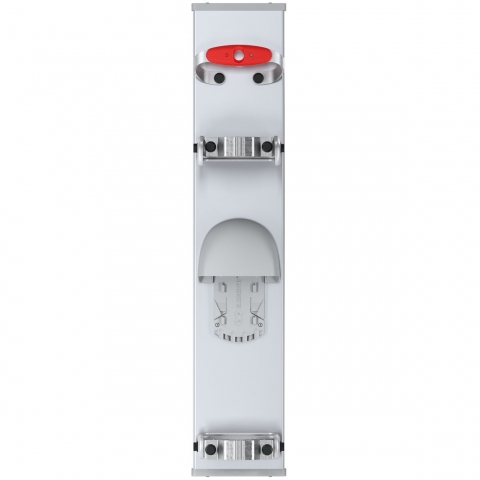

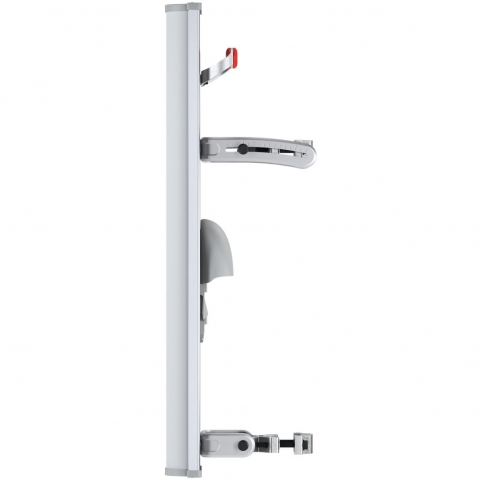

New Antenna Bracket

Array Sector Antennas feature an innovative mounting system composed of minimum parts for quick & easy assembly, installation, and alignment. Stainless steel hardware has black colored anti-friction surface coating to prevent seizing.

Durable Build

Solid extruded aluminium body enables Array Sector Antennas to endure any weather conditions. RF Elements uses materials of highest quality: extruded and stamped aluminium, surface coated stainless steel, UV resistant ABS plastic & high density polyethylene.
