ALFA Network AOA-4G-8F 4G LTE Outdoor Antenna 8dBi IP67 N-Female

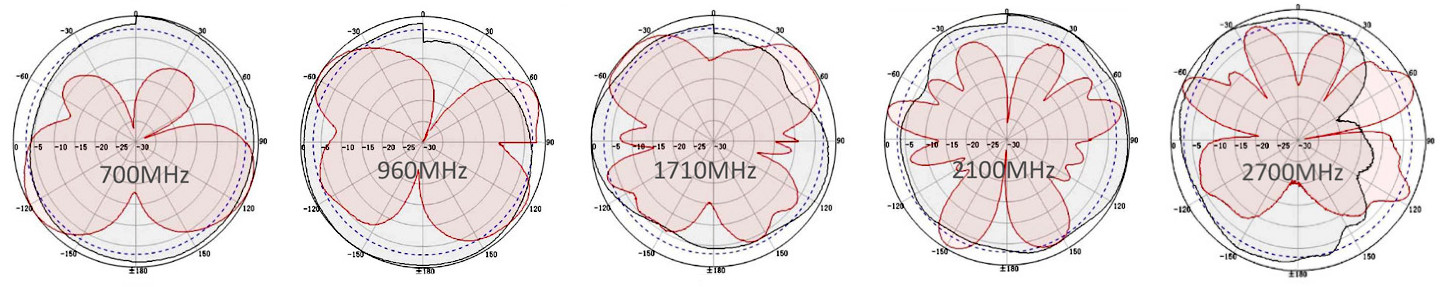

The AOA-4G-8F is an omnidirectional outdoor antenna operating across the 698–960 MHz and 1710–2700 MHz frequency ranges, with specified gain of 6 / 8 dBi. Its omnidirectional radiation pattern provides 360° horizontal coverage, while the 16° vertical beamwidth defines how the signal is distributed around the installation area and across the vertical plane. The antenna uses vertical polarization and has a VSWR below 1.5 with a 50-ohm impedance, establishing its main RF characteristics for compatible equipment. Maximum input power is rated at 100 W, giving a clear operating limit for connected RF systems. Together, these parameters describe the antenna’s electrical behavior and radiation characteristics across the stated operating ranges.

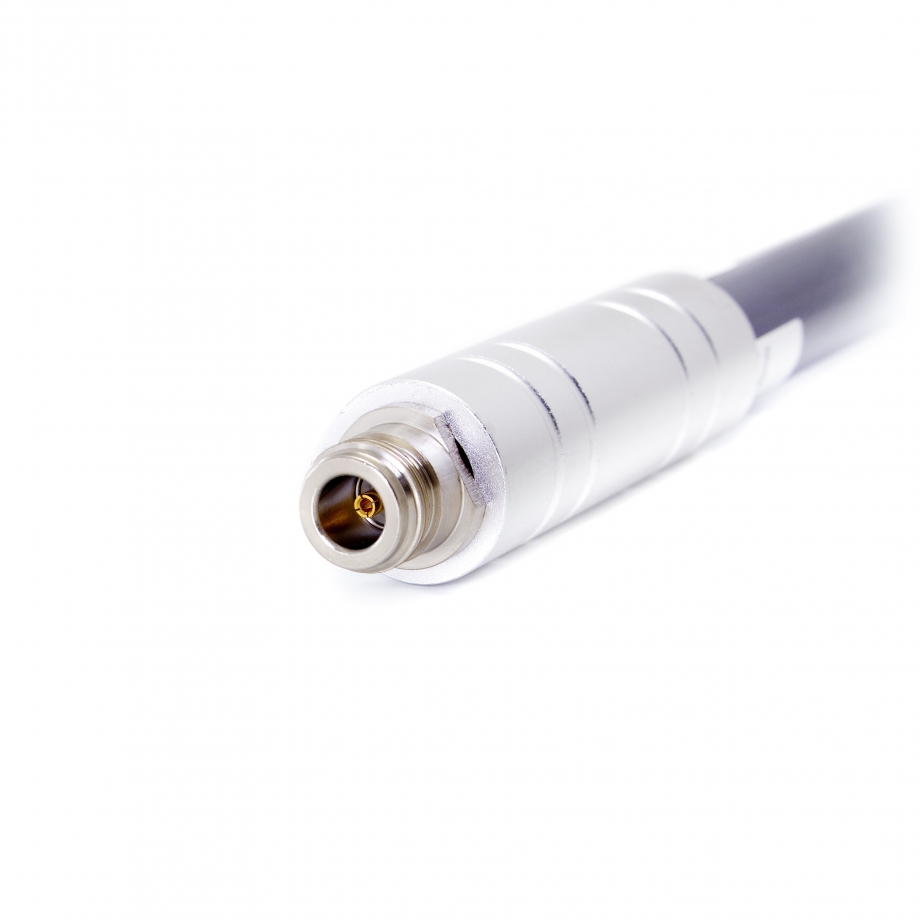

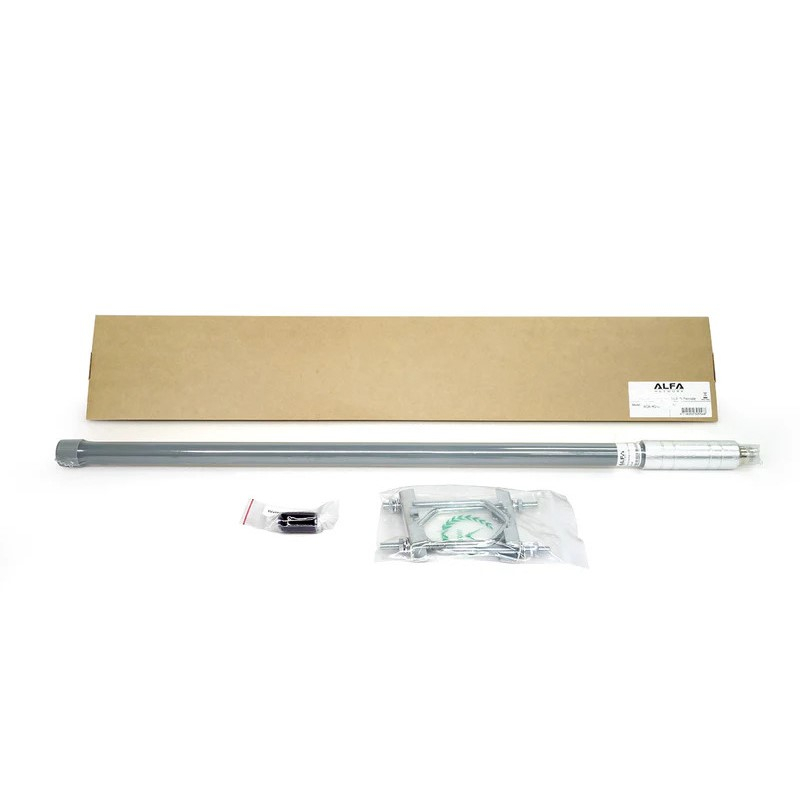

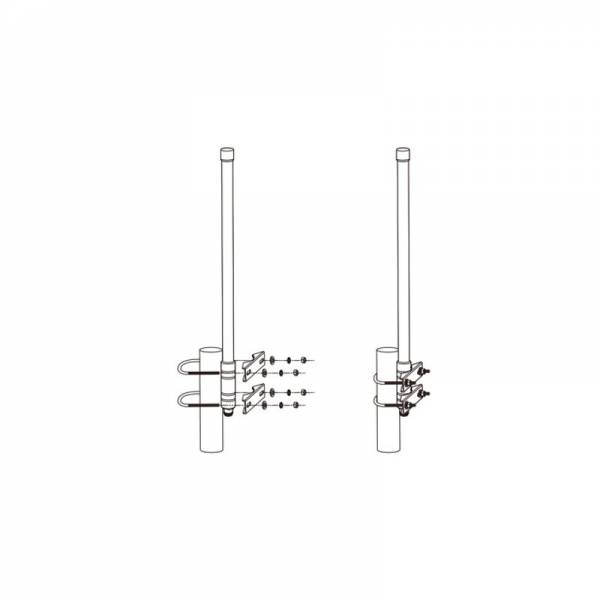

The antenna is equipped with an N Female connector and uses a fiberglass body suited to pole-mounted deployment. It supports installation on poles with diameters from 30 to 50 mm, providing clear mechanical requirements for placement. The slim cylindrical enclosure measures approximately 20 mm in diameter and 600 mm in length, with a listed weight of 650 g. Its operating temperature range extends from −40 °C to 70 °C, while the rated wind velocity is 60 m/s. These mechanical and environmental characteristics define the conditions to consider when selecting a mounting position and planning installation, while the compact diameter and pole-mount format make the antenna’s physical requirements straightforward to assess before connection to compatible RF equipment.
