4G LTE Outdoor Antenna 8dBi IP67 N-Male
in stock
?
30.03 €
30.03 €
Detailed description
The AOA-4G-8M is an omnidirectional 4G/LTE antenna from ALFA Network for outdoor use with IP67 enclosure protection. Operates in frequency bands 698-960 MHz SISO 1x1 with 6 dBi gain and 1710-2700 MHz SISO 1x1 with 8 dBi gain. Equipped with an N Male connector.

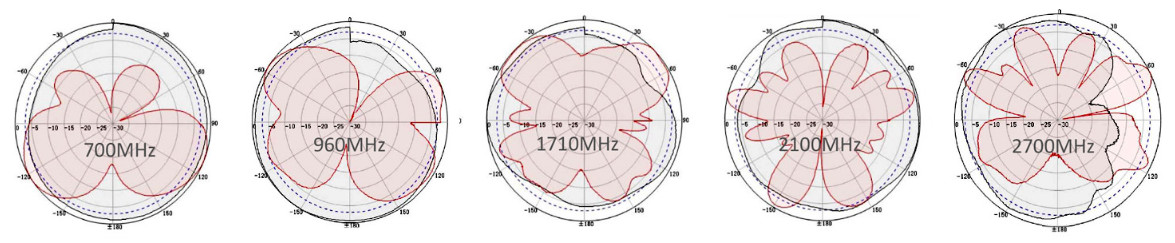

Frequency Diagram
Compatible products
Specifications
Mobile Network
Mobile Network Generation
Antenna
Antenna Design
Omni
Mobile Antenna Frequency Range & Gain
0.698 - 0.960 (GHz) 6 (dBi), 1.710 - 2.700 (GHz) 8 (dBi)
Mobile Antenna Gain
6 dBi, 8 dBi
Beamwidth
16 ° Vertical, 360 ° Horizontal
Polarization
Vertical
VSWR
< 1.5
Impedance
50 Ω
Maximum Input Power
100 W
Connectors
RF Connectors

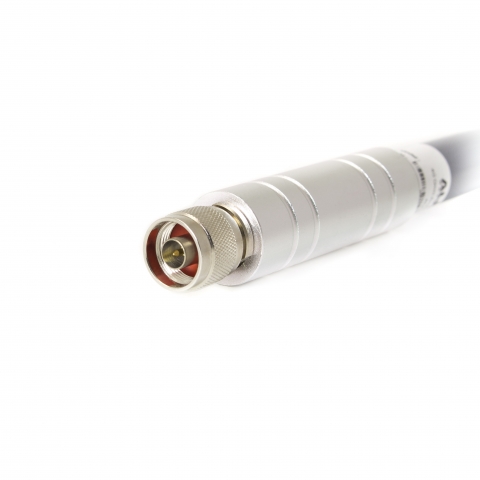

(1) N Male
Physical Parameters
Color
Grey
Material
Fiberglass
Ingress Protection Code
IP67
Dimensions
Ø20 x 600 mm
Weight
0.65 kg
Operating Temperature
-40 °C to 70 °C
Environment
Outdoor

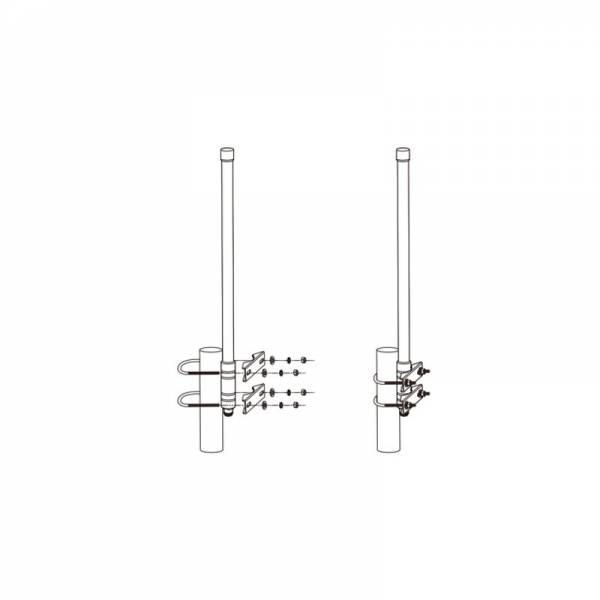

Mounting Method
Pole Mount
Rated Wind Velocity
60 m/s
