ALFA Network 4G LTE Outdoor Antenna 5dBi IP67 N Female

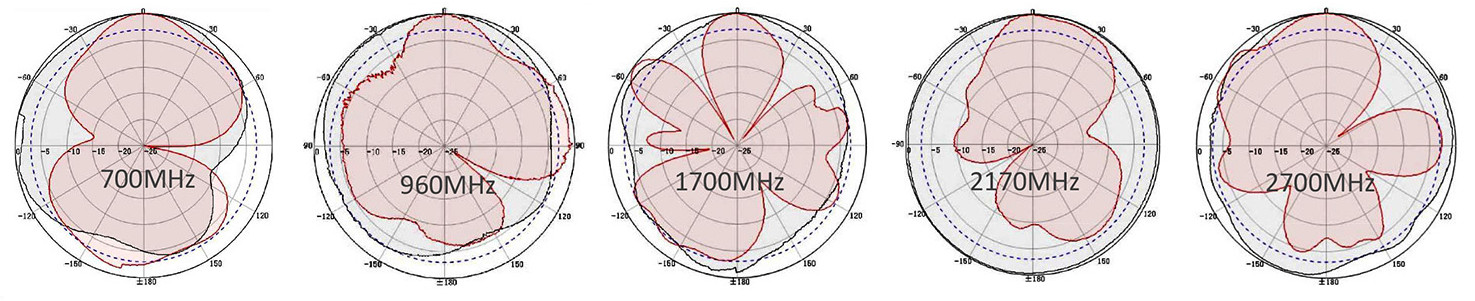

The AOA-4G-5F is an omnidirectional antenna for outdoor installation, operating across the 698–960 MHz and 1710–2700 MHz frequency ranges with specified gain of 4 / 5 dBi. Its omnidirectional radiation pattern provides 360° horizontal coverage, while the 35° vertical beamwidth defines how the signal is distributed in the vertical plane. The antenna uses vertical polarization and has a VSWR below 1.5 with a 50-ohm impedance, establishing its principal RF characteristics for compatible equipment. Maximum input power is rated at 100 W, providing a defined operating limit for connected RF systems. These electrical and radiation characteristics describe how the antenna operates across the stated frequency ranges without requiring precise directional alignment toward a specific azimuth.

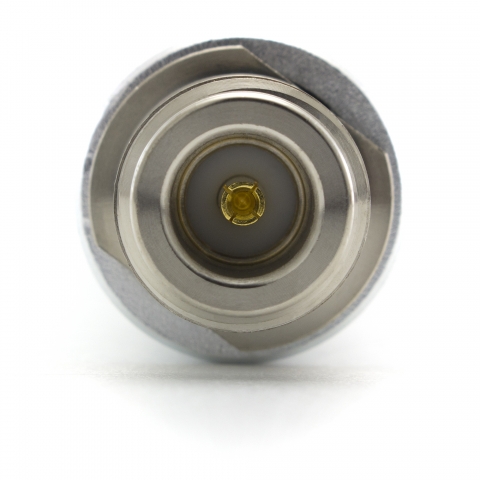

The antenna is equipped with an N Female connector and uses a fiberglass body for its pole-mounted form factor. It supports installation on poles with diameters from 30 to 50 mm, giving clear mechanical requirements for placement. The slim cylindrical enclosure measures approximately 20 mm in diameter and 320 mm in length, with a listed weight of 250 g. Its rated wind velocity is 60 m/s, while the stated operating temperature range is −40 to 70. These mechanical and environmental characteristics help define the conditions to consider when selecting a mounting location and planning installation. The combination of compact dimensions, pole mounting, and an integrated N Female interface also makes the antenna’s physical connection and placement requirements straightforward to evaluate before deployment with compatible RF equipment.
