QuMax Omni for TCR100

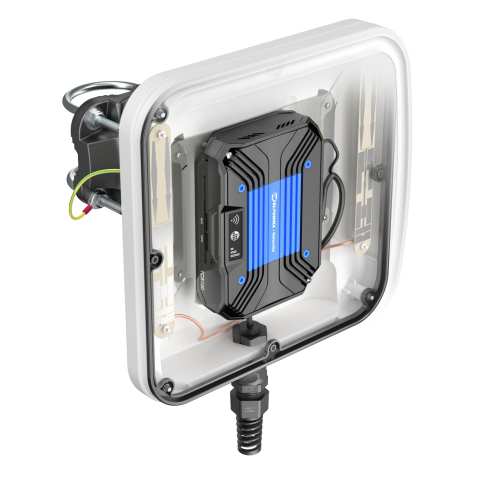

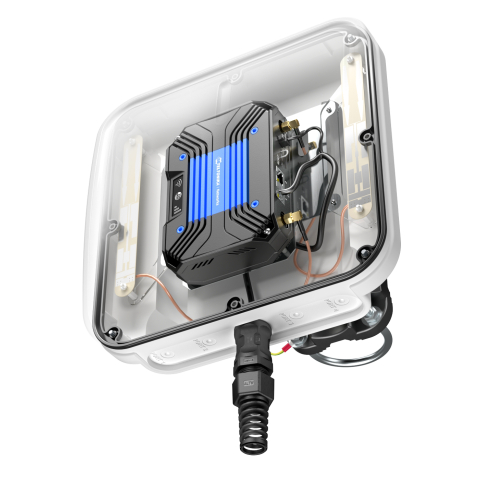

QuMax Omni for Teltonika TCR100 is an integrated outdoor antenna enclosure that combines a multi-band LTE omnidirectional antenna with space for installing a Teltonika TCR100 router in one unit. It is designed as an all-in-one solution where the router and antenna system are placed inside the same enclosure, helping create a compact outdoor installation without separating the router from its external antenna system. The antenna is matched with the Teltonika TCR100, making it suitable for deployments where the router and LTE antenna need to work as one integrated assembly.

The enclosure is intended for both mobile and fixed installations, including industrial, public, CCTV, hotspot, yacht, boat, camper, and RV applications. Its omnidirectional LTE antenna provides 360° horizontal coverage, which is useful where the direction of the signal source may vary or where precise antenna alignment is not practical. The LTE antenna operates across 0.694–0.96 GHz, 1.7–2.2 GHz, and 2.5–2.7 GHz frequency ranges, supporting multiple LTE and selected 5G-related bands. Gain reaches up to 6 dBi depending on the frequency range, while vertical polarization and 50 Ω impedance provide standard antenna characteristics for the integrated LTE system.

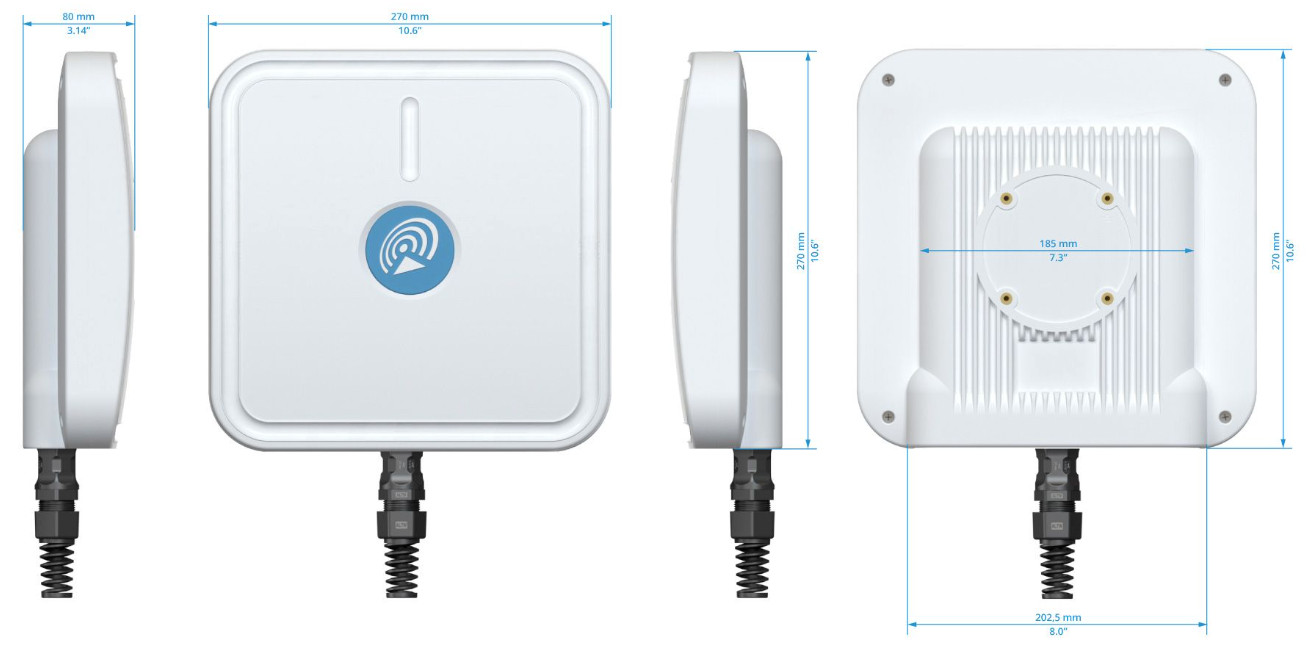

The enclosure is built for outdoor operation and has IP67 ingress protection, helping protect the installed router and antenna system in demanding weather conditions. Its operating temperature range from -40°C to 75°C supports deployment in outdoor locations exposed to cold, heat, and seasonal temperature changes. The housing is made from BS, aluminum, PTFE, and fiberglass, combining protective materials with a structure suitable for a compact outdoor router and antenna installation. With dimensions of 272 x 276 x 80 mm and a weight of 1.8 kg, the enclosure provides space for the Teltonika TCR100 while remaining manageable for wall, mast, or ceiling installation.

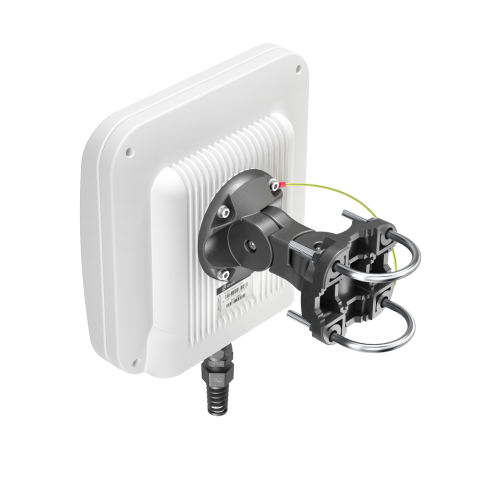

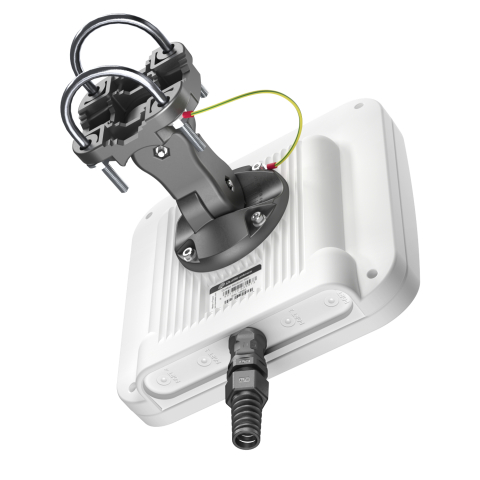

The RJ45 connector supports wired network connection through the enclosure, helping keep cabling organized within the outdoor assembly. The included mounting kit expands installation flexibility. It has a regulation range of ±30°, allowing the enclosure position to be adjusted during installation. The kit supports mast diameters from 25 to 65 mm and is made from polyamide with fiberglass and galvanized steel U-bolts. Its dimensions are 9.9 x 10.5 x 14.8 cm, and it weighs 0.87 kg. These mounting details allow the enclosure to be installed on different surfaces while keeping the router and antenna system integrated in one protected outdoor unit.
