QuMax Omni for RUTX50

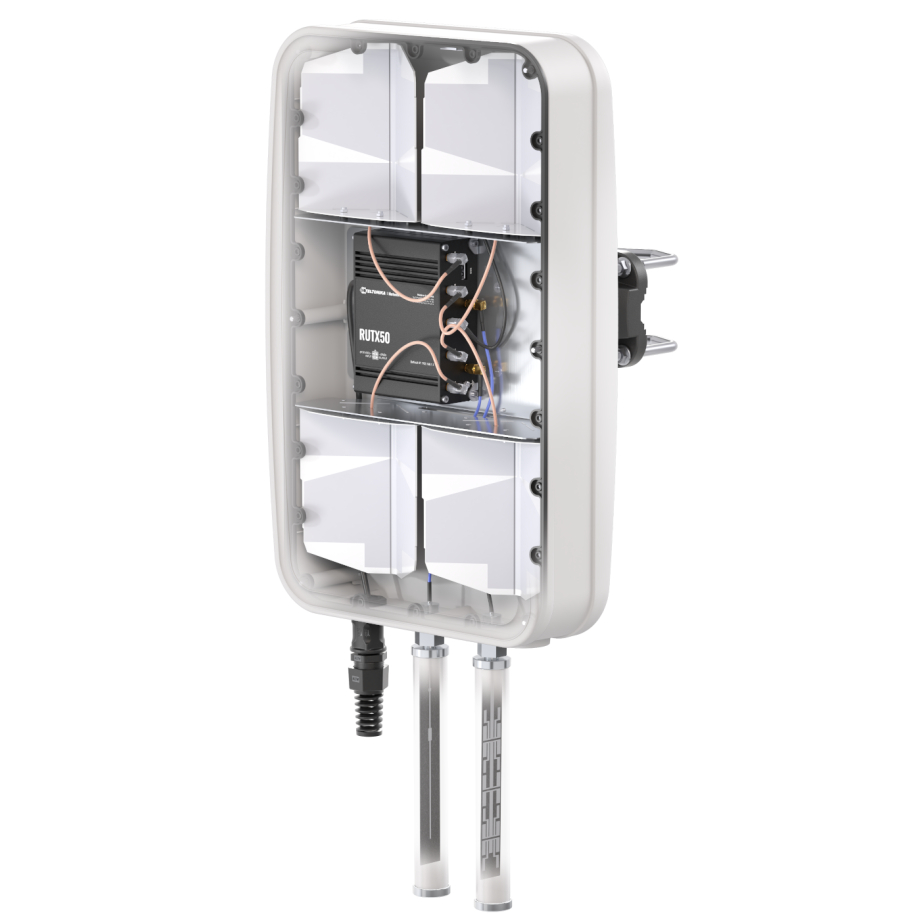

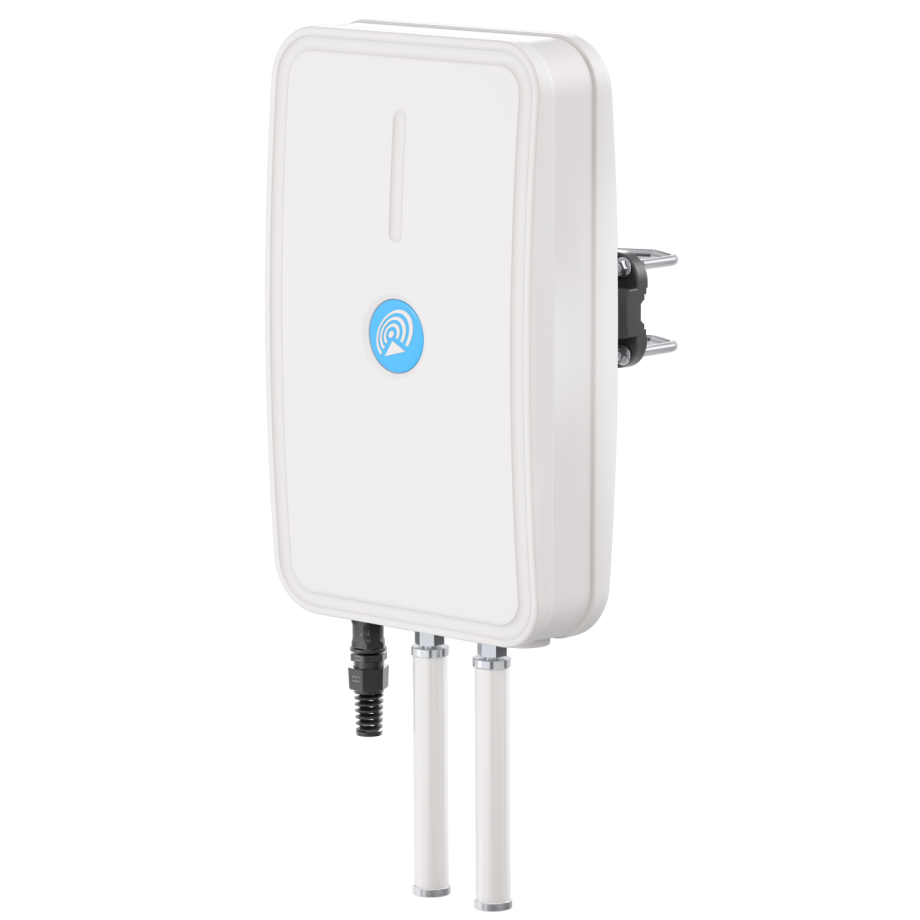

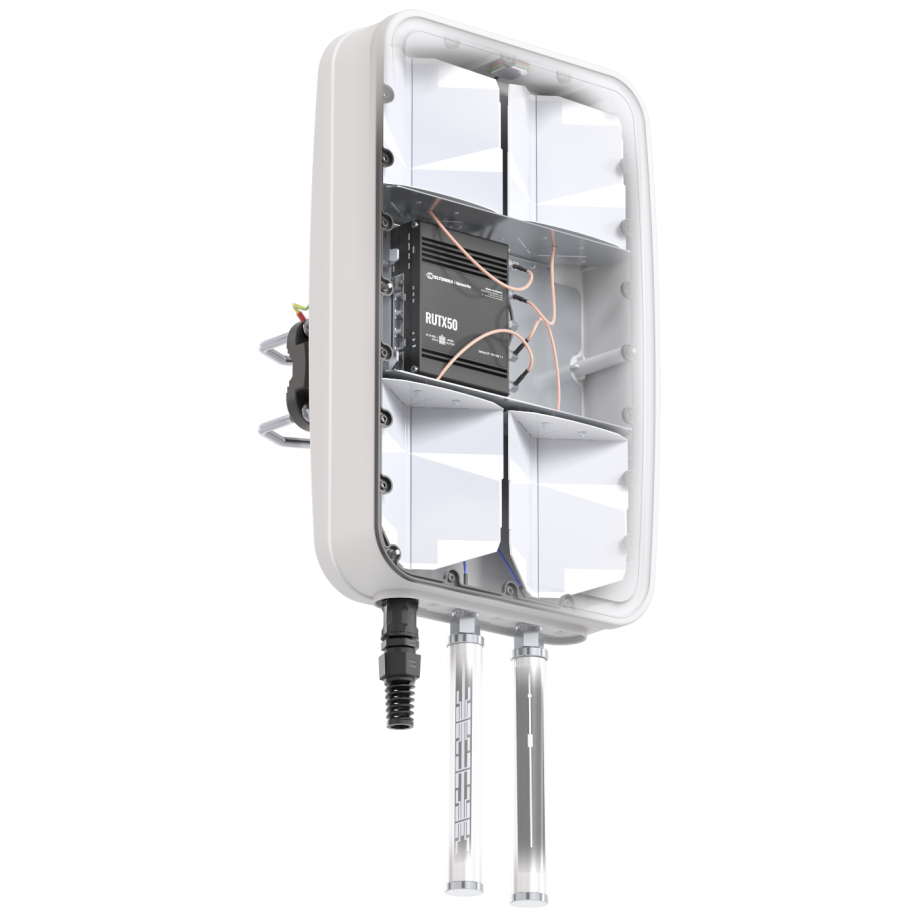

QuMax Omni for Teltonika RUTX50 is an integrated outdoor antenna system that combines a multi-band LTE and 5G omnidirectional MIMO 4x4 antenna, Wi-Fi antenna, GPS antenna, and an internal compartment for installing a compatible Teltonika router. It is designed for Teltonika RUTX50, RUTM51, RUTM54, RUTM55, and RUTM16, creating an all-in-one installation where the router and antenna system are placed inside the same outdoor enclosure. The cellular antenna covers a wide frequency range from 617 MHz to 6.0 GHz, supporting many LTE and 5G bands across low, mid, and higher frequency ranges.

This allows the connected router to operate with different mobile network bands through the integrated antenna system. The antenna does not support LTE Band 32 or the part of n77 above 3800 MHz, so these limitations should be considered when matching the device to a specific network environment. Its omnidirectional design provides 360° horizontal coverage, which is useful when precise antenna alignment is not practical. The system is recommended for moving applications such as trains, buses, yachts, and campers, and can also be used to improve signal quality in rural areas.

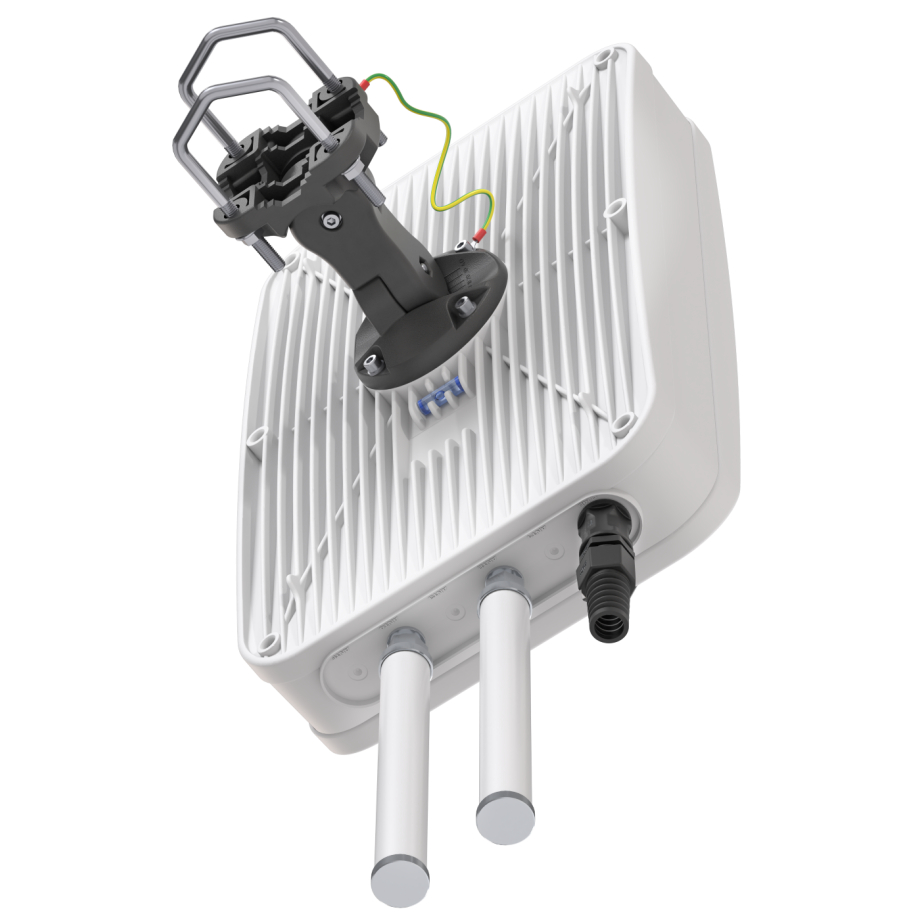

The housing is designed for outdoor installation and has an IP67 protection rating, allowing the router and antenna system to be used in demanding weather conditions. It operates in temperatures from -40°C to 70°C, supporting deployment in locations exposed to seasonal temperature changes. The enclosure is made from ABS, aluminum, PTFE, and fiberglass, combining protective materials with a structure suitable for outdoor networking installations. Installation is supported by the included bracket, which is rated for wind survival up to 220 km/h.

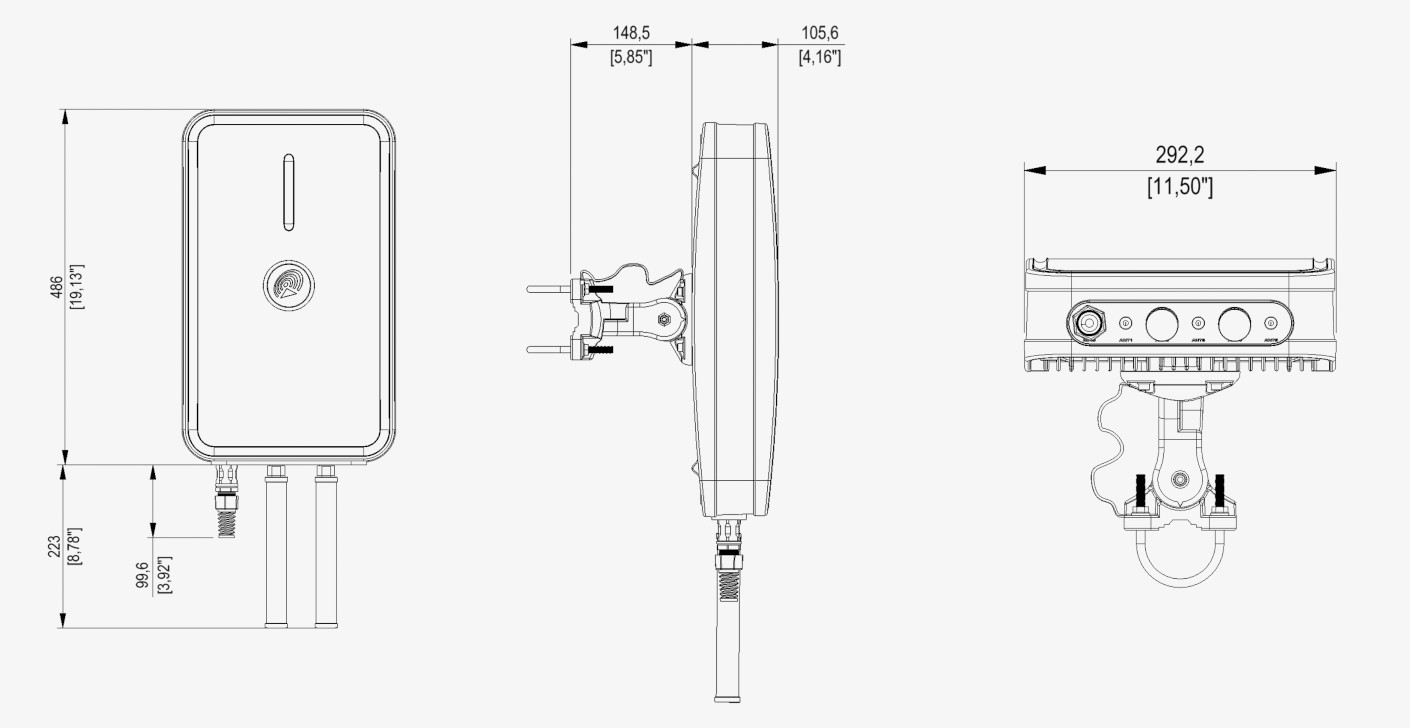

The mounting system fits mast diameters from 25 to 66 mm, allowing the antenna enclosure to be installed on common outdoor poles. With dimensions of 486.0 x 292.2 x 105.6 mm and a weight of 2.5 kg, the unit provides space for the compatible router while remaining suitable for structured outdoor mounting. The Wi-Fi antenna supports 2.40–2.50 GHz and 4.70–6.00 GHz operation, with vertical polarization and 50 Ω impedance, matching the electrical characteristics used by the cellular antenna system. Passive PoE support allows power and data to be arranged through network cabling where the installation is designed for it. The RJ45 connector provides the wired connection point for the enclosed router installation.
