Teltonika FMC230
Certified Teltonika Engineers
Official Teltonika Distributor
in stock
?
68.44 €
68.44 €
Certified Teltonika Engineers
Official Teltonika Distributor
Detailed description

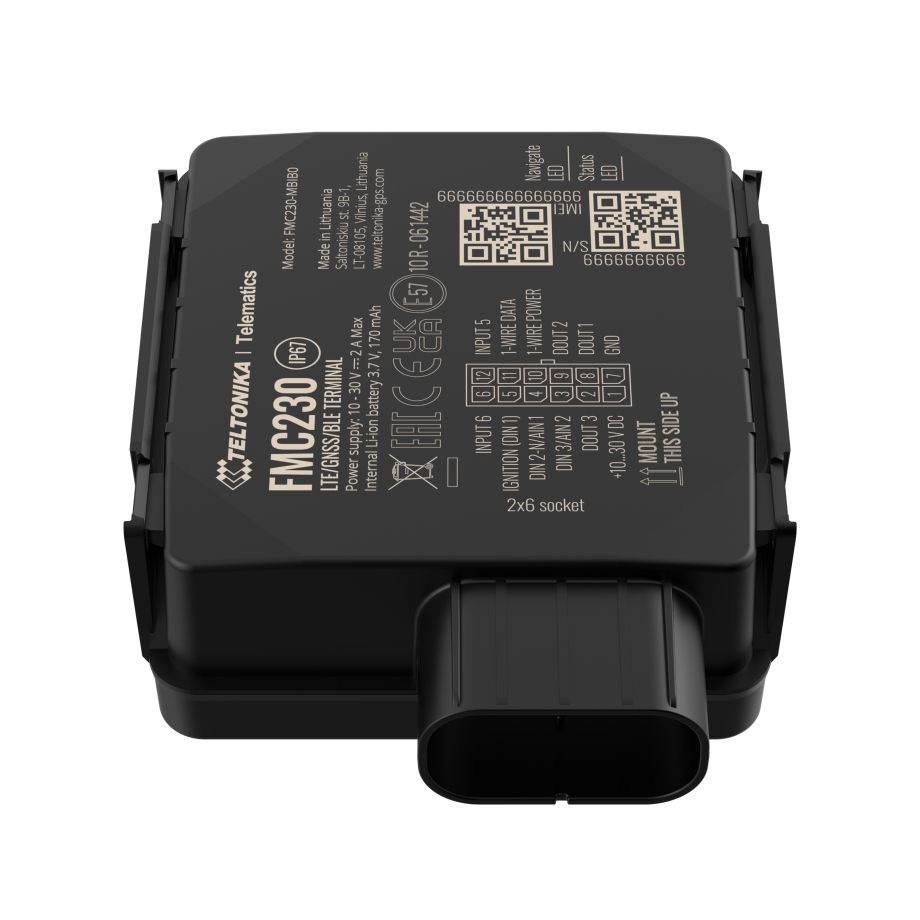

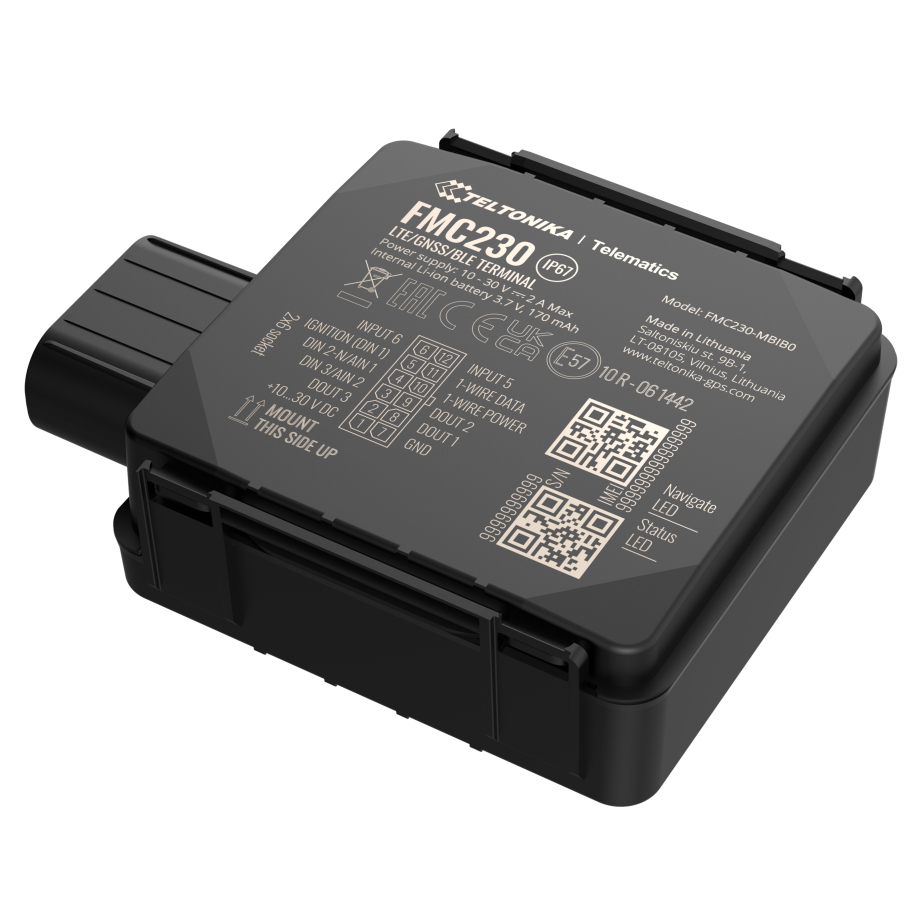

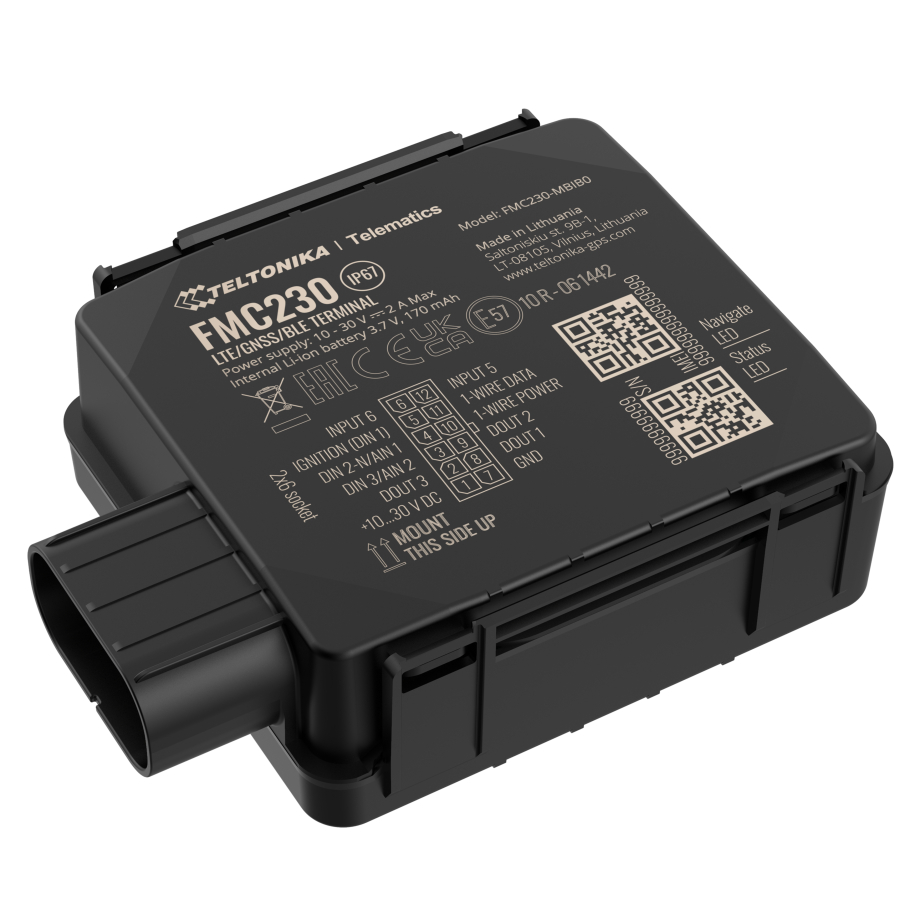

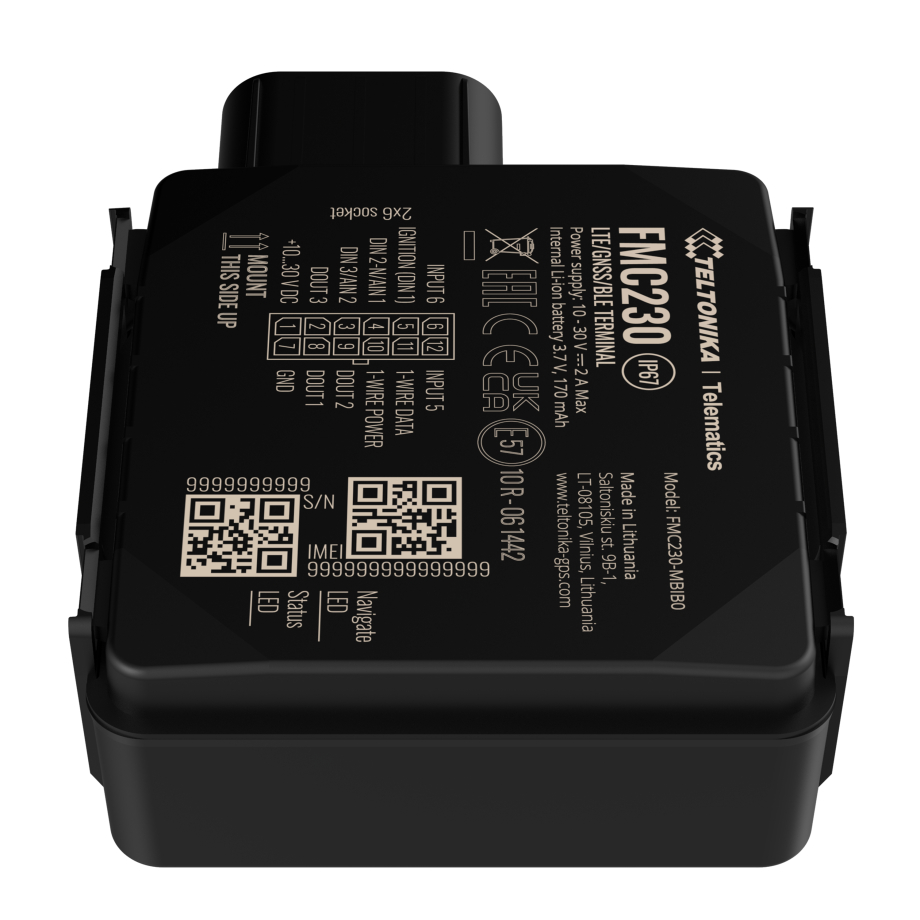

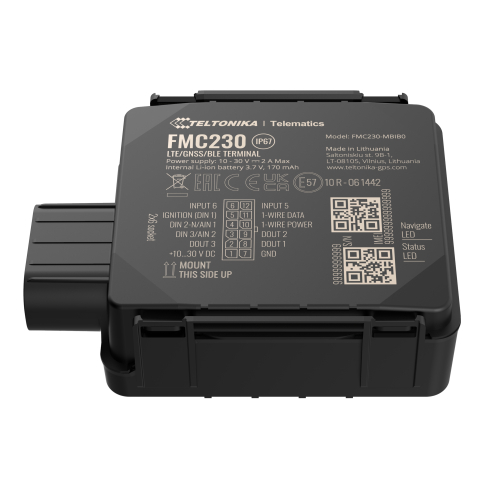

FMC230 is WATER AND DUST RESISTANT tracker with 4G (LTE Cat 1) network coverage including 2G (GSM) fallback compatibility. It comes equipped with internal GNSS, LTE antennas, configurable digital / analog / negative and impulse inputs, three DOUT outputs, Bluetooth connectivity, and backup battery. FMC230 developed on the existing Teltonika platform, therefore it keeps all the functionalities from FMC130 with an additional IP67 resistance to dust and water.
This tracker is dust tight and protected against the effects of a temporary immersion in water. It can be mounted inside and outside a vehicle without worries that high pressured water, mud or dusty environment will impact its operation or performance quality. This is particularly relevant for the industries where harsh conditions exist, such as agriculture, construction and mining, and more.

For starters, FMC230 features negative input which allows you to save precious integration time while connecting accessories like vehicle doors sensor, alarm buttons, seatbelt detection, and other similar sensors or accessories.
Additionally, the device has an integrated possibility to enable Impulse Input for precise fuel flow meter data reading. Impulse based fuel usage monitoring is much more accurate than a different type of fuel metering sensors, and it makes the FMC230 a perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment.

Technical Specs / Datasheet
Compatible products
Specifications
Mobile Network
Mobile Network Generation
2G (GSM), 4G (LTE)
LTE Category
Cat1 - 10Mbps/5Mbps
FDD LTE Frequency Bands
1 (2100MHz), 3 (1800MHz), 7 (2600MHz)
TDD LTE Frequency Bands
38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
SIM Card Slot
Micro-SIM, eSIM
Interfaces
Interface
(3) Digital Input, (3) Digital Output, (2) Analog Input, (1) Negative Input, (2) Impulse Input
Communication Interface
1-Wire, CAN adapters support
Management
Bluetooth
Bluetooth
4.0 LE
Tracking
GNSS
GPS, GLONASS, BeiDou, Galileo, QZSS
Software
Eco driving, Fuel monitoring digital, Crash detection, Towing detection
Sensors
BLE Sensors/ Beacons, Bluetooth temperature and humidity sensor, 1-wire TTJ temperature sensor, Accelerometer
Authorized Driving
iButton reader
Power
Supported Input Voltage
10 - 30 V DC
Battery Type
Li-Ion
Battery
170 mAh 3.7 V
Internal Battery Energy
0.63 Wh
Physical Parameters
Color
Black
Ingress Protection Code
IP67
Dimensions
85 x 67 x 26 mm
Weight
0.055 kg
Operating Temperature
-20 °C to 85 °C
