ALFA Network AOA-4G-5W-NM 4G LTE Outdoor Omni Antenna 5dBi Wall Mount N Male

The AOA-4G-5W-NM is an outdoor wall-mount omnidirectional antenna for 4G LTE applications, operating across the 698–960 MHz, 1710–2170 MHz, and 2500–2700 MHz frequency ranges. Its omnidirectional radiation pattern distributes coverage around the antenna without requiring precise directional alignment. Gain is specified at 4 dBi for 698–960 MHz, 5 dBi for 1710–2170 MHz, and 4 dBi for 2500–2700 MHz, providing defined performance across the supported bands. The antenna has a VSWR of no more than 2.0 and a 50-ohm impedance, establishing its main RF characteristics for connection to compatible equipment.

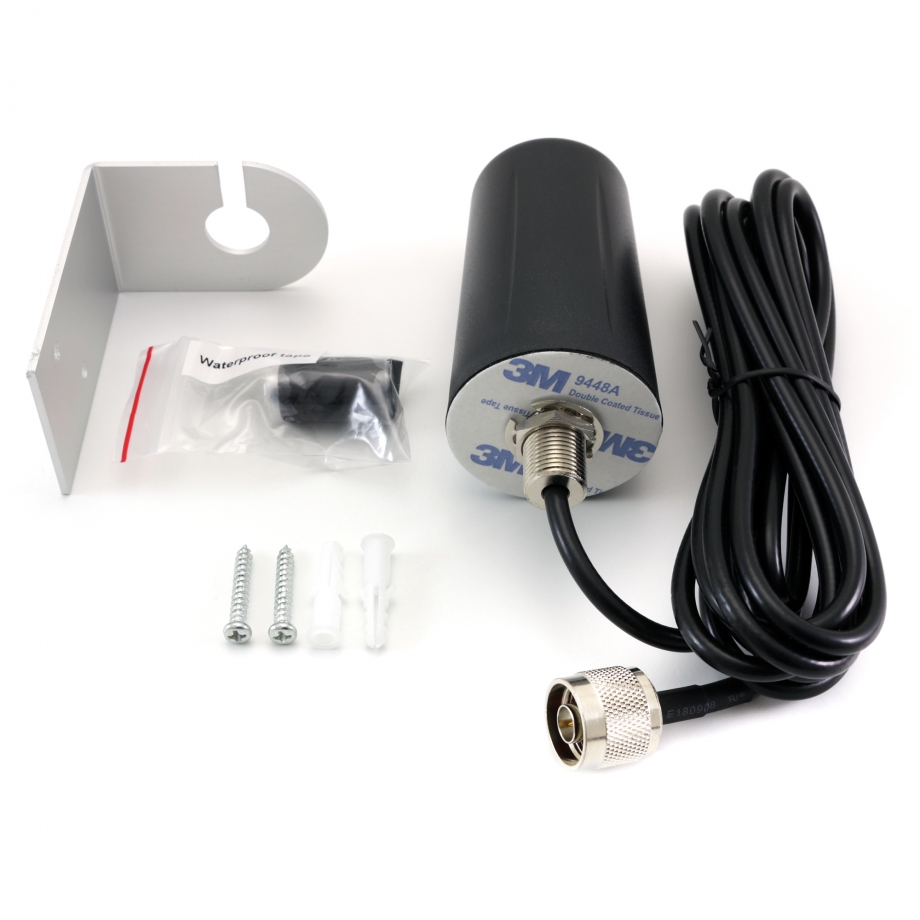

The antenna is supplied with a 3 m LMR195 cable terminated with an N Male connector, giving additional flexibility when positioning it relative to connected RF equipment. Its compact enclosure measures approximately 48 mm in diameter and 83 mm in height, with a listed weight of 220 g, while the wall-mount format supports fixed outdoor installation. The specified operating temperature range extends from −40 °C to 80 °C, and humidity is rated at 95% at 25 °C. These environmental limits define the conditions to consider when selecting a mounting location and planning deployment. Together, the compact form, integrated cable, wall-mount configuration, and omnidirectional radiation pattern make the physical and RF installation requirements straightforward to evaluate.
