QuSpot for RUT241/240/200/230

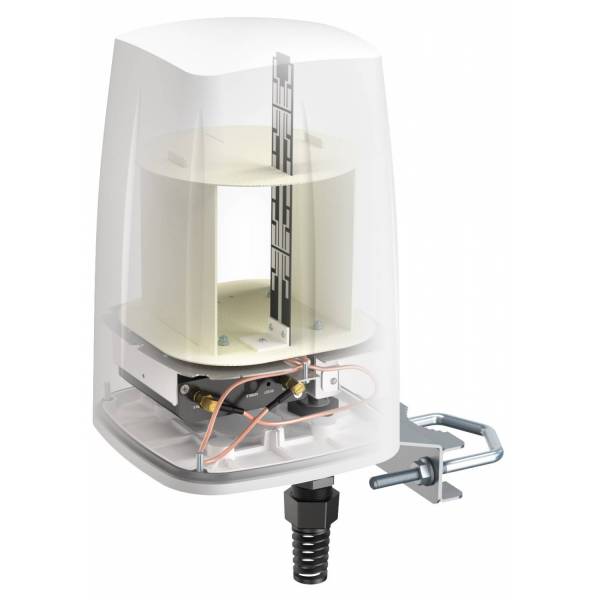

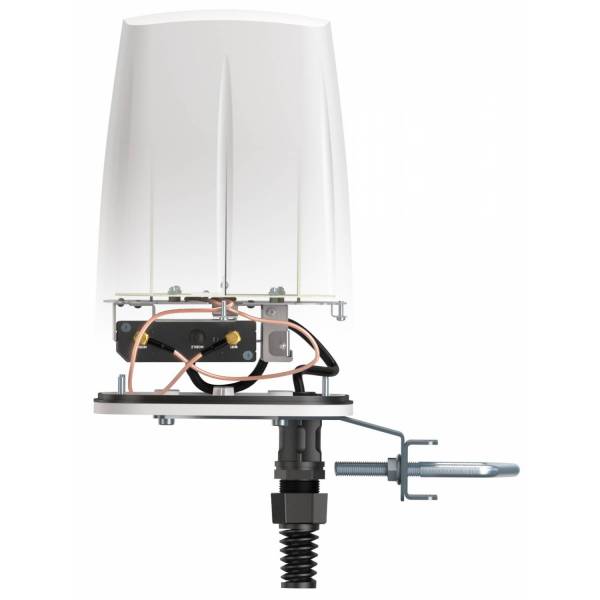

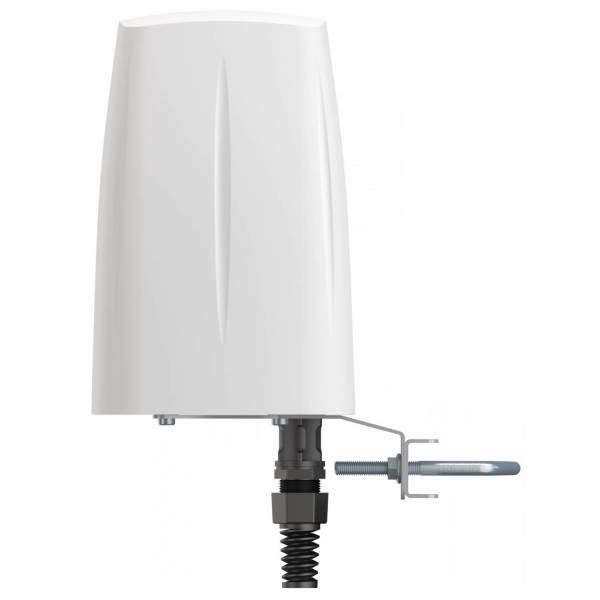

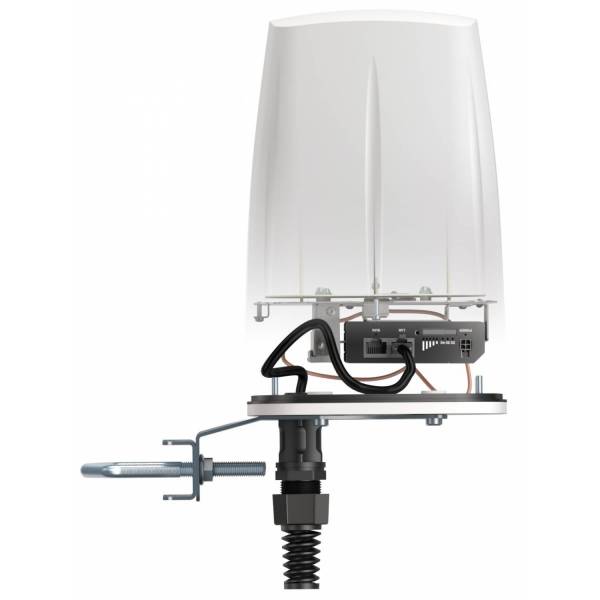

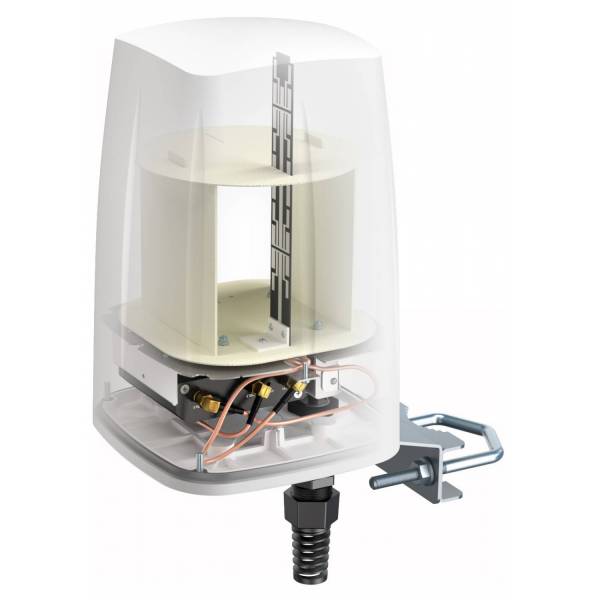

QuSpot for RUT2xx is an outdoor antenna enclosure that combines multi-band 5G/LTE antennas, an embedded Wi-Fi antenna, and space for installing a compatible Teltonika RUT2xx router in one integrated unit. It is designed for Teltonika RUT281, RUT260, RUT261, RUT241, RUT240, RUT230, and RUT200 routers, creating a compact installation where the router and antennas are housed together rather than arranged as separate outdoor components. The device uses omnidirectional antenna design for both mobile network and Wi-Fi connectivity. This allows signal coverage around the enclosure, which is useful in applications where the direction of the nearest signal source may vary or where the installation environment does not allow precise antenna alignment.

The 5G/LTE antenna supports a broad operating range from 0.6 to 6.35 GHz and is intended for multi-band use across supported LTE and 5G bands. The integrated Wi-Fi antenna covers 2.4–2.5 GHz and 5.0–7.2 GHz ranges, supporting dual-band Wi-Fi operation from the same outdoor housing. Typical use cases include mobile and fixed outdoor installations such as CCTV systems, hotspots, industrial areas, campervans, and ships.

The enclosure is built for outdoor deployment, with IP68 ingress protection to help protect the installed equipment against environmental exposure. Its operating temperature range from -40°C to 80°C supports use in demanding weather conditions, making the unit suitable for locations where the antenna and router must remain outside throughout the year. The housing uses ABS, aluminum, and PTFE materials, combining a protected enclosure with integrated antenna elements and mounting hardware. Installation is supported by wall or mast mounting. The mast mounting range covers diameters from 25 to 66 mm, allowing the device to be attached to common outdoor mounting structures.

With dimensions of 160 x 160 x 240 mm and a weight of 1.5 kg, the unit is compact enough for practical placement while still providing space for the compatible router inside the enclosure. The RJ45 connector type supports cable connection through the enclosure, helping keep the router installation contained in a single outdoor assembly. The antenna system uses vertical polarization and 50 Ω impedance for both 5G/LTE and Wi-Fi antennas. Its 360° azimuth beamwidth supports omnidirectional operation, while the integrated design helps keep the router and antennas matched within one complete outdoor solution.
