QuSpot for RUT951/950/901/900

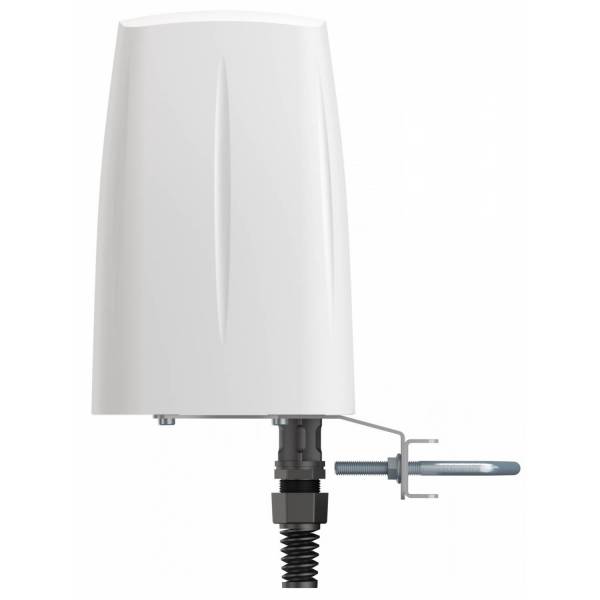

QuSpot for Teltonika RUT951/RUT950/RUT901/RUT900 is an outdoor antenna enclosure that combines multi-band 5G/LTE omni antennas, Wi-Fi omni antennas, and space for installing a compatible Teltonika router in one integrated unit. It is designed for use with Teltonika RUT951, RUT950, RUT901, and RUT900 routers, creating a complete installation where the router and antennas are housed together instead of being mounted as separate outdoor components. The antenna system is intended for mobile and fixed installations, including industrial sites, CCTV systems, hotspots, yachts, boats, campers, and RVs. Its omnidirectional design supports signal reception and distribution around the enclosure, which is useful when the device must operate without precise directional alignment.

The 5G/LTE antennas cover a broad 0.6 to 6.35 GHz range, supporting operation across many LTE and 5G bands. This wide-band design makes the enclosure suitable for router deployments that may need to work with different mobile network frequency ranges. The integrated Wi-Fi antennas support both 2.4 GHz and 5 GHz operation. By combining cellular and Wi-Fi antennas with router space inside the same enclosure, the device provides a compact outdoor solution for installations where neat mounting and integrated antenna placement are important.

The enclosure is built for outdoor use and has an IP68 ingress protection rating, helping protect the installed router and antenna system in demanding environmental conditions. Its operating temperature range from -40°C to 80°C supports year-round installation in locations exposed to heat, cold, and changing weather. The housing is made from ABS, aluminum, and PTFE, combining protective enclosure materials with an integrated antenna structure. Installation is supported by a wall or mast mounting system. The mast mounting range covers diameters from 25 to 66 mm, allowing the unit to be attached to common outdoor mounting poles.

With dimensions of 160 x 160 x 240 mm and a weight of 1.5 kg, the enclosure remains compact while still providing internal space for the compatible Teltonika router. The RJ45 connector type supports wired connection through the enclosure, and passive PoE support is included for installations where power and data delivery need to be arranged through the network cabling infrastructure. Both the 5G/LTE and Wi-Fi antennas use vertical polarization and 50 Ω impedance. Their 360° azimuth beamwidth supports omnidirectional coverage, while the integrated layout helps keep the router and antennas matched within one outdoor-ready assembly.
