3G/4G LTE, GPS & Wi-Fi Combo Outdoor Antenna IP67

The JCB062 is a combined GPS and GSM antenna that places satellite positioning and cellular connectivity in one compact screw-mounted housing within a unified external assembly. Its GPS section operates at 1575.42 MHz with right-hand circular polarization, while the integrated low-noise amplifier provides 28 ± 2 dB gain to strengthen received navigation signals before they reach the connected device. A noise figure below 1.5 dB supports efficient signal amplification, and the antenna accepts a 2.2 to 5 V DC supply while drawing less than 15 mA. The GSM section covers 824–960 MHz and 1710–2170 MHz, using linear polarization and 2.0 dBi gain for communication across the stated cellular frequency ranges.

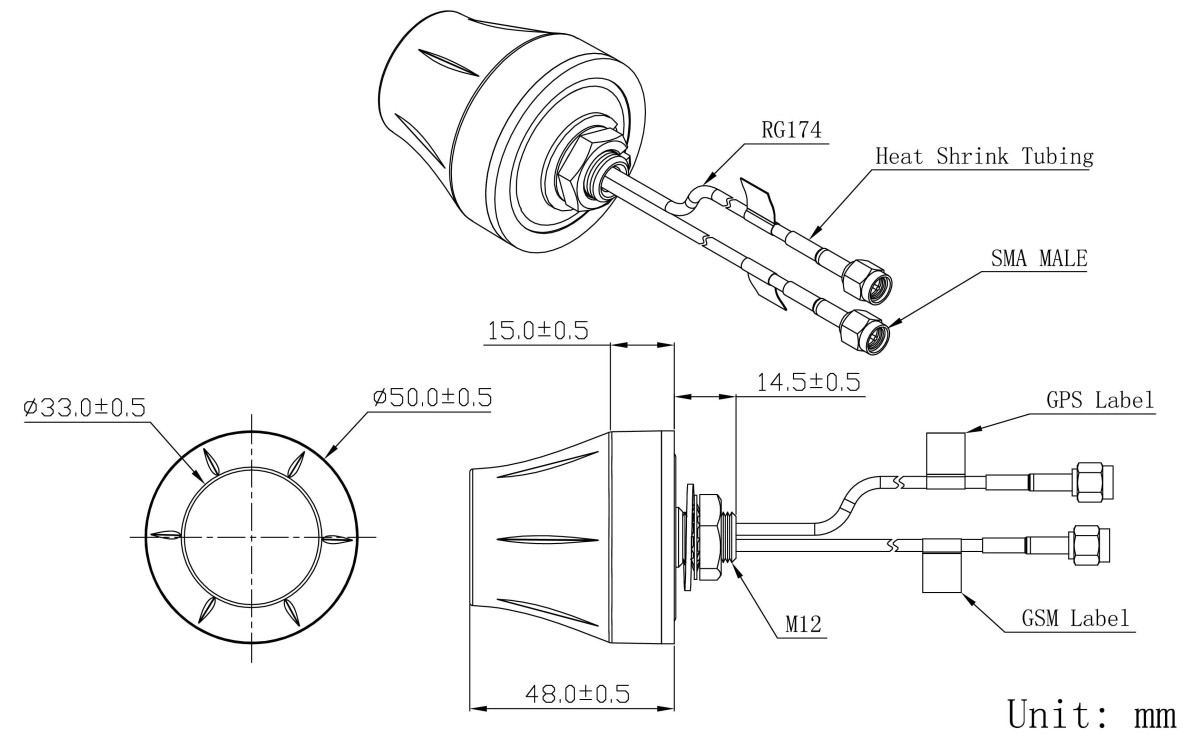

Built from ABS and fitted with RG174 cables, the antenna is intended for fixed installation through a screw mount. Connector options include SMA, MCX, FAKRA, or other configurations, allowing the cable termination to be matched to the target equipment. The housing measures approximately 50 mm across and 48 mm high, helping it fit installations that benefit from combined GPS and GSM reception. It is specified for operation from -40 °C to +85 °C and relative humidity up to 95%. IP67 protection applies to the enclosure, excluding the cable outlet, while the stated vibration resistance supports use in installations exposed to regular mechanical movement. RoHS compliance further confirms that the product meets the listed environmental requirement.
