Brand
Manufacturer part number
PR1KCO28
Warranty
?
12 months
EAN
0708747439779
Teltonika LTE/GPS/GLONASS/Wi-Fi Combo Antenn 3m
Certified Teltonika Engineers
Official Teltonika Distributor
in stock
?
33.80 €
33.80 €
Certified Teltonika Engineers
Official Teltonika Distributor
Detailed description

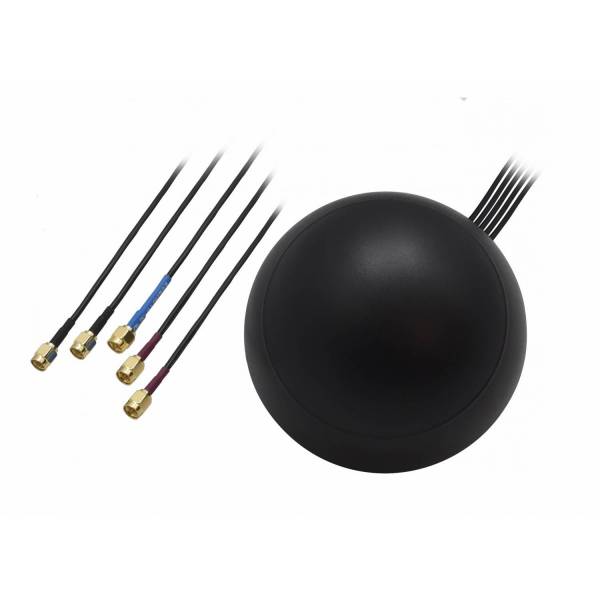

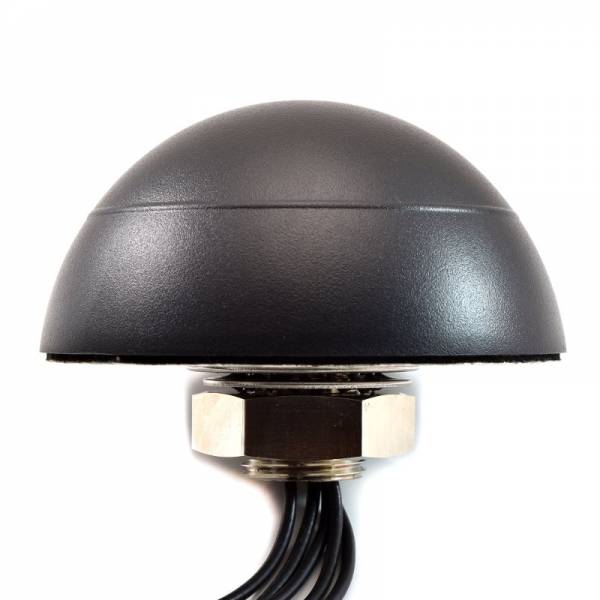

PR1KCO28 is a combined GPS + GLONASS + LTE MIMO + Wi-Fi MIMO antenna. The operating frequency range of the GNSS antenna is 1575-1610 MHz. The LTE MIMO antenna works in the frequency range 698-960 / 1710-2690 MHz with 3 dBi gain, but the Wi-Fi MIMO antenna works in the frequency range 2400-2483 / 4900-5825 MHz with 2 dBi gain. The antenna is protected from dust and water according to the ingress protection rating IP65. PR1KCO28 is equipped with five high-frequency coaxial RG174 cables. Each cable is 3 m long. Mounting method: screw.
Technical Specs / Datasheet
Compatible products
Specifications
Mobile Network
Mobile Network Generation
Antenna
Antenna Design
Roof
Wireless Antenna Frequency Range & Gain
2.4 - 2.483 (GHz) 2 (dBi), 4.9 - 5.825 (GHz) 2 (dBi)
Mobile Antenna Frequency Range & Gain
0.698 - 0.96 (GHz) 3 (dBi), 1.71 - 2.69 (GHz) 3 (dBi)
Mobile Antenna Gain
3 dBi, 3 dBi
Polarization
Linear
GPS Antenna Frequency Range & Gain
1575.42 MHz 2 dBic (Zenith)
Cable Length
3 m
VSWR
< 3
Impedance
50 Ω

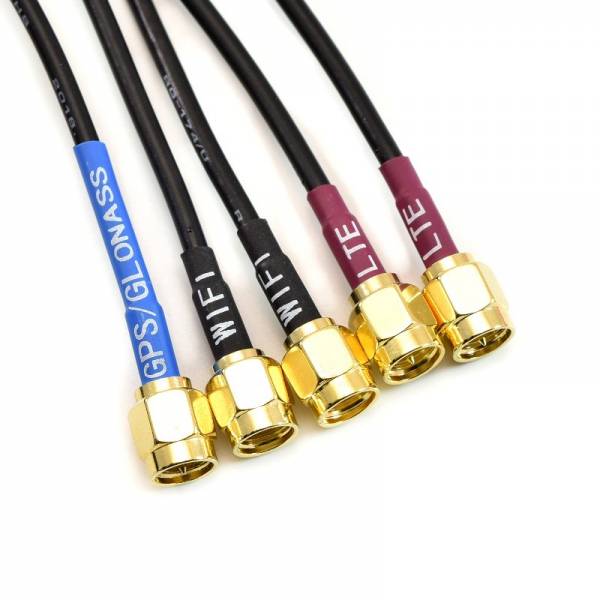

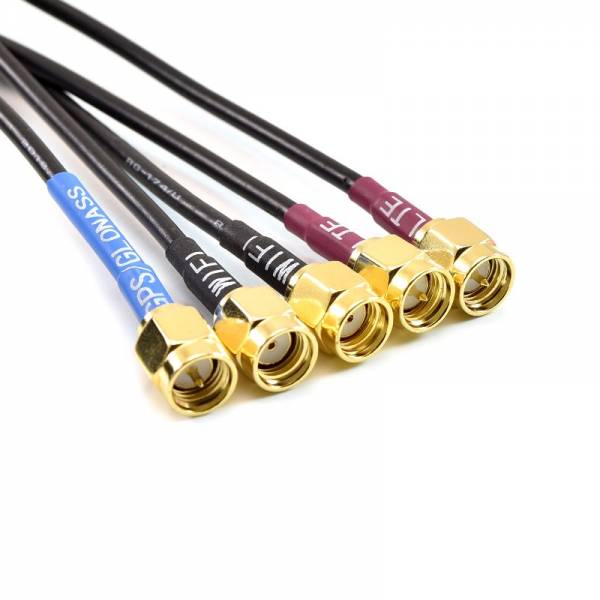

Connectors
RF Connectors
(3) SMA Male, (3) RP-SMA Male
Physical Parameters
Color
Black
Material
ABS Plastic
Ingress Protection Code
IP67

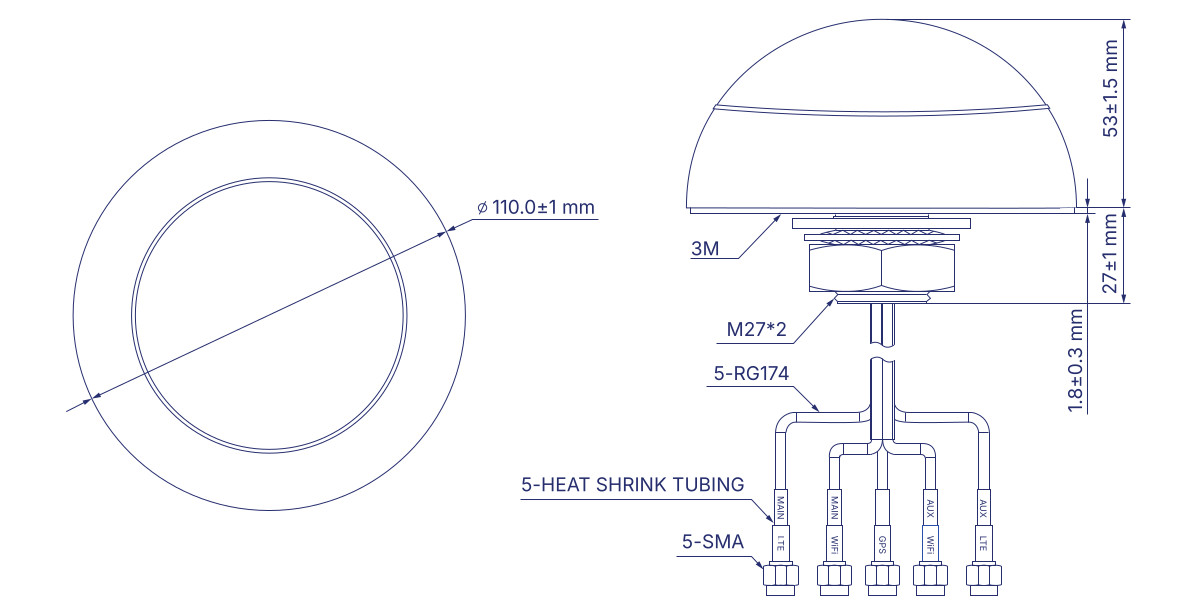

Dimensions
Ø110 x 55 mm
Weight
0.55 kg
Environment
Indoor, Outdoor

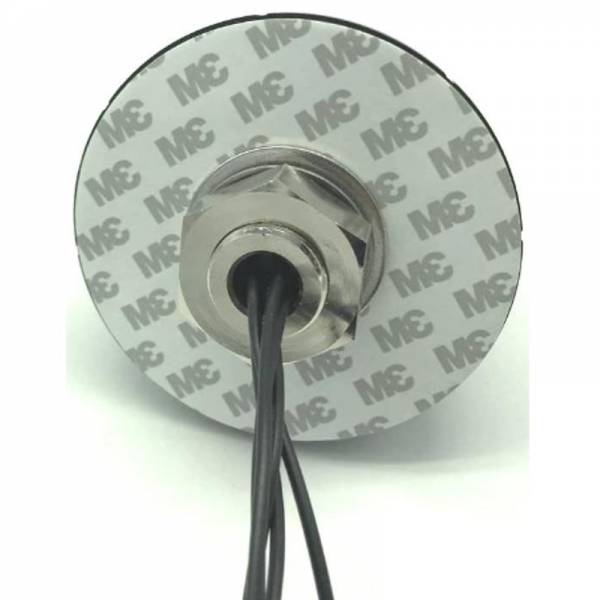

Mounting Method
Screw, Adhesive
