Teltonika RUTM11 Industrial LTE Cat 6 Router with Dual SIM & Wi-Fi 5

Official Teltonika Distributor
Certified Teltonika Engineers

Product name

Teltonika RUTM11 LTE 4G Industrial Router

Warranty

?
12 months

Manufacturer part number

RUTM11

EAN

4779051840496

Category

  • 4G LTE Cat 6 industrial router delivers up to 300 Mbps for fast, low-latency connectivity in video surveillance, automation and other data-heavy applications.
  • Dual SIM with automatic failover helps keep your connection online, while LTE carrier aggregation can boost performance for demanding industrial networks.
  • 4 Gigabit RJ45 ports plus USB provide flexible wired networking, and support for up to 128 VLANs helps segment traffic for secure, efficient management.
  • Dual-band Wi‑Fi 2.4/5 GHz with mesh networking and fast roaming supports stable wireless coverage across multiple access points and moving devices.
  • Rugged anodized aluminum housing with IP30 protection and -40°C to 75°C operating range is built for harsh industrial sites; DIN rail, wall or flat-surface mounting options.
Official Teltonika Distributor
Certified Teltonika Engineers
251.41
In stock
?
251.41
In stock
?
Official Teltonika Distributor
Certified Teltonika Engineers

Detailed description

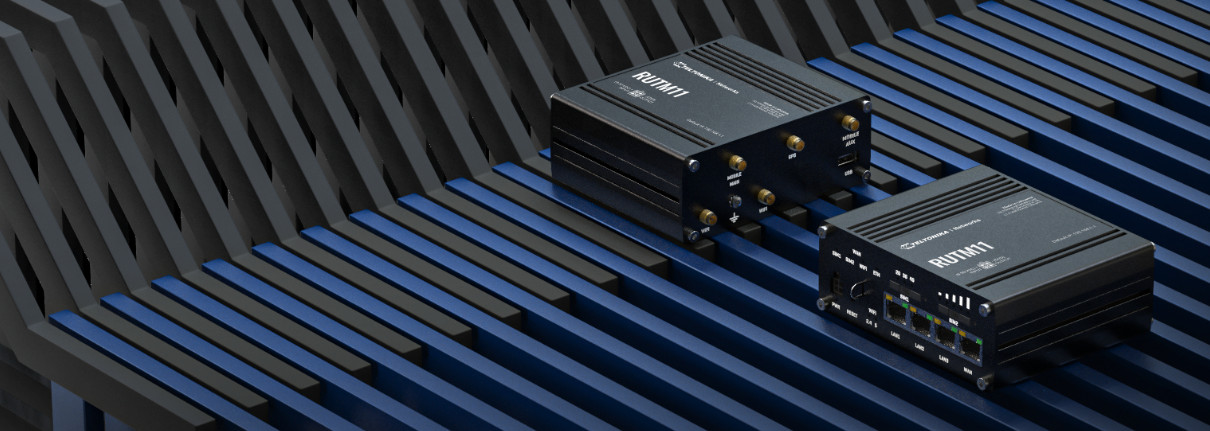

High-Speed Connectivity

The Teltonika RUTM11 industrial router is designed to deliver high-speed 4G LTE Cat 6 connectivity, supporting speeds of up to 300 Mbps. It is equipped with dual SIM capabilities, providing reliable internet with automatic failover to ensure continuous operation. This router is ideal for applications that require low latency and high data throughput, such as video surveillance or industrial automation. With LTE carrier aggregation, speeds can be further enhanced, making it a robust solution for demanding environments. The RUTM11 offers extensive networking capabilities, featuring 4 Gigabit RJ45 ports for fast wired connections and USB for additional flexibility. It supports up to 128 VLANs with tag/port-based segmentation, ensuring secure, efficient network management.
/images/catalogue/description/2359/picture1-6a06c0e5c5db0-1210x431.jpg

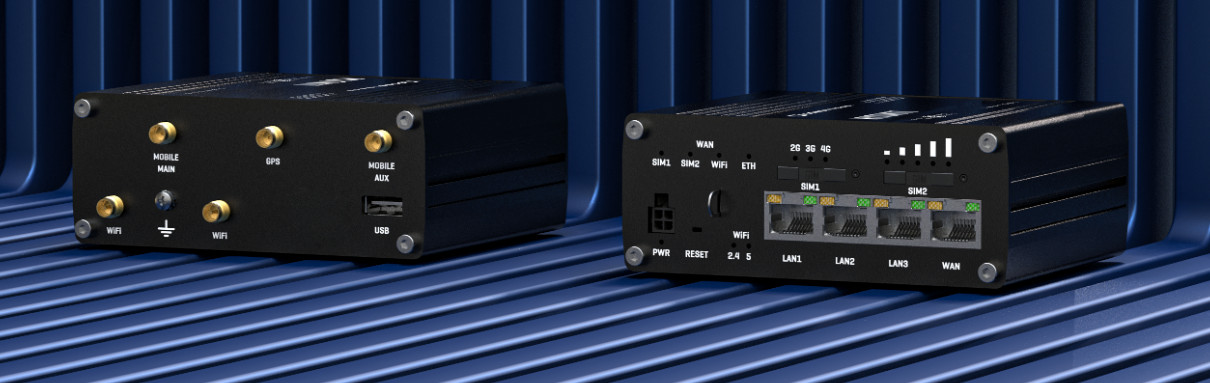

GNSS and Wi-Fi Capabilities

This router supports dual-band Wi-Fi with both 2.4 GHz and 5 GHz frequencies, providing reliable wireless coverage in multiple environments. It features mesh networking and fast roaming functionalities, ensuring seamless connectivity when moving between access points. Additionally, GNSS location services and time synchronization provide precise positioning and real-time data accuracy, which are essential for various industrial and fleet tracking applications. The RUTM11 supports multiple advanced network security protocols, including VPN, firewall, and remote management capabilities. The Teltonika Remote Management System (RMS) allows for centralized control, real-time monitoring, and firmware updates, making it easier to manage large-scale deployments.
/images/catalogue/description/2359/picture2-6a06c0ea24902-1210x383.jpg

Rugged Design

Built to withstand harsh environments, the RUTM11 features a robust anodized aluminum casing with an IP30 ingress protection rating, protecting against dust and ensuring reliable operation in industrial settings. It is designed to function within a wide temperature range of -40°C to 75°C, making it suitable for various climates. The router can be mounted on a DIN rail, wall, or flat surface (additional kits required), offering versatile installation options in challenging environments such as factories, transportation hubs, and outdoor locations. With reliable performance in challenging environments and versatile mounting options, this router provides a dependable solution for industries requiring secure and continuous network connectivity.

Compatible products

PR1KCO28
32.62
PR5MEC11
3.37
PR5MEC12
2.54
PR1KCL25
out of stock
12.32
PR5MEC19
2.32

Specifications

Mobile Network

Mobile Network Generation

LTE Category

Cat6 - 300Mbps/50Mbps
FDD LTE Frequency Bands

1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz), 32 (1400MHz)
TDD LTE Frequency Bands

38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
SIM Card Slot

Dual SIM

Wireless Network

Generation

WiFi 5
Standards

802.11n/ac
Frequency

2.4GHz, 5GHz

Antenna

Antenna Design

Omni

Connectors

RF Connectors

(3) SMA Female, (2) RP-SMA Female

Interfaces

RJ45 Ports

Interface

(1) Digital Input, (1) Digital Output
USB Ports

(1) USB-A 2.0
Management

Ethernet

System Specification

Chipset

MediaTek, Dual-core, 880 MHz, MIPS1004KC
RAM

256 MB

Tracking

GNSS

GPS, GLONASS, BeiDou, Galileo, QZSS

Power

Power Method

AC/DC Adapter, 802.3af PoE, 802.3at PoE+, 802.3bt PoE++
Supported Input Voltage

9 - 50 V DC
Max Power Consumption

12.3 W

Physical Parameters

Color

Black
Material

Aluminium
Dimensions

115 x 44.2 x 95.1 mm
Weight

0.46 kg
Operating Temperature

-40 °C to 75 °C
Environment

Outdoor
Mounting Method

Package Contains

External Power Supply

Included
