Product name
Teltonika Straight Compact Mobile Antenna 5dBi
Warranty
?
12 months
Manufacturer part number
PR1CS450
EAN
4779051840335
Teltonika Straight Compact Mobile Antenna 5dBi
Official Teltonika Distributor
Certified Teltonika Engineers
In stock
?
5.05 €
5.05 €
Official Teltonika Distributor
Certified Teltonika Engineers
Detailed description

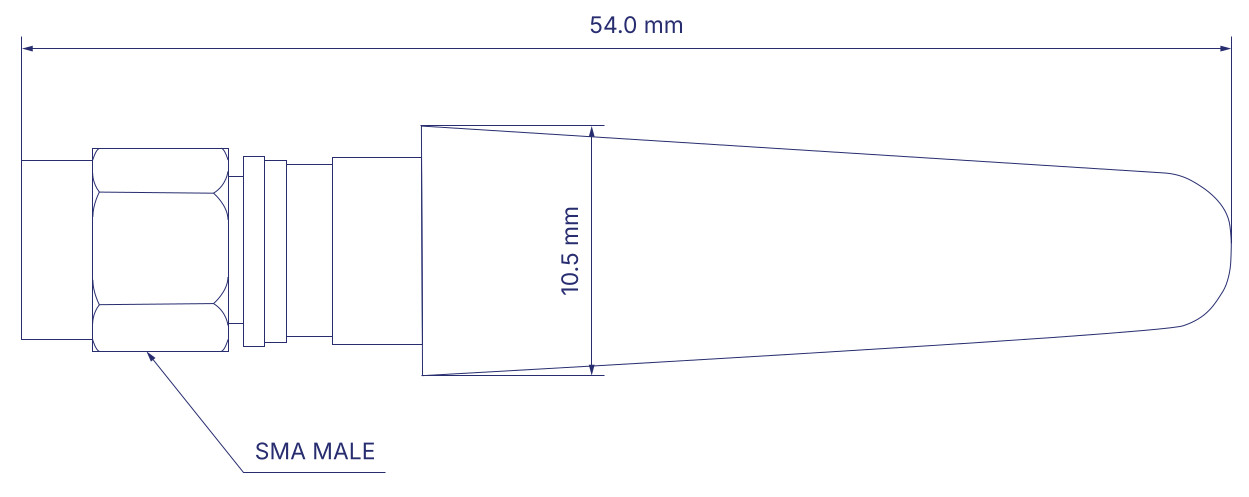

PR1CS450 is a SMA Male antenna that works in frequency range 700-2700 MHz with a maximum gain 5 dBi. This is a linear-polarized antenna with impedance 50 Ohm. The antenna is 54 mm long and is equipped with a SMA Male connector.
Technical Specs / Datasheet
Compatible products
Specifications
Antenna
Antenna Design
Omni
Mobile Antenna Frequency Range & Gain
0.7 - 2.7 (GHz) 5 (dBi)
Mobile Antenna Gain
5 dBi
Polarization
Linear
VSWR
< 1.8
Impedance
50 Ω
Connectors
RF Connectors
(1) SMA Male
Physical Parameters
Color
Black
Dimensions
Ø10.5 x 54 mm
