Brand
Milesight
Manufacturer part number
UR32L-L04EU
Warranty?
?
36 months
EAN
6974225032266
Milesight 4G Industrial Router UR32 Lite
In stock
?
125.00 €
125.00 €
Warranty
Detailed description
The Milesight UR32 Lite is an industrial cellular router designed for global M2M/IoT applications. The UR32 Lite router supports WCDMA and 4G LTE connectivity standards and has 2 Fast Ethernet 100Mbps ports that provide users with fast internet access. A built-in watchdog timer and fail-detection feature ensures reliable connectivity. With the combination of DeviceHub and MilesightVPN, the router helps you manage your network easily and efficiently. Easy deployment and comprehensive remote device management make UR32 Lite versatile in most IoT/M2M applications.

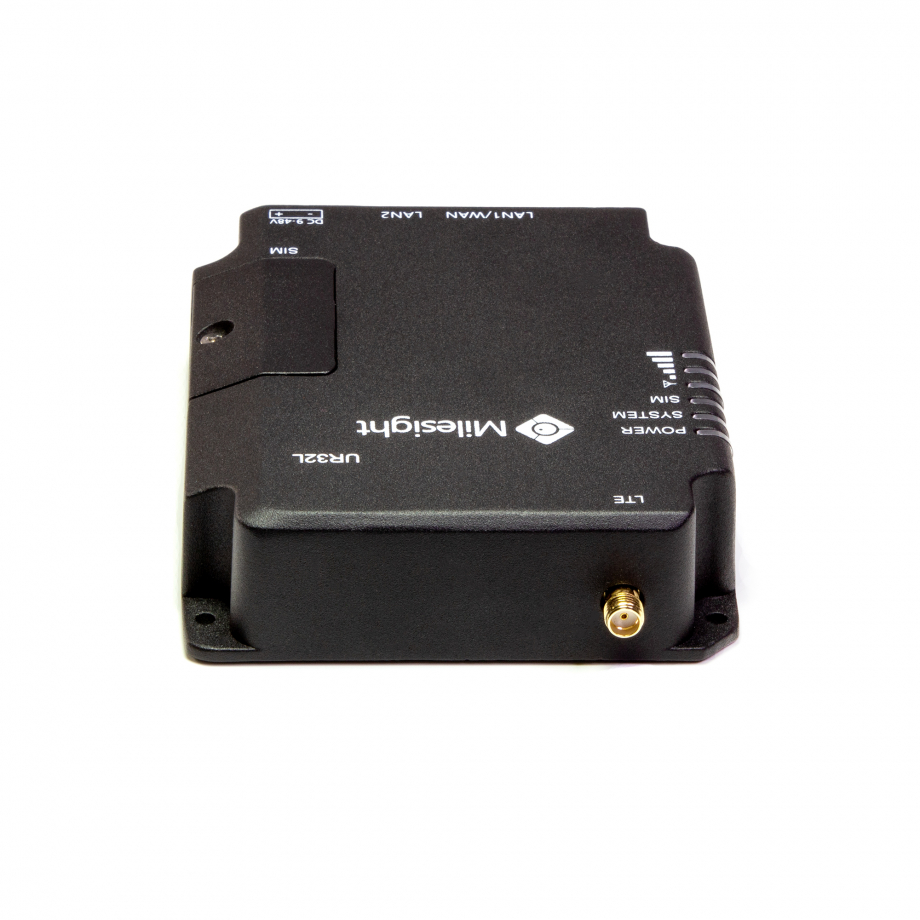

The router enclosure is made of cast aluminium and has a compact industrial design. The operating temperature ranges from -40° to +70°C.
The router is compatible with all frequency bands in 4G/3G networks and supports worldwide 4G LTE networks, providing download speeds of 150 Mbps and upload speeds of 50 Mbps.
The UR32 Lite features a wide range of routing options, including Stateful Firewall VPN and VPN (OpenVPN/ Ipsec/ PPTP/ L2TP/ DMVPN/ GRE). It also supports SNMP v1/v2c/v3 network management protocol.

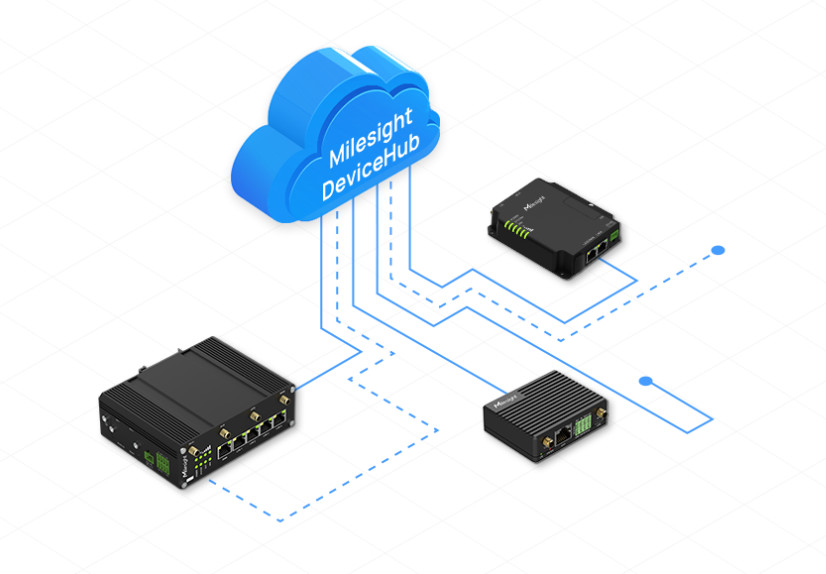

UR32 Lite Industrial Router supports the remote management platform Milesight DeviceHub, that lets you manage all your Milesight routers from a single location at anytime. You can use the DeviceHub for remote configuration, firmware upgrade, location tracking and device status monitoring.
Compare with similar products
| Mobile Network Generation | |||||
| 3G (UMTS), 4G (LTE) | 3G (UMTS), 4G (LTE) | 3G (UMTS), 4G (LTE) | 3G (UMTS), 4G (LTE) | 3G (UMTS), 4G (LTE) | |
| LTE Category | |||||
| Cat4 – 150Mbps/50Mbps | Cat4 – 150Mbps/50Mbps | Cat4 – 150Mbps/50Mbps | Cat4 – 150Mbps/50Mbps | Cat4 – 150Mbps/50Mbps | |
| Wireless Standard | |||||
| 802.11b/g/n , Wi-Fi 4 | 802.11b/g/n , Wi-Fi 4 | 802.11b/g/n , Wi-Fi 4 | |||
| 2.4 GHz Radio Rate | |||||
| 150 Mbps | 150 Mbps | 150 Mbps | |||
| Ethernet Ports | |||||
| 2 x 100 Mbps | 2 x 100 Mbps | 2 x 100 Mbps | 5 x 100 Mbps | 5 x 100 Mbps | |
| PoE Out Ports | |||||
| 2 x 802.3af (PoE), 802.3at (PoE+) | 4 x 802.3af (PoE), 802.3at (PoE+) | ||||
| SIM Slot | |||||
| 1 x Mini SIM-2FF | 1 x Mini SIM-2FF | 2 x Mini SIM-2FF | 2 x Mini SIM-2FF | 2 x Mini SIM-2FF | |
| RF Connectors | |||||
| 1 x SMA Female | 1 x SMA Female | 2 x SMA Female, 1 x RP-SMA Female | 2 x SMA Female, 1 x RP-SMA Female | 3 x SMA Female, 1 x RP-SMA Female | |
| Chipset | |||||
| ARM Cortex-A7, 528 MHz | ARM Cortex-A7, 528 MHz | ARM Cortex-A7, 528 MHz | ARM Cortex-A7, 528 MHz | ARM Cortex-A7, 528 MHz | |
| RAM | |||||
| 128 MB | 128 MB | 128 MB | 128 MB | 128 MB | |
| Storage Memory | |||||
| 128 MB | 128 MB | 128 MB | 128 MB | 128 MB | |
| GPS | |||||
| Ingress Protection Code | |||||
| IP30 | IP30 | IP30 | IP30 | IP30 | |
| Mobile Network Generation | 3G (UMTS), 4G (LTE) | 3G (UMTS), 4G (LTE) | 3G (UMTS), 4G (LTE) | 3G (UMTS), 4G (LTE) | 3G (UMTS), 4G (LTE) |
| LTE Category | Cat4 – 150Mbps/50Mbps | Cat4 – 150Mbps/50Mbps | Cat4 – 150Mbps/50Mbps | Cat4 – 150Mbps/50Mbps | Cat4 – 150Mbps/50Mbps |
| Wireless Standard | 802.11b/g/n , Wi-Fi 4 | 802.11b/g/n , Wi-Fi 4 | 802.11b/g/n , Wi-Fi 4 | ||
| 2.4 GHz Radio Rate | 150 Mbps | 150 Mbps | 150 Mbps | ||
| Ethernet Ports | 2 x 100 Mbps | 2 x 100 Mbps | 2 x 100 Mbps | 5 x 100 Mbps | 5 x 100 Mbps |
| PoE Out Ports | 2 x 802.3af (PoE), 802.3at (PoE+) | 4 x 802.3af (PoE), 802.3at (PoE+) | |||
| SIM Slot | 1 x Mini SIM-2FF | 1 x Mini SIM-2FF | 2 x Mini SIM-2FF | 2 x Mini SIM-2FF | 2 x Mini SIM-2FF |
| RF Connectors | 1 x SMA Female | 1 x SMA Female | 2 x SMA Female, 1 x RP-SMA Female | 2 x SMA Female, 1 x RP-SMA Female | 3 x SMA Female, 1 x RP-SMA Female |
| Chipset | ARM Cortex-A7, 528 MHz | ARM Cortex-A7, 528 MHz | ARM Cortex-A7, 528 MHz | ARM Cortex-A7, 528 MHz | ARM Cortex-A7, 528 MHz |
| RAM | 128 MB | 128 MB | 128 MB | 128 MB | 128 MB |
| Storage Memory | 128 MB | 128 MB | 128 MB | 128 MB | 128 MB |
| GPS | |||||
| Ingress Protection Code | IP30 | IP30 | IP30 | IP30 | IP30 |
