Product name
Teltonika Mobile Antenna 2dBi, Adhesive, SMA Male
Warranty
?
12 months
Manufacturer part number
PR1AS420
EAN
0708747440768
Teltonika Mobile Antenna 2dBi, Adhesive, SMA Male
Official Teltonika Distributor
Certified Teltonika Engineers
in stock
?
5.14 €
5.14 €
Official Teltonika Distributor
Certified Teltonika Engineers
Detailed description

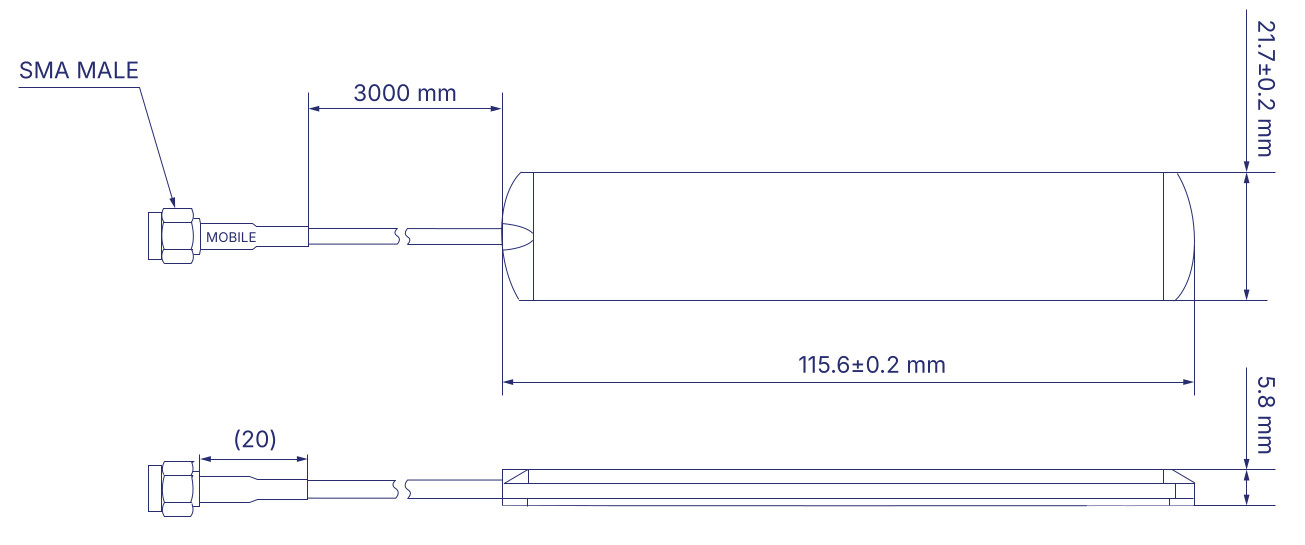

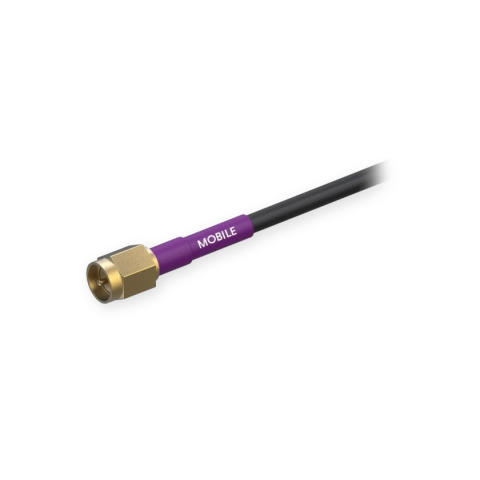

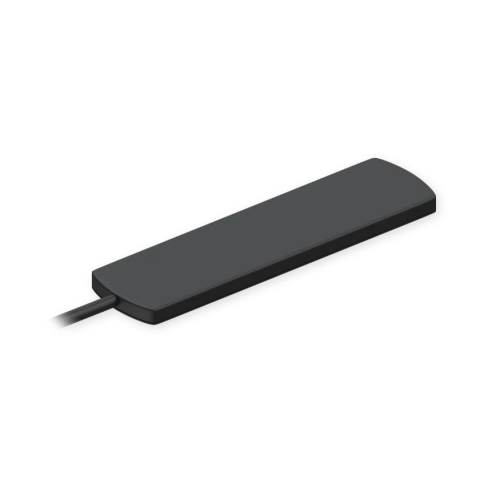

PR1AS420 is a SMA Male antenna that works in frequency ranges 824-960 MHz and 1710-2170 MHz with a maximum gain 2 dBi. This is a linear-polarized antenna with impedance 50 Ohm. The antenna is protected from dust according to the ingress protection rating IP50. PR1AS420 is equipped with a 3 m long high-frequency coaxial cable RG174. Mounting method: adhesive.
Technical Specs / Datasheet
Compatible products
Specifications
Antenna
Mobile Antenna Frequency Range & Gain
0.824 - 0.960 (GHz) 2 (dBi), 1.710 - 2.170 (GHz) 2 (dBi)
Mobile Antenna Gain
2 dBi, 2 dBi
Polarization
Linear
Cable Length
3 m
VSWR
< 2.0
Impedance
50 Ω
Connectors
RF Connectors
(1) SMA Male
Physical Parameters
Color
Black
Operating Temperature
-40 °C to 85 °C
Environment
Outdoor
Mounting Method
