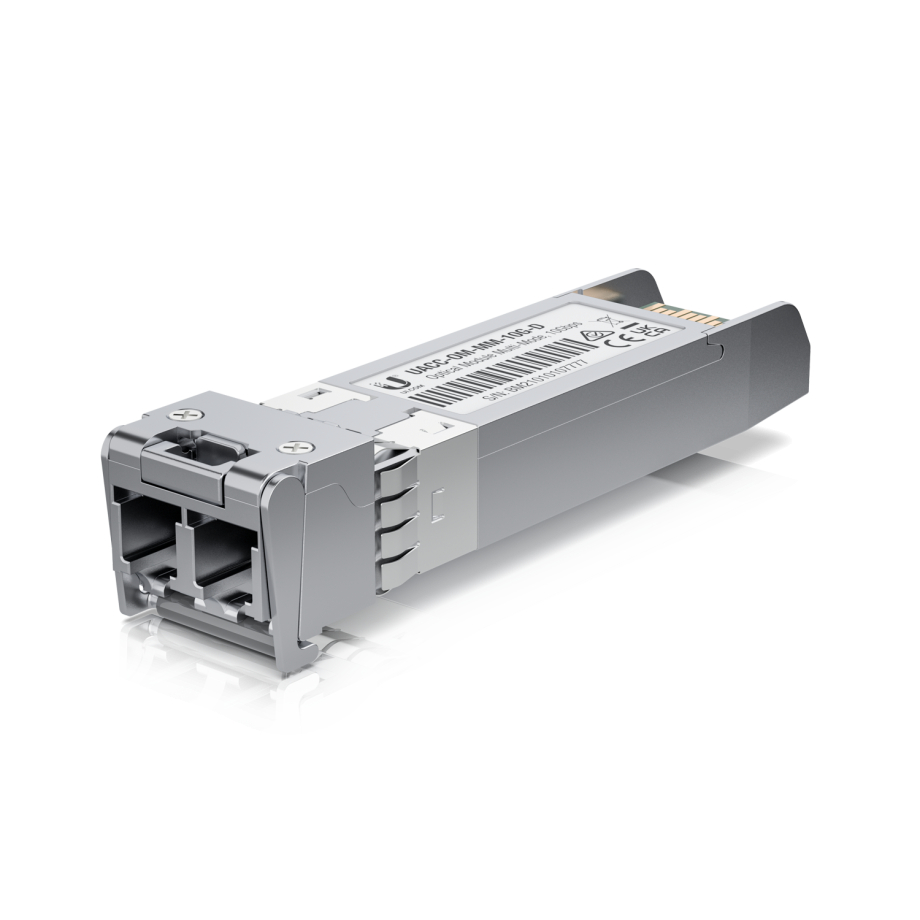

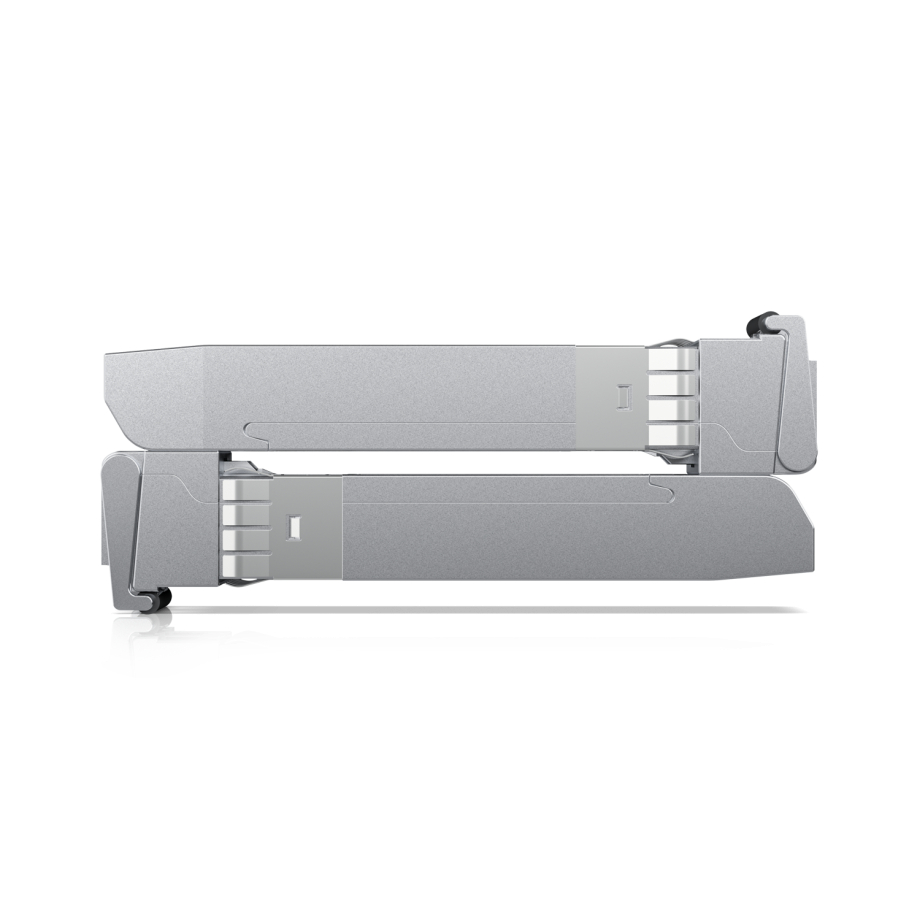

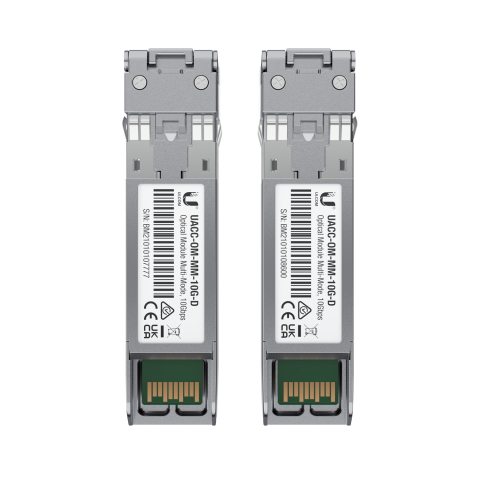

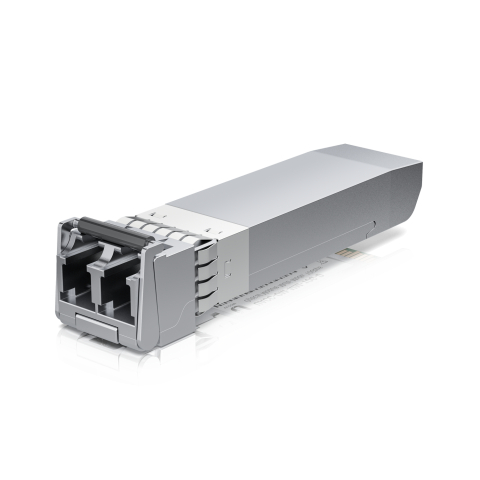

Ubiquiti 10Gbps Multi-Mode Optical Module, 2-Pack

Ubiquiti Elite Distributor
In stock
?
35.73
In stock
?
35.73

Brand

Ubiquiti

Manufacturer part number

UACC-OM-MM-10G-D-2

Warranty
?

12 months

EAN

0810354025914
Ubiquiti Elite Distributor

Detailed description

The 10 Gbps Multi-Mode Optical Module, model UACC-OM-MM-10G-D-2, from Ubiquiti is a high-performance, dual-rate optical transceiver designed for use in building and scaling high-speed network infrastructures. This device is specifically engineered to facilitate data transmission at speeds of up to 10 Gbps, supporting both 10 Gigabit Ethernet and 1 Gigabit Ethernet, making it a versatile solution for varying network demands.
Features:
  • 10 Gbps throughput
  • Duplex LC connector
  • Supports connections up to 300 m*
*Fiber cable is not included.
The UACC-OM-MM-10G-D-2 utilizes multi-mode fiber (MMF) technology, enabling it to transmit data over shorter distances, typically up to 300 meters, which is ideal for intra-building or campus-wide network applications. This feature makes it especially suitable for connecting servers within a data center or linking various communications hubs across a business campus.
Featuring a duplex LC connector, this optical module ensures a reliable connection to fiber optic cabling, which is key for maintaining the integrity and efficiency of high-speed data transmissions. The use of multi-mode fiber also helps in reducing the cost of deployment compared to single-mode fibers, which are typically used for longer distance communications.
This optical module operates within the standard optical wavelength window of 850 nm, which is common for multi-mode fiber transmissions, providing compatibility with a broad range of existing networking equipment and fiber infrastructure. This standardization helps in simplifying network upgrades or expansions without the need for extensive reconfiguration or replacing current components.
One of the critical features of the UACC-OM-MM-10G-D-2 is its support for Digital Diagnostics Monitoring (DDM). This function allows network administrators to monitor real-time parameters of the optical module, including temperature, optical power output, optical power received, and laser bias current. These diagnostics are invaluable for proactive maintenance and troubleshooting, helping to ensure continuous network performance and reduce downtime.
The module's form factor follows the industry-standard small form-factor pluggable (SFP+) design, which is widely adopted for network upgrades or expansions due to its compact size and hot-swappable capability. This means the module can be inserted or removed without needing to power down the network device, facilitating seamless upgrades and minimal interruption to network service.
Additionally, the UACC-OM-MM-10G-D-2 is designed to consume low power, which not only reduces operating costs but also helps in maintaining lower operational temperatures, thereby extending the lifespan of the module as well as the networking equipment it is hosted in.
