JCE305 LTE/GPS/GLONASS/Wi‑Fi Combo Outdoor Antenna | IP67, SMA/FAKRA

The JCE305 is a combined GPS, LTE, and WiFi antenna that integrates three separate radio functions in one housing. The GPS element operates at 1575.42 MHz with right-hand circular polarization and includes a low-noise amplifier with 28 ±2 dB gain, supporting satellite signal reception through an active antenna path. The LTE element covers 698–960 MHz and 1710–2700 MHz with linear polarization and 2.0 dBi gain, while the WiFi element operates across 2400–2483.5 MHz with linear polarization and 3 dBi gain. Each function uses a 50-ohm interface, allowing the antenna to connect to compatible communication and positioning equipment through separate feeds rather than requiring three individual housings.

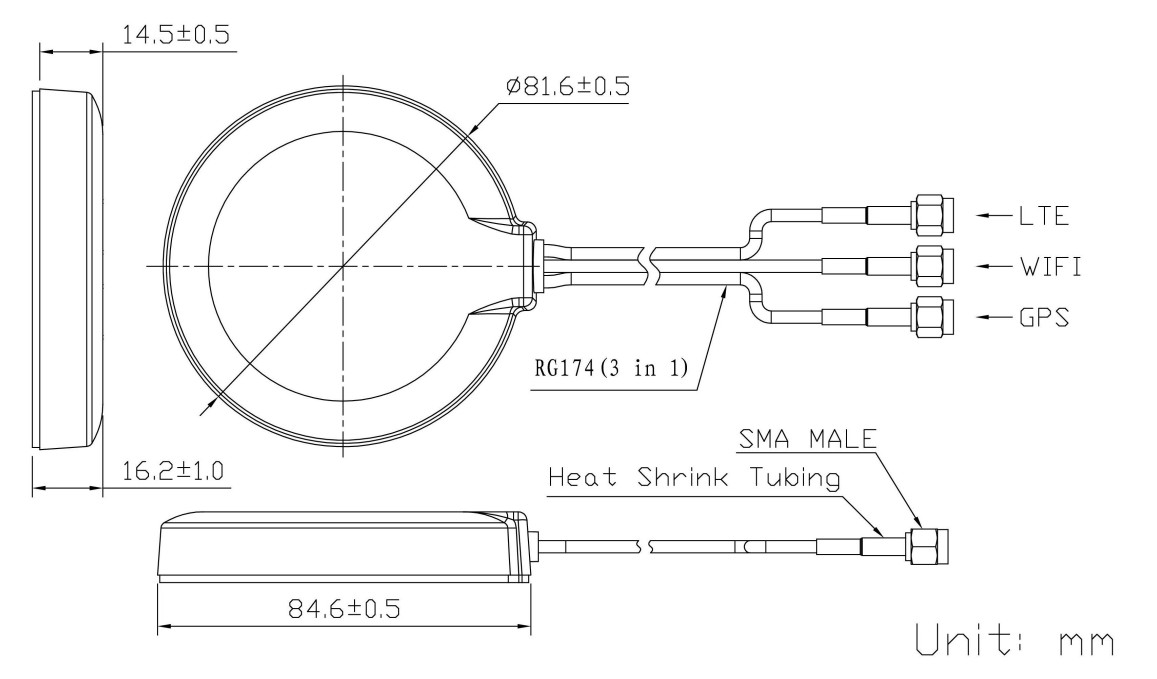

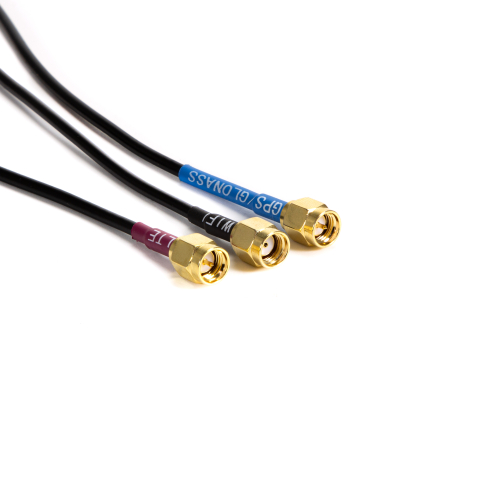

Three RG174 cables leave the enclosure as a combined cable set, with dedicated connections identified for LTE, WiFi, and GPS. The antenna can be supplied with SMA, FAKRA, or other connector types to match the target device. Its ABS housing supports either adhesive or magnetic mounting, giving installers a choice between fixed surface attachment and removable placement on a suitable metal surface. IP67 ingress protection helps shield the assembly from dust and water exposure, while the specified operating range of -40 °C to +85 °C and relative humidity support up to 95% make it suitable for demanding environments. The antenna is also rated for vibration from 10 to 55 Hz at 1.5 mm amplitude for two hours and complies with RoHS environmental requirements.
