Product name
Teltonika LTE/GNSS/Wi-Fi Combo SISO Roof Antenna 3m
Warranty
?
12 months
Manufacturer part number
PR1KCS28
EAN
04251876873397
Teltonika LTE/GNSS/Wi-Fi Combo SISO Roof Antenna 3m
Certified Teltonika Engineers
Official Teltonika Distributor
In stock
?
14.68 €
14.68 €
Certified Teltonika Engineers
Official Teltonika Distributor
Detailed description

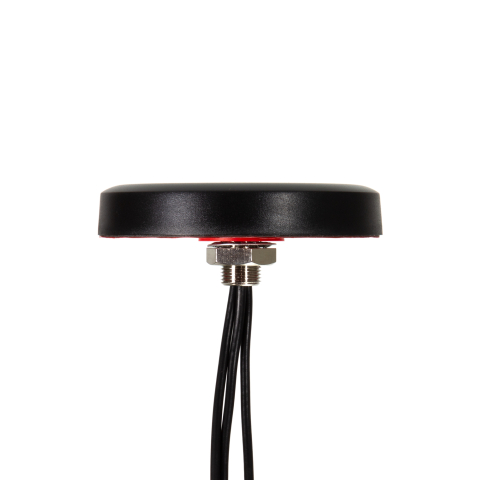

PR1KCS28 is a combined GNSS + LTE + Wi-Fi SISO antenna. The operating frequency range of the GNSS antenna is 698-960 / 1710-2690 MHz. The LTE antenna works in the frequency range 850 / 900 / 1800 / 1900 / 2170 MHz with 3.5 dBi gain, but the Wi-Fi antenna works in the frequency range 2350-2500 MHz with 2.5 dBi gain. The antenna is protected from dust and water according to the ingress protection rating IP65. PR1KCS28 is equipped with three high-frequency coaxial RG174 cables. Each cable is 3 m long. Mounting method: screw.
Technical Specs / Datasheet
Compatible products
Specifications
Mobile Network
Mobile Network Generation
Wireless Network
Frequency
2.4GHz
Antenna
Antenna Design
Roof
Wireless Antenna Frequency Range & Gain
2.350 - 2.500 (GHz) 2.5 (dBi)
Mobile Antenna Frequency Range & Gain
0.850 - 2.170 (GHz) 3.5 (dBi)
Mobile Antenna Gain
3.5 dBi
Beamwidth
360 ° Vertical
GPS Antenna Frequency Range & Gain
1575.42 MHz 2 dBic (Zenith)
Cable Length
3 m
VSWR
< 1.5
Impedance
50 Ω

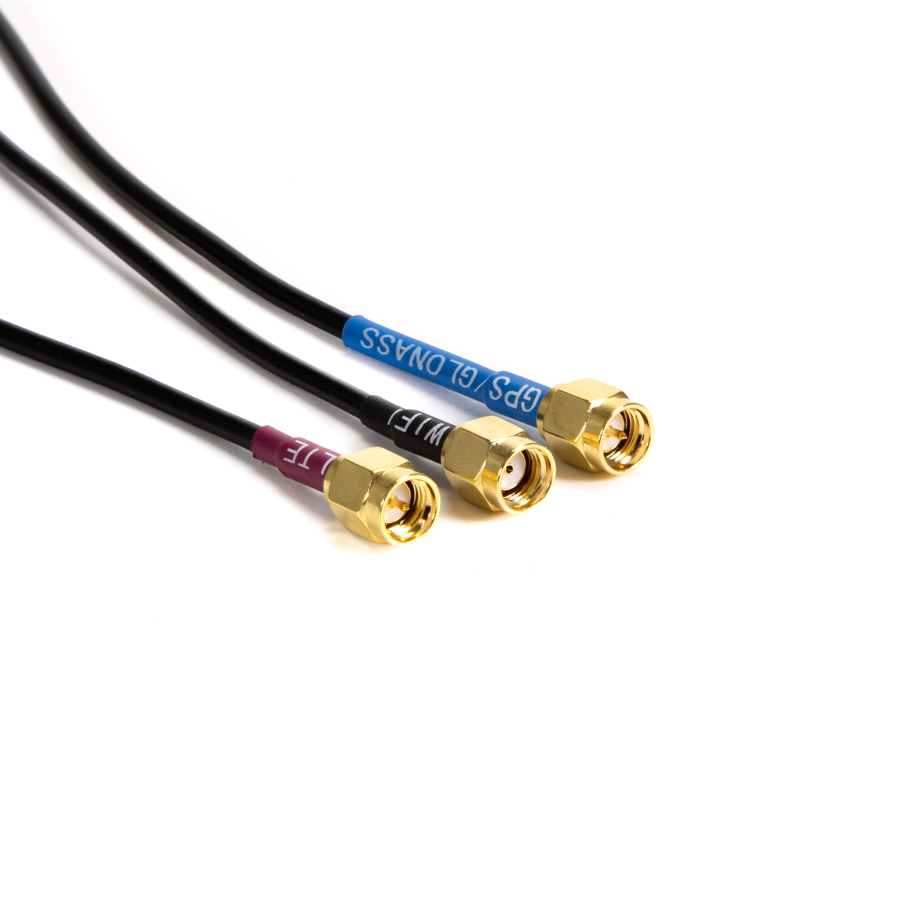

Connectors
RF Connectors
(2) SMA Male, (1) RP-SMA Male
Physical Parameters
Color
Black
Material
ABS Plastic
Ingress Protection Code
IP67

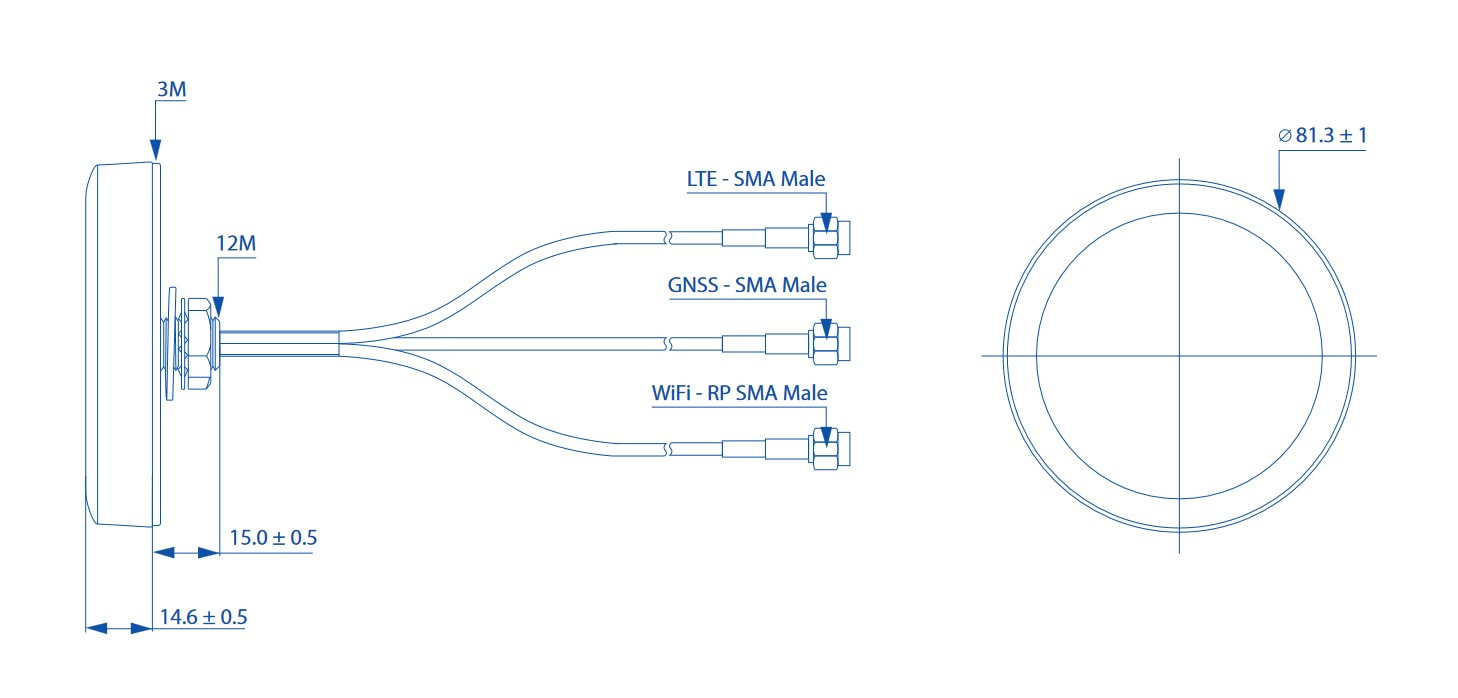

Dimensions
Ø85 x 15 mm
Weight
0.25 kg
Environment
Outdoor
Mounting Method
