QuSpot for RUTX09

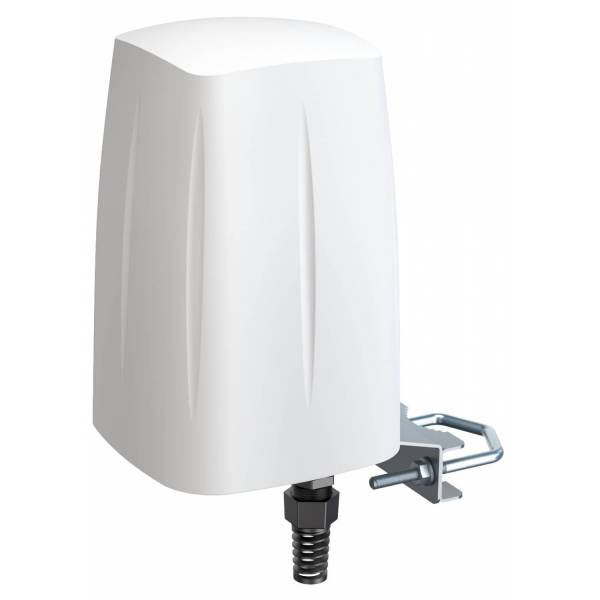

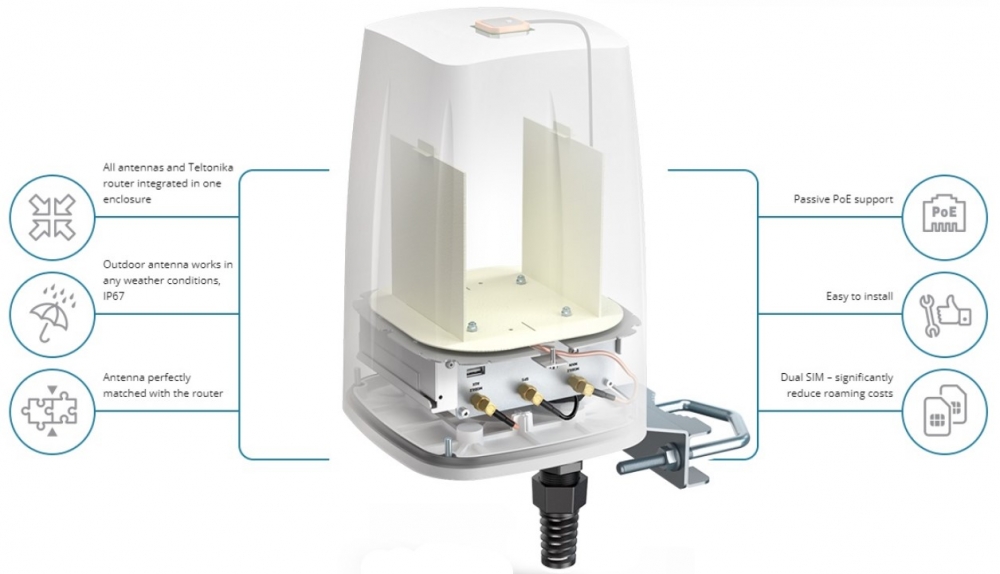

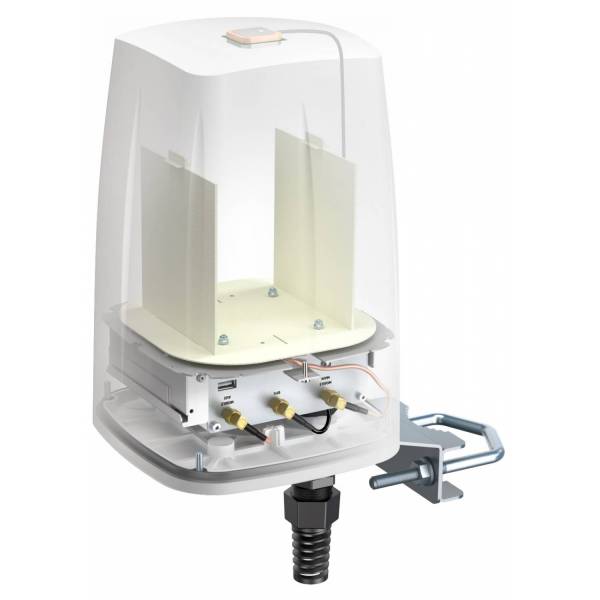

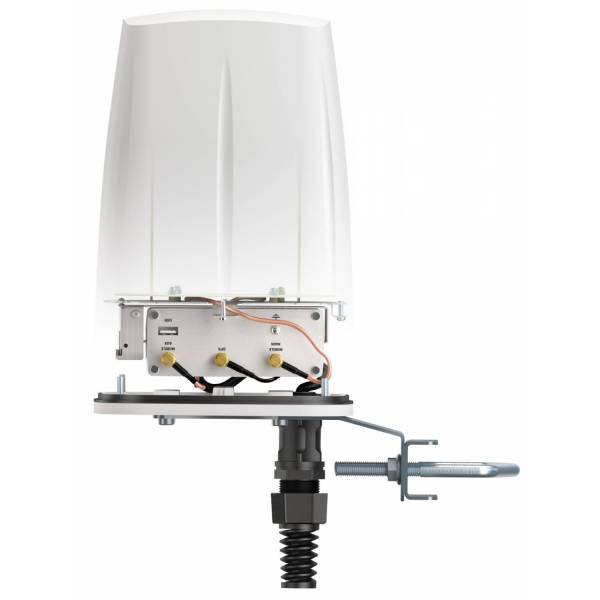

QuSpot for Teltonika RUTX09 is an outdoor antenna enclosure that combines multi-band 5G/LTE omnidirectional antennas, an embedded GPS antenna, and space for installing a Teltonika RUTX09 router in one integrated unit. The product is also compatible with RUTM09, allowing the same outdoor antenna concept to be used with either supported router model. By placing the router and antennas inside a single enclosure, it creates a compact installation that avoids separating the router from its external antenna system. The antenna design is intended for both mobile and fixed installations, including industrial sites, CCTV systems, hotspots, yachts, boats, campers, and RVs.

Its omnidirectional 5G/LTE coverage supports operation around the enclosure without requiring precise directional alignment, which is useful when the signal source may vary or when the device is installed in moving environments. The 5G/LTE antennas operate across a wide 0.6 to 6.35 GHz range and support many LTE and 5G bands, helping the router use different mobile network frequency ranges through the integrated antenna system. The embedded GPS antenna adds positioning capability within the same enclosure, keeping the cellular antenna system, GPS antenna, and router installation together in a single outdoor-ready assembly.

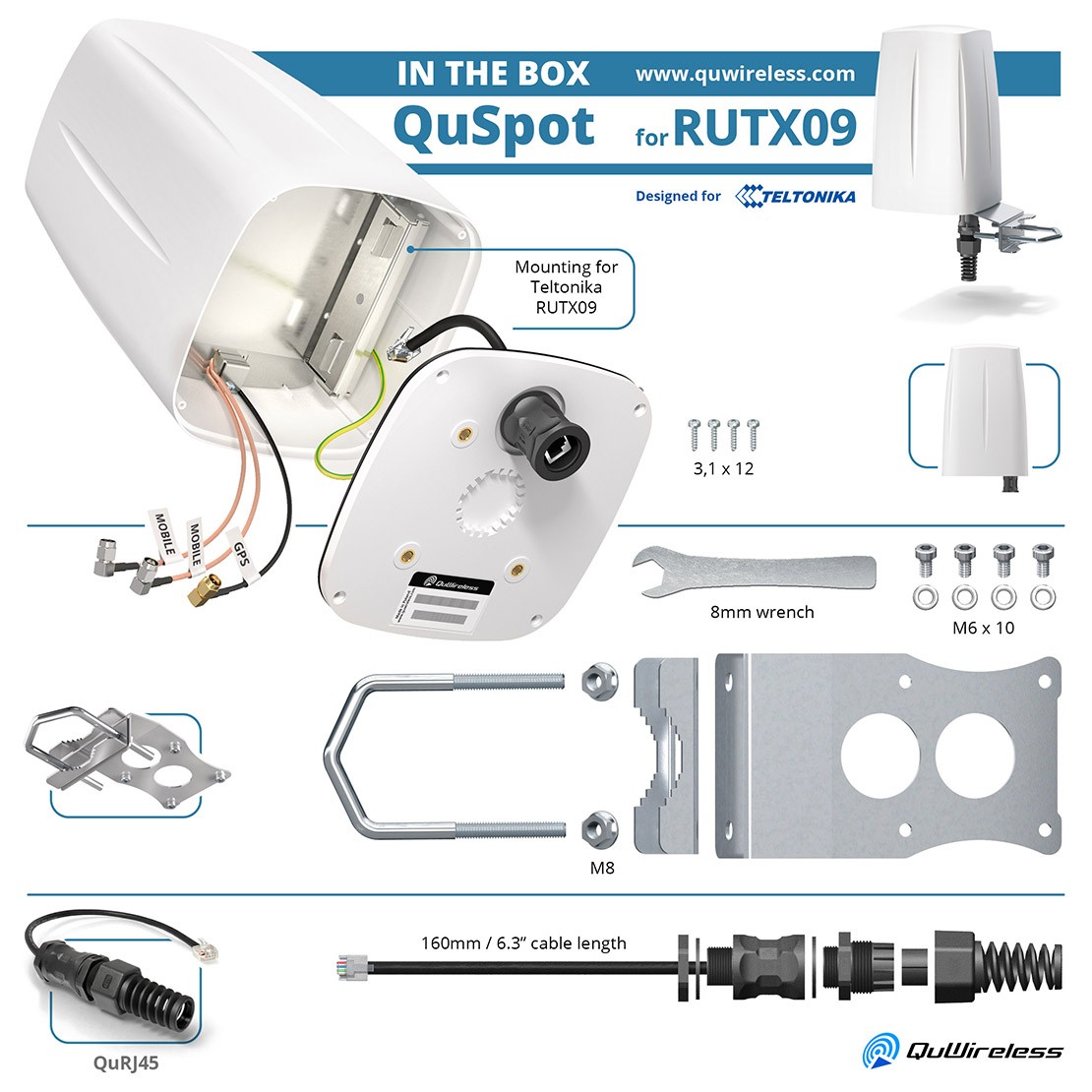

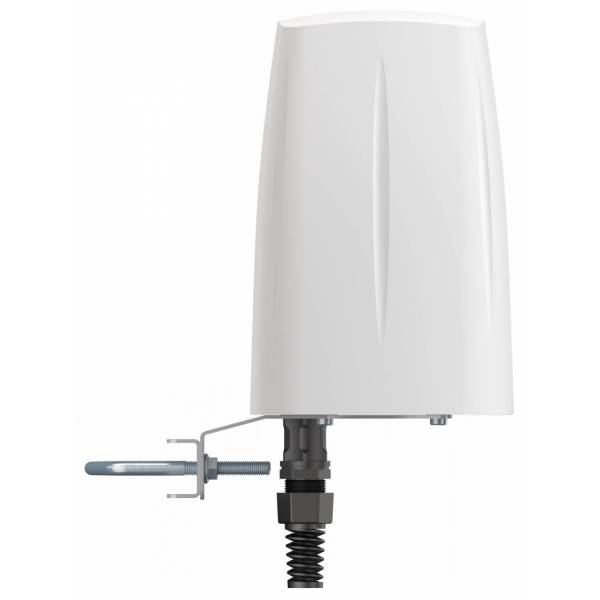

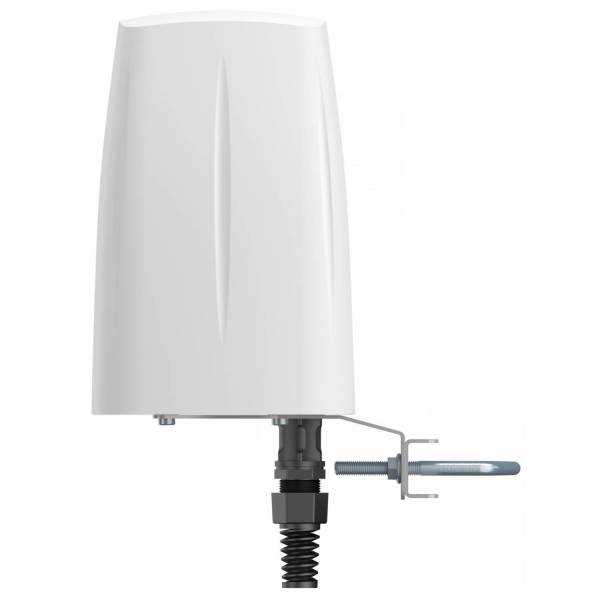

The enclosure is built for outdoor operation and has IP68 ingress protection, helping shield the installed router and antenna system from demanding environmental conditions. Its operating temperature range from -40°C to 80°C supports year-round deployment in locations exposed to heat, cold, and changing weather. The housing uses ABS, aluminum, and PTFE materials, combining a protective outer structure with the integrated antenna design required for outdoor router installations. Installation is supported by a wall or mast mounting system. The mast mounting range covers diameters from 25 to 66 mm, allowing the enclosure to be attached to common outdoor mounting poles.

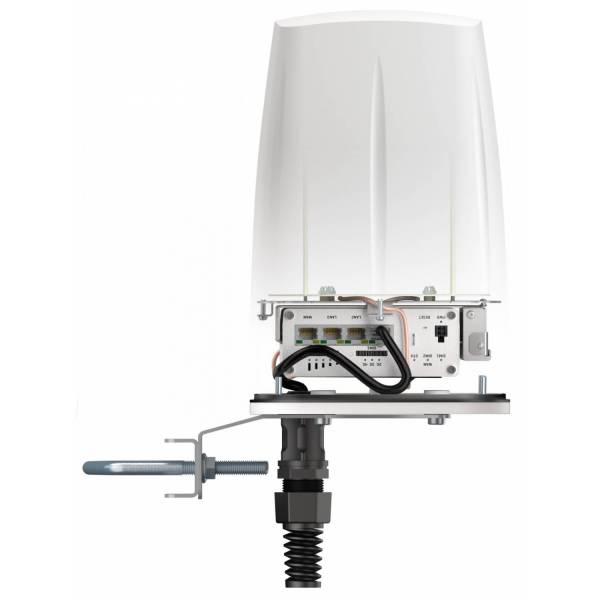

With dimensions of 160 x 160 x 240 mm and a weight of 1.5 kg, the unit remains compact while providing space for the compatible Teltonika router inside the enclosure. The RJ45 connector type supports wired connection through the housing, and passive PoE support allows power and data delivery to be arranged through network cabling where the installation is designed for it. The 5G/LTE antenna system uses vertical polarization and 50 Ω impedance. Its 360° azimuth beamwidth supports omnidirectional coverage, while the integrated layout helps keep the router, mobile antennas, and GPS antenna combined in one practical outdoor installation.
