QuMax XR High Band LTE Antenna for Teltonika RUT240/950/955/X09/X11

QuWireless QuMax XR LTE High Band combines a directional LTE antenna with an outdoor enclosure designed to house selected Teltonika routers. Its directional architecture is intended for fixed installations where the connection must reach a distant base station, and QuWireless positions it as the most powerful directional LTE antenna in its range. The antenna covers 694–960 MHz and 2.3–2.7 GHz, spanning the LTE and 5G bands specified for the product. Across these ranges, the supported LTE/5G bands are handled by the same integrated antenna structure rather than separate external antennas. Gain is 6 dBi in the lower frequency range and rises to 13 dBi across 2.3–2.7 GHz, giving the High Band version its strongest stated performance in the upper operating range.

Dual-polarized X-Pol operation is combined with a 50 Ω impedance and a beamwidth that changes with frequency. The lower band uses a 70°/70° beamwidth, while the 2.3–2.7 GHz range narrows to 30°/30°, focusing the antenna more tightly in the intended direction at higher frequencies. The enclosure also has space for genuine internal Teltonika GPS and Wi-Fi antennas, so these components can be installed alongside the router within the same housing. This integrated arrangement keeps the directional LTE antenna, router position, and optional internal Teltonika antennas together as one outdoor installation rather than treating them as separate external components.

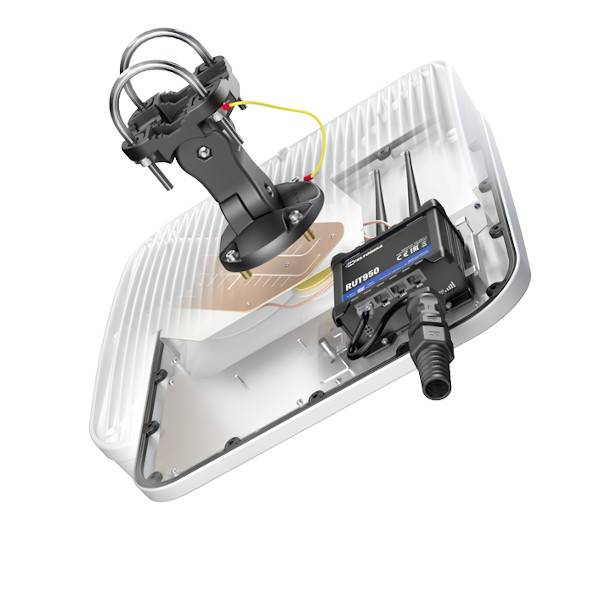

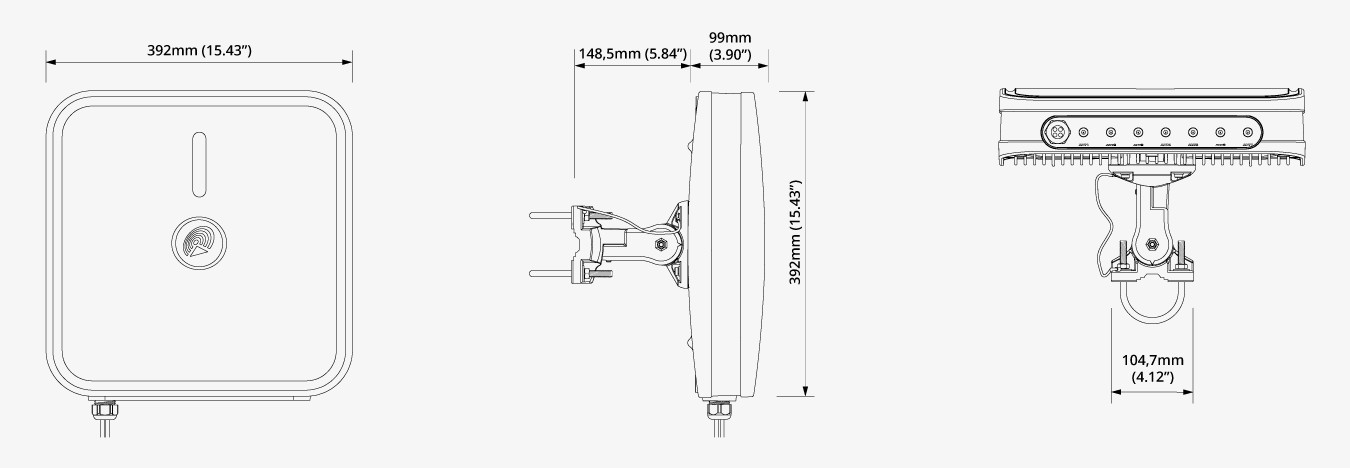

The QuMax XR LTE High Band enclosure is designed around direct integration with compatible Teltonika routers, including RUT200, RUT240, RUT241, RUT900, RUT901, RUT950, RUT951, RUT955, RUT956, RUTX09 and RUTX11. The router is installed inside the IP67 housing, which is intended for outdoor use and fixed industrial installations. A universal mounting bracket supports attachment to masts with diameters from 25 to 66 mm, while the enclosure’s recommended tightening torque is 0.6–0.8 Nm. The supported operating temperature extends from -40 °C to 80 °C, keeping the assembly within its specified operating range across a broad range of environmental conditions.

Connectivity is provided through RJ45, and passive PoE support allows network connection and power delivery to be incorporated into the installation. Because the router sits inside the antenna enclosure, the active networking device becomes part of the same physical assembly as the directional antenna. The housing is constructed from ABS, aluminum, PTFE and fiberglass and carries IP67 ingress protection. Together with the dedicated router space, mast-mounting hardware and internal provision for genuine Teltonika GPS and Wi-Fi antennas, the enclosure is configured as a complete mounting platform for the compatible router and antenna components used in the QuMax XR LTE High Band system.
