3G/4G LTE, Wi-Fi, GPS & GLONASS Combo Outdoor Antenna IP67

The JCE058 is a combined GPS, GSM, and WiFi antenna that integrates three wireless functions in one compact screw-mounted housing. The GPS section operates at 1575.42 MHz with right-hand circular polarization and includes a low-noise amplifier with 28 ± 2 dB gain, helping strengthen received positioning signals before they reach the connected device. It accepts a 2.2–5 V DC supply and consumes 5–15 mA. The GSM element covers 824–960 MHz and 1710–2170 MHz with linear polarization and 2.0 dBi gain, while the WiFi element operates across 2400–2483.5 MHz and provides 3 dBi gain. Together, these elements support satellite positioning, cellular communication, and 2.4 GHz wireless connectivity through a single external antenna assembly.

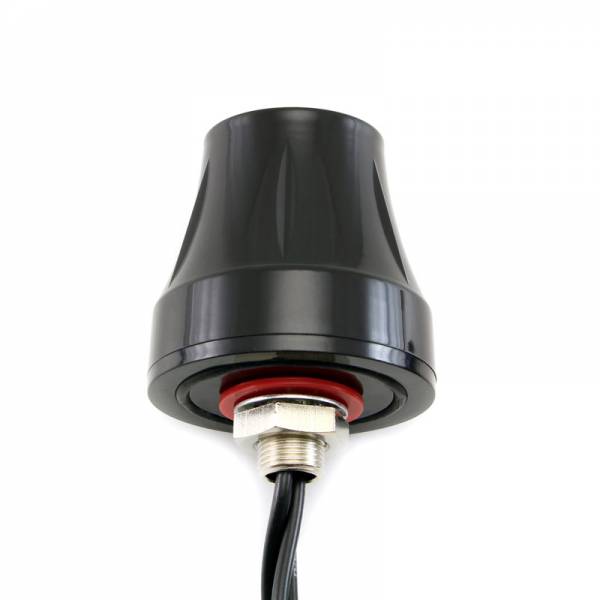

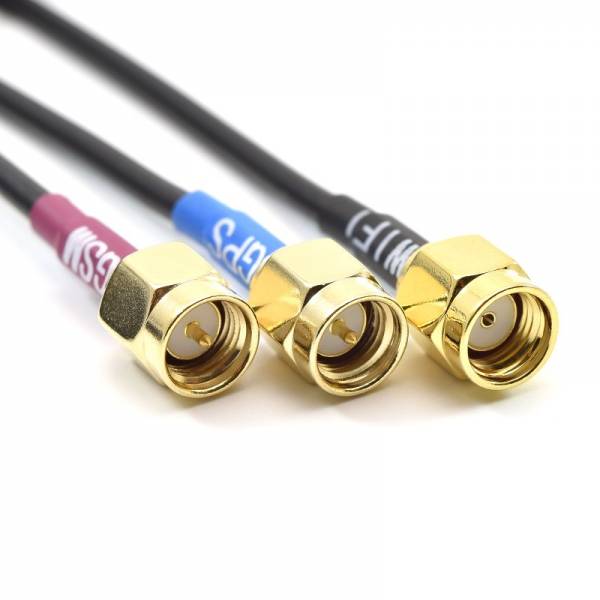

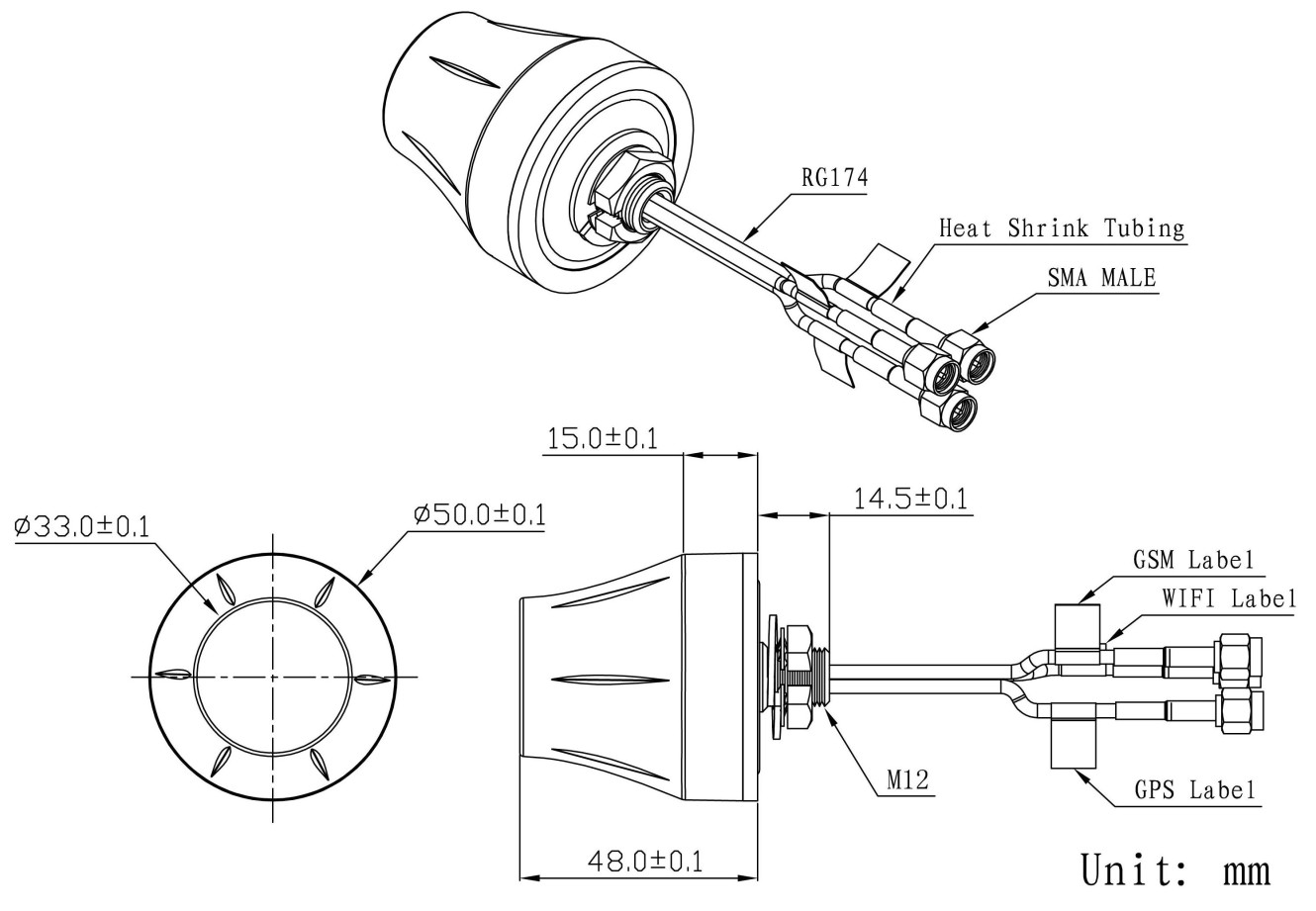

The antenna uses 3 m RG174 cables and SMA male connectors, providing dedicated wired connections for the GPS, GSM, and WiFi sections. Its ABS enclosure is designed for screw mounting, allowing fixed installation on a panel or equipment housing. The body measures approximately 50 mm in diameter and 48 mm in height, keeping the installation footprint compact while accommodating all three antenna elements. It is rated for operation from -40 °C to +85 °C and relative humidity up to 95%. IP67 protection applies to the enclosure except at the cable outlet, while the specified vibration resistance supports installations exposed to mechanical movement. RoHS compliance confirms conformity with the stated environmental requirement.
