All-in-One Antenna

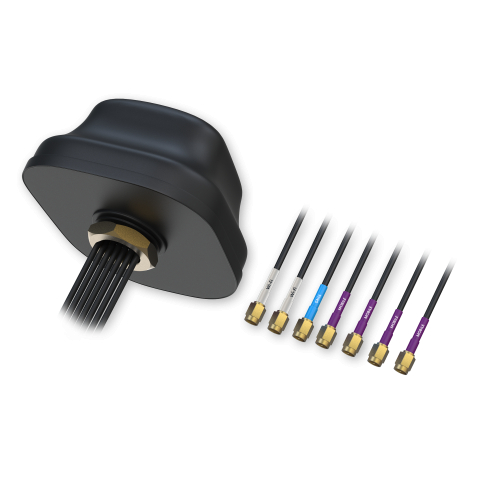

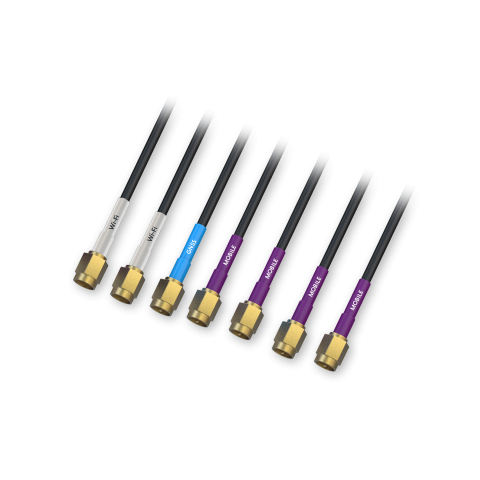

The Teltonika PR1KC640 is a high-performance combo antenna designed for reliable vehicle connectivity. It integrates 5G mobile MIMO, GNSS, and Wi-Fi MIMO capabilities into a compact, roof-mounted unit. The 5G antenna supports frequencies 617–960 MHz, 1710–2690 MHz and 2900–4200 MHz with linear polarization and 4 dBi gain, ensuring stable cellular communication. GNSS functionality covers 1164–1300 MHz and 1559–1610 MHz, with RHCP polarization, 40 dB LNA gain, and a wide 3–12 VDC supply voltage range for precise satellite positioning. Dual Wi-Fi MIMO antennas operate in both 2.4 GHz and 5 GHz bands with 4 dBi gain and support for high-speed wireless networks. With 4x SMA Male, 1x SMA Male, and 2x RP SMA Male connectors, this antenna is ready for seamless integration into advanced telematics and IoT systems.
Rugged Design
Built for automotive and industrial use, the PR1KC640 features a durable UV-resistant ABS/PC housing with an IP67 rating (excluding the cable outlet), protecting against dust and water ingress. Its lightweight design and compact dimensions make it ideal for vehicle rooftops. The antenna requires a screw-mount installation (recommended: Ø28 mm hole, max 8 mm panel thickness) and comes with seven 3 m LMR100 cables for easy setup. Operating reliably in extreme temperatures from –40 °C to +85 °C, it’s perfect for harsh outdoor conditions. RoHS certification and minimal power usage make it an eco-friendly choice. Whether for fleet tracking, remote diagnostics, or mobile internet access, this antenna delivers robust, multi-network performance.
