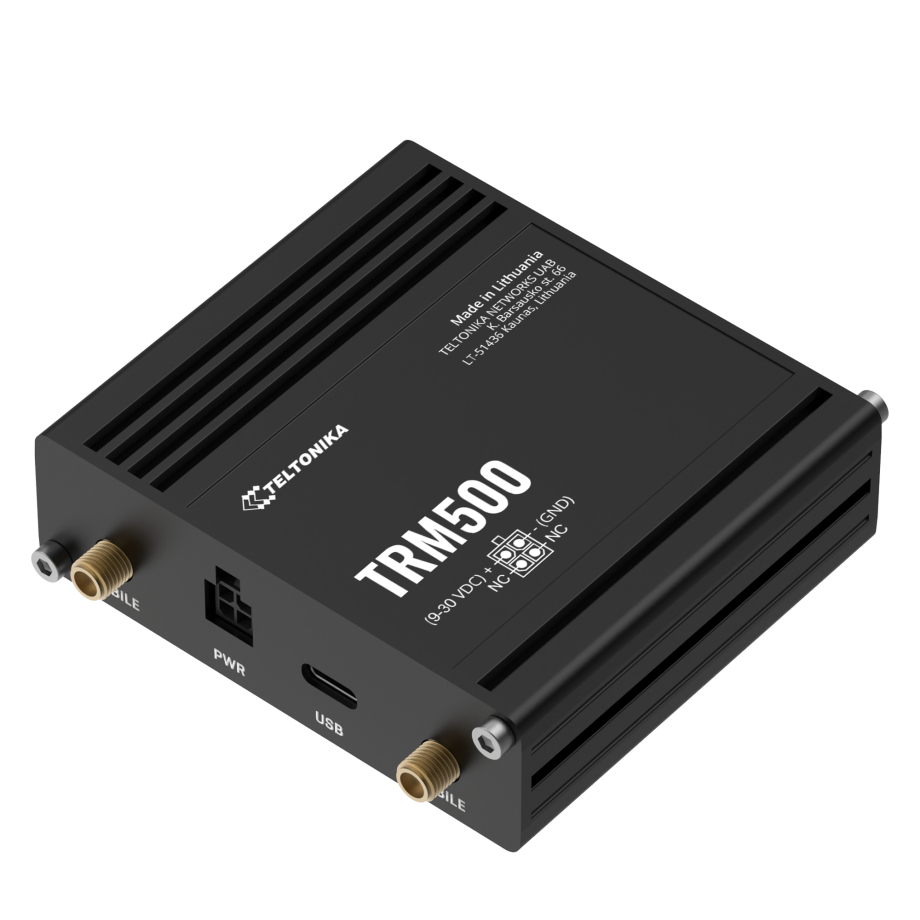

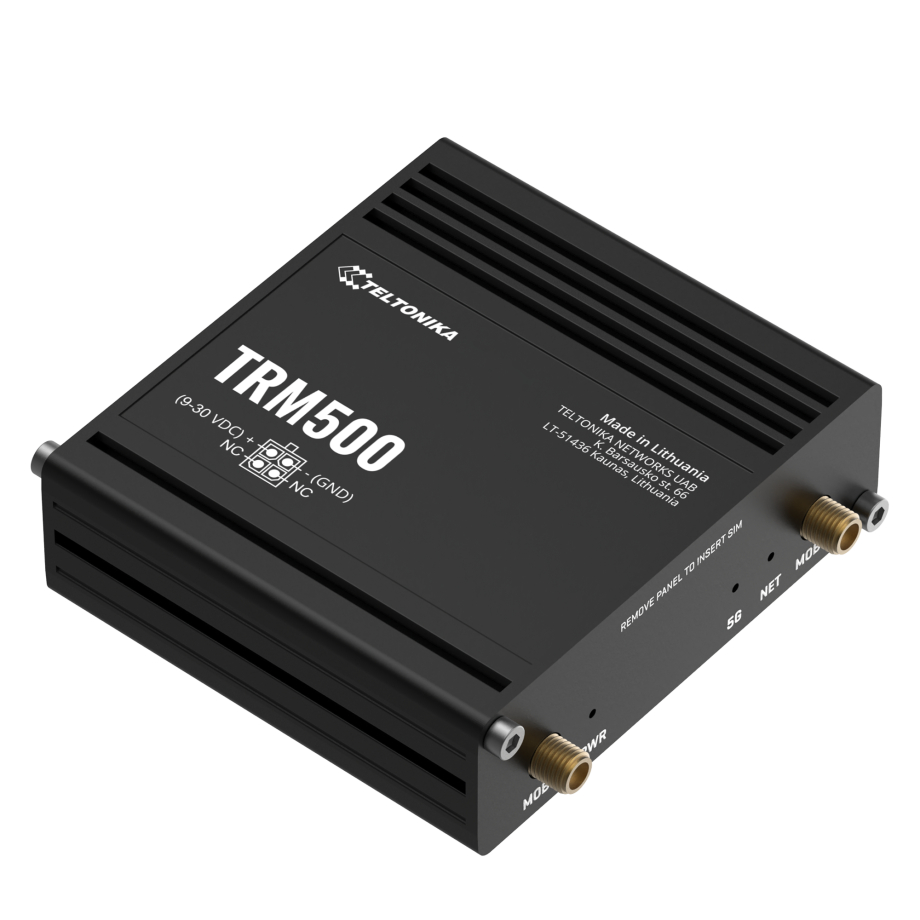

Teltonika TRM500 5G Modem

The Teltonika TRM500 5G modem delivers ultra-fast and reliable cellular connectivity, designed specifically for industrial IoT and demanding data-intensive applications. Supporting 5G Sub-6 GHz technology, it reaches download speeds up to 3.4 Gbps in NSA mode and 2.4 Gbps in SA mode, while its 4x4 MIMO configuration enhances network performance, signal quality, and stability. The modem also maintains full backward compatibility with 4G LTE Cat 19, offering download speeds up to 1.6 Gbps, and 3G networks with speeds up to 42 Mbps. These features ensure uninterrupted high-speed data transfer for remote monitoring, automated industrial processes, real-time telemetry, and video streaming. With advanced network support, seamless switching between 5G, 4G, and 3G ensures reliable connectivity in various indoor environments, making it an ideal solution for organizations looking to future-proof their communication infrastructure.

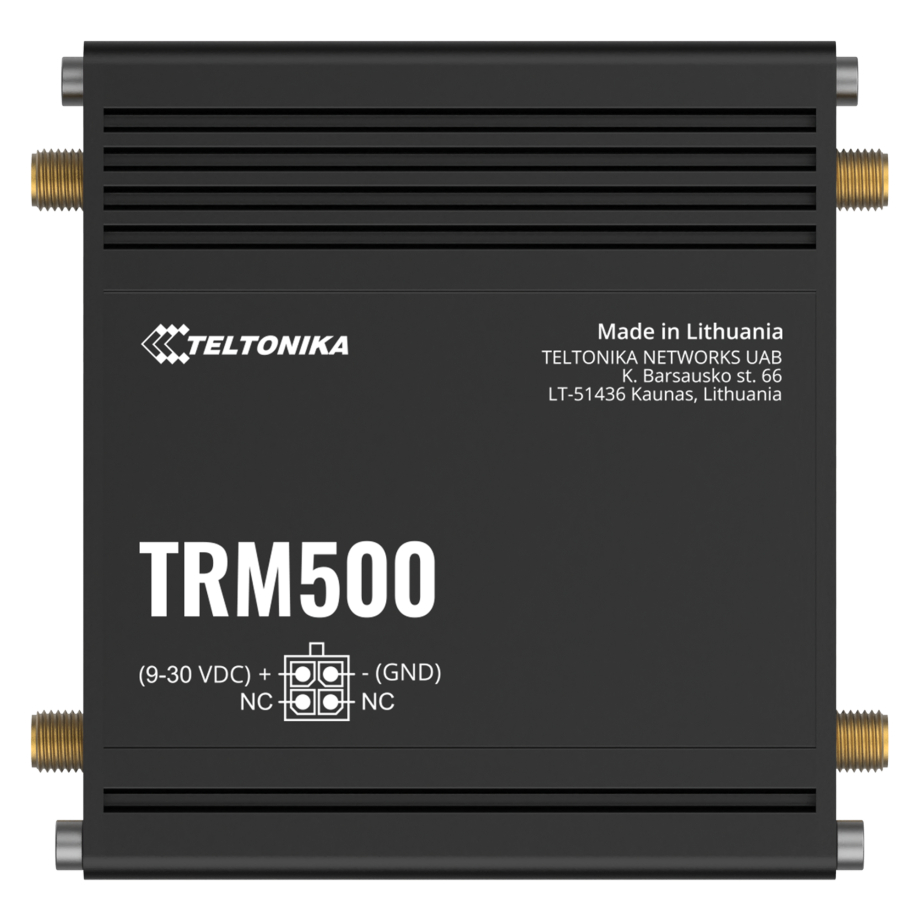

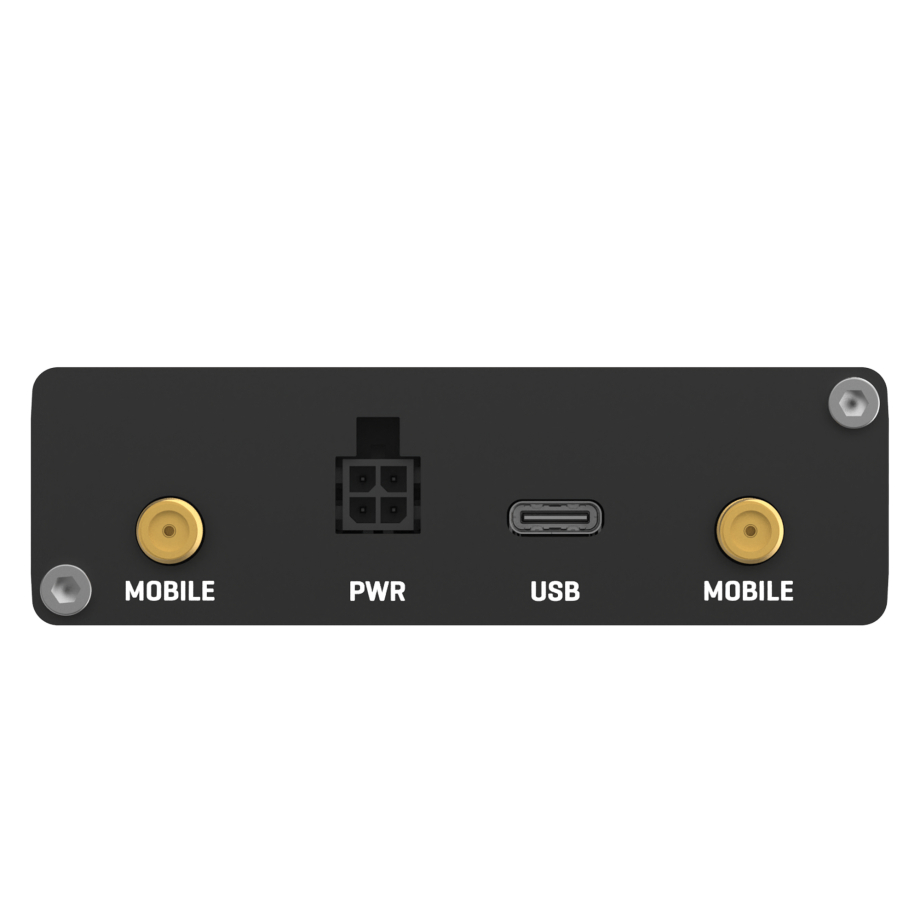

The TRM500 is engineered for versatile power management, supporting multiple input methods to accommodate different deployment scenarios. It includes a USB Type-C port, capable of both data transfer and powering the device at 5V DC, 3A, offering a convenient plug-and-play solution. In addition, a 4-pin industrial DC power connector allows a wide input voltage range from 9 to 30 VDC, with built-in protections against overvoltage, reverse polarity, and electrical surges. This ensures the modem can operate reliably across various industrial setups, from factory floors to office installations. With a maximum power consumption of 12 W under load and idle consumption under 5 W, the TRM500 remains energy-efficient, reducing operating costs during continuous operation. Such flexibility simplifies deployment and ensures consistent performance in diverse power environments.

The Teltonika TRM500 is built to endure the challenges of industrial environments while remaining compact and lightweight for easy integration. Its anodized aluminum housing provides durability, while the IP30 ingress protection ensures safety against dust and accidental contact. Measuring just 83 × 25 × 85.4 mm and weighing 94.5 g, the modem can be conveniently installed in confined spaces using DIN rail, wall, or flat surface mounting options (all require additional mounting kit). The device operates reliably within a temperature range of –40 °C to +75 °C and can withstand up to 90% humidity without condensation, making it suitable for indoor industrial conditions. The combination of its rugged construction, flexible mounting, and environmental resilience makes the TRM500 an ideal long-term solution for enterprises seeking a dependable 5G modem that ensures uninterrupted operation in critical IoT applications.
