4G MIMO 4x4 Cellular Stud Antenna, 3.5 dBi, IP67, SMA Male

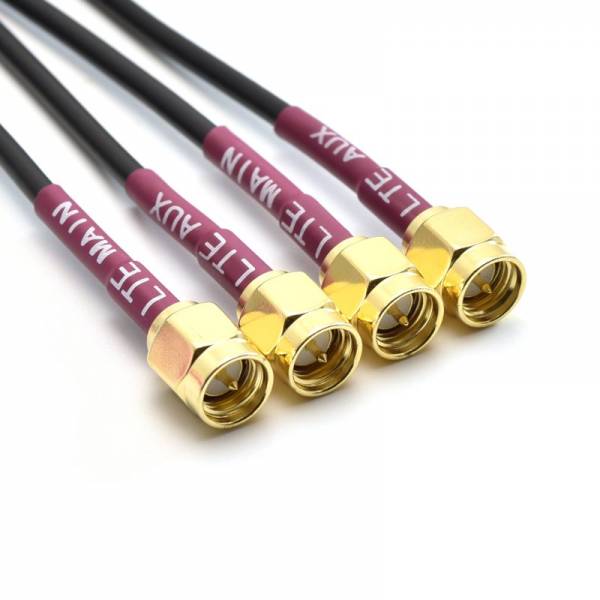

The JCG605LM4 is an LTE MIMO combination antenna that integrates four separate antenna elements in one enclosure. Each element covers 698–960 MHz and 1710–2690 MHz, supporting compatible cellular equipment across lower and higher LTE bands. The four-element layout provides the antenna configuration required for MIMO connections, while linear polarization, 50-ohm impedance, and 3.5 dBi gain define the main electrical characteristics of every path. Four individual cables leave the base so each antenna feed can connect separately to matching modem or router interfaces. RG174 is the standard cable option, with alternatives also available, and the assembly can be supplied with SMA, FAKRA, or other connector types to suit the target equipment.

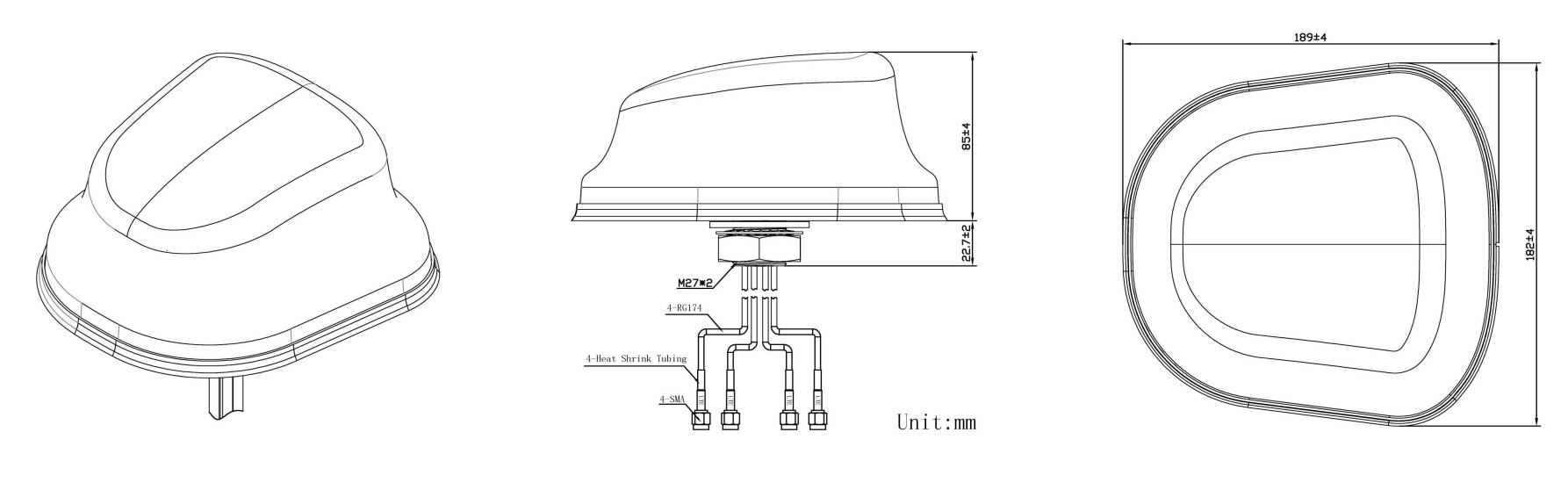

The antenna is enclosed in an ABS housing and supports adhesive or magnetic mounting, giving installers two ways to secure it to a suitable surface. Its integrated form avoids positioning four separate external antennas and keeps all elements within one compact assembly. IP67 ingress protection supports installation where resistance to dust and water exposure is required. The JCG605LM4 operates from -40 °C to +85 °C and at relative humidity levels up to 95%, allowing use across varied environmental conditions. It is also rated to withstand vibration from 10 to 55 Hz at 1.5 mm amplitude for two hours, which is relevant for locations exposed to movement or mechanical stress. RoHS compliance confirms that the product meets the specified environmental requirements.
