Teltonika TSW210 Industrial Ethernet Switch

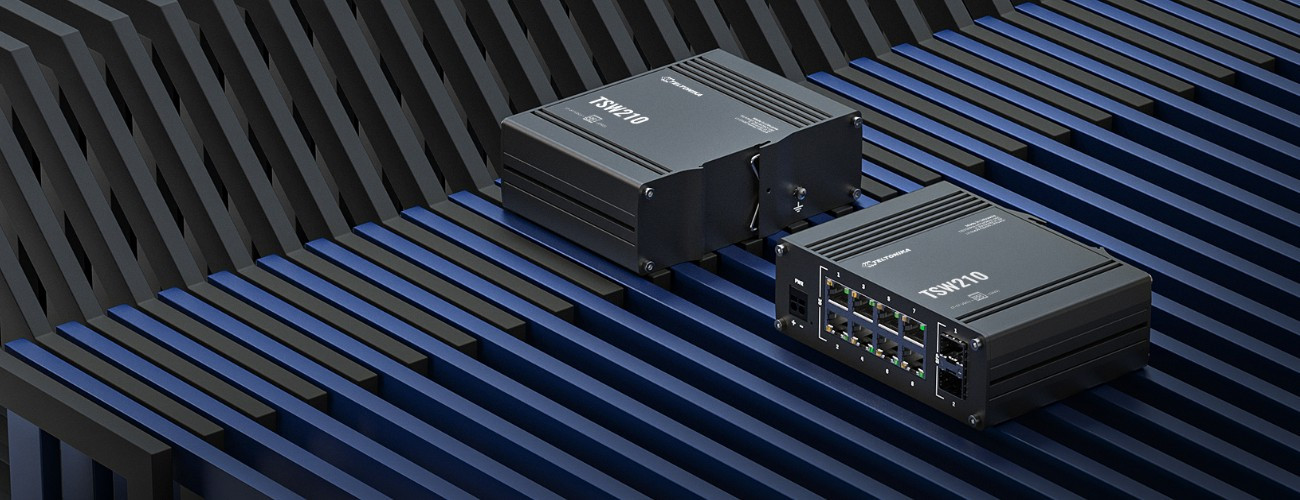

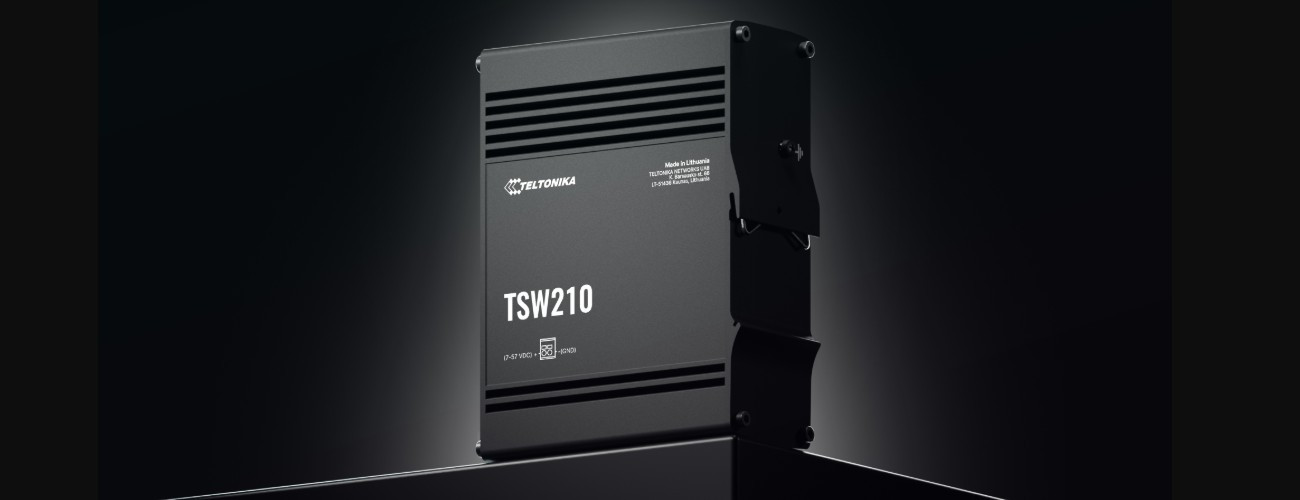

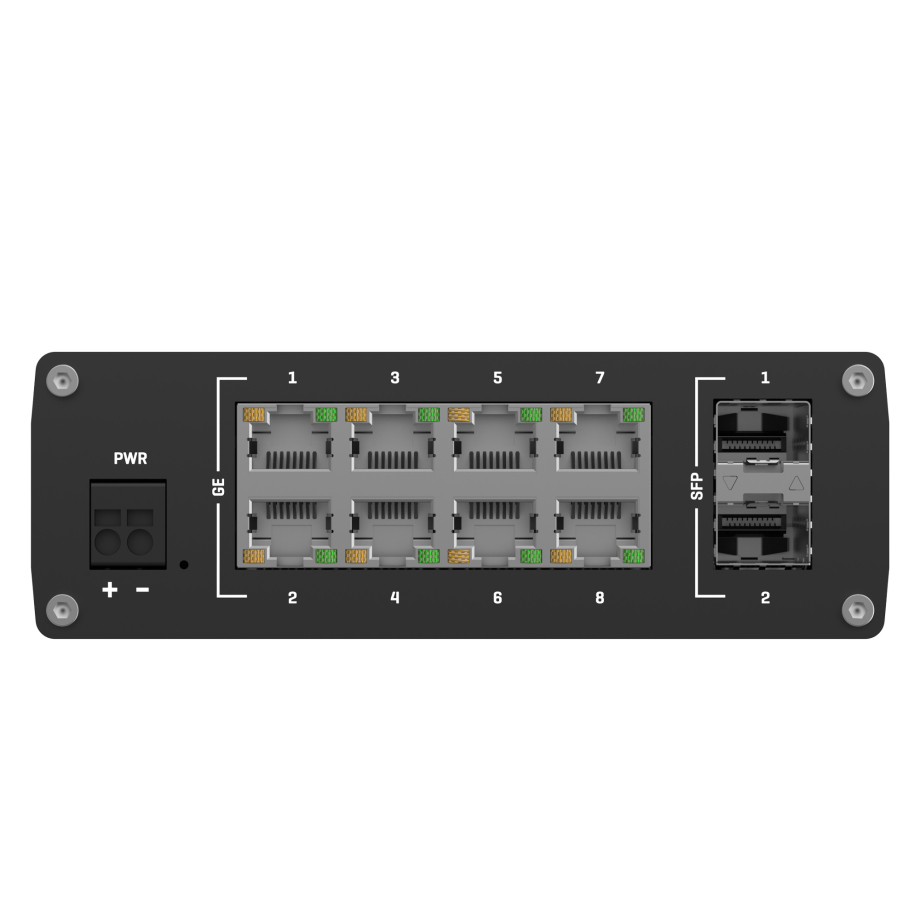

The Teltonika TSW210 Industrial Ethernet Switch is engineered to deliver reliable high-speed connectivity in demanding professional environments. It comes equipped with eight Gigabit Ethernet ports (10/100/1000 Mbps) supporting auto MDI/MDIX, which eliminates the need for crossover cables and simplifies installation. In addition, two SFP slots provide long-distance fiber connectivity, making it suitable for large-scale networks where copper cabling is insufficient. With a non-blocking switching capacity of 20 Gbps, the device can handle significant amounts of data without delays. The built-in 128 KB packet buffer and 2,000-entry MAC address table further optimize network efficiency. Support for jumbo frames up to 9216 bytes ensures smooth handling of large data flows, including high-resolution video, industrial telemetry, or sensor data. Designed in line with IEEE 802.3 standards, the TSW210 ensures seamless interoperability, outstanding reliability, and stability even under heavy network loads in industrial settings.

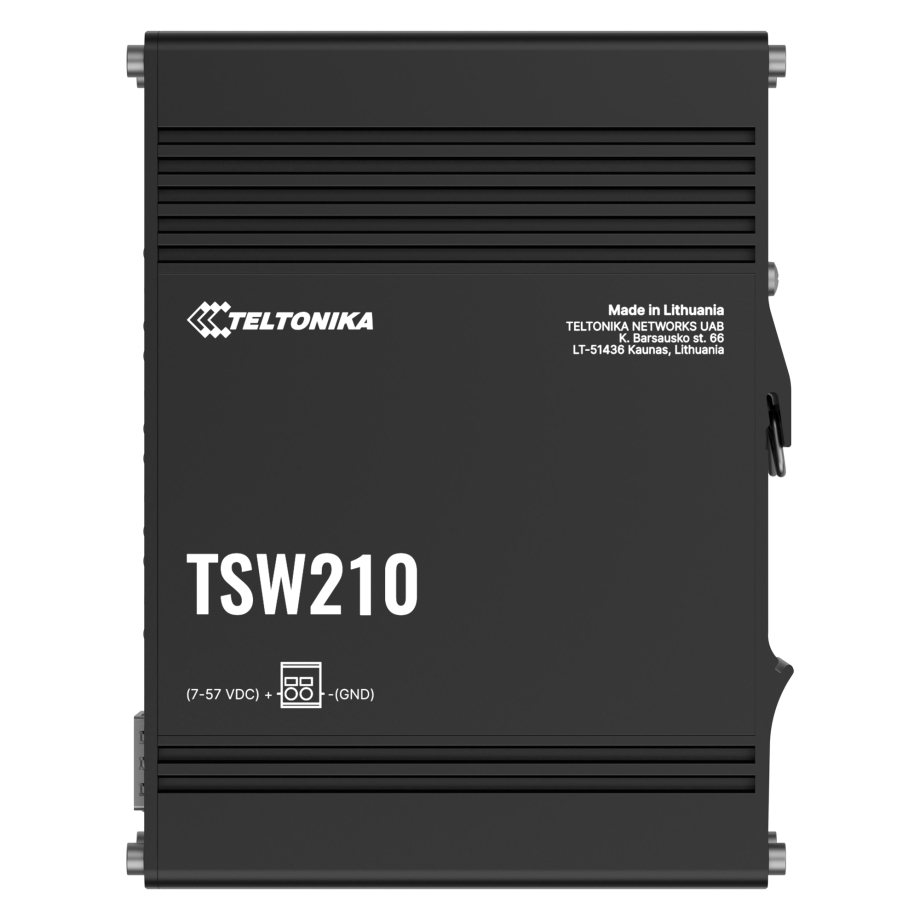

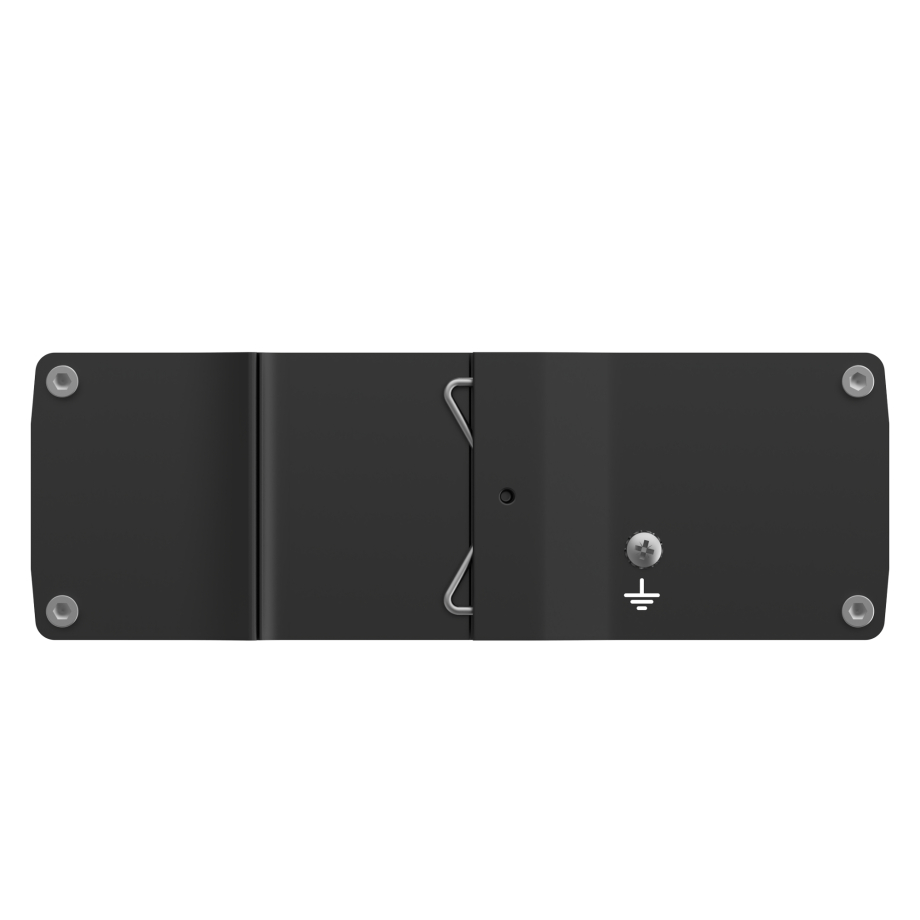

The TSW210 is built with flexible power options that make it adaptable to diverse industrial applications. For power, the TSW210 uses a wide 7–57 V DC input via a robust 2-pin industrial connector, providing stable operation in various industrial setups. Its low energy consumption enhances efficiency, requiring only 1.03 W at idle and up to 3.71 W at full load, which ensures stable operation while minimizing operating costs. The switch is easy to install thanks to the included DIN-rail mounting bracket, while optional wall or flat-surface mounting accessories provide additional installation flexibility. For safe deployment, a dedicated grounding screw protects against electrical surges, while clear LED indicators for power, Ethernet, and SFP ports provide instant status feedback. These features make integration and daily maintenance straightforward and reliable.

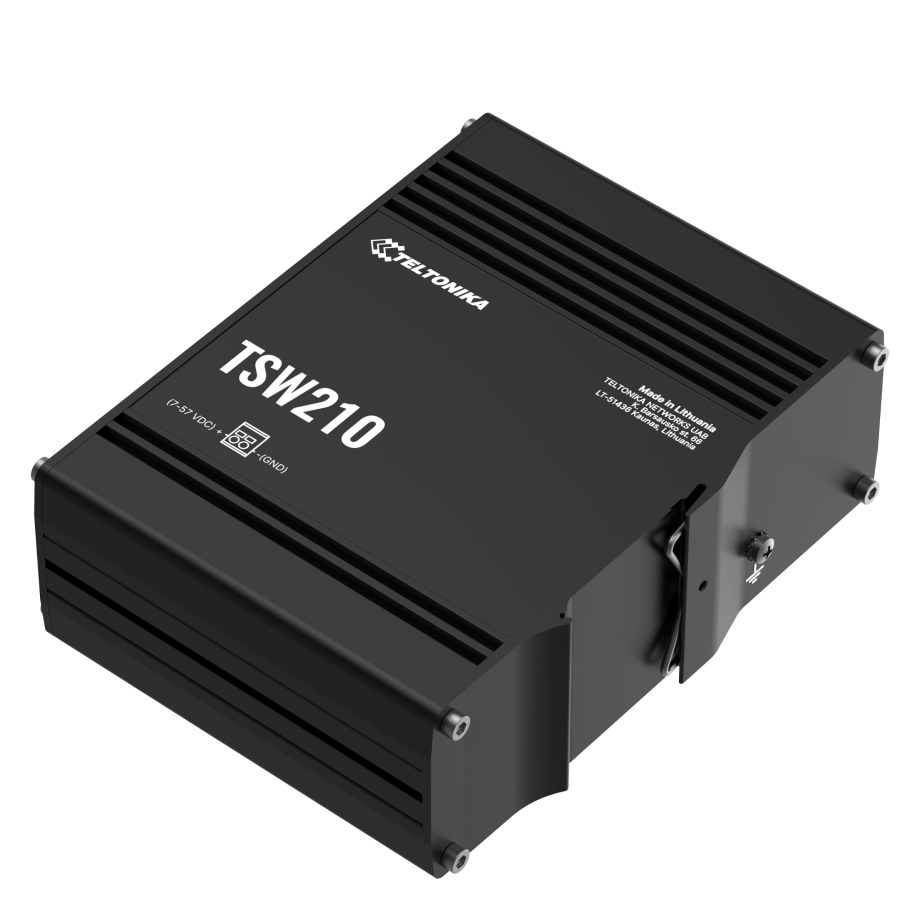

Durability and resilience are key strengths of the Teltonika TSW210, making it a trusted choice for industrial use. The device features a full aluminum housing with an IP30 protection rating, offering solid resistance against dust, debris, and accidental contact. Compact yet practical, the switch measures 132 × 44.2 × 95.1 mm and weighs only 500 g, allowing installation even in limited spaces while ensuring strong physical protection. It is designed to operate reliably under extreme environmental conditions, withstanding temperatures from –40 °C to +75 °C and humidity levels between 10% and 90% (non-condensing). Certified by international standards including CE, UKCA, FCC, IC, RCM, CB, and EAC, the switch guarantees compliance for global deployment. With its combination of rugged construction, broad environmental tolerance, and compact dimensions, the TSW210 is an excellent long-term networking solution for automation, transportation, energy, and other industrial sectors.
