Ubiquiti airMAX Rocket Prism 5AC

Ubiquiti Elite Distributor
In stock
?
203.80
In stock
?
203.80

plug

Brand

Ubiquiti

Manufacturer part number

RP-5AC-Gen2

Warranty
?

12 months

EAN

0817882020268
Ubiquiti Elite Distributor

Detailed description

The Ubiquiti airMAX Rocket Prism 5AC, with the model manufacture part number RP-5AC-Gen2, is a pinnacle of wireless networking technology, specifically designed for deployment in outdoor environments to facilitate high-capacity, high-performance wireless communication. This device is a part of Ubiquiti Networks' esteemed airMAX ac series, which leverages the latest in Wi-Fi technology to offer unparalleled efficiency and throughput in both Point-to-Point (PtP) and Point-to-Multipoint (PtMP) configurations.
At the heart of the Rocket Prism 5AC capabilities is Ubiquiti's proprietary airMAX ac technology, which employs a sophisticated TDMA protocol to significantly enhance bandwidth and throughput efficiency over the 5 GHz frequency band. This technology enables the device to support 500+ Mbps of real TCP/IP throughput, a remarkable achievement that caters to the demanding bandwidth requirements of modern applications such as HD video streaming, VoIP, and online gaming. Furthermore, the device incorporates Ubiquiti's airPrism technology, a groundbreaking feature designed to improve signal clarity in congested areas. By actively filtering out RF interference, the airPrism technology ensures that the Rocket Prism 5AC Gen2 delivers superior performance even in environments saturated with wireless signals.
The Rocket Prism 5AC is fully compatible with Ubiquiti's airMAX ac antennas, including sector, dish, and Omni antennas designed for the 5 GHz band. For in-depth specifications, including compatibility and operational parameters, please use provided technical datasheet.
One of the distinguishing features of the RP-5AC-Gen2 is its integration of Ubiquiti's airPrism technology. This innovative feature significantly enhances signal clarity and bandwidth efficiency by actively filtering out interference, thereby improving the Signal-to-Noise Ratio (SNR) even in densely populated areas where wireless signals are often congested. By focusing on minimizing interference from both within and outside the operating channel, airPrism technology ensures that the Rocket Prism 2AC can deliver high-speed, stable connections across its network.

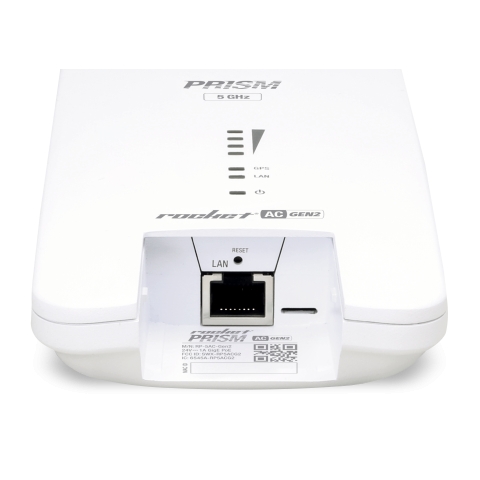

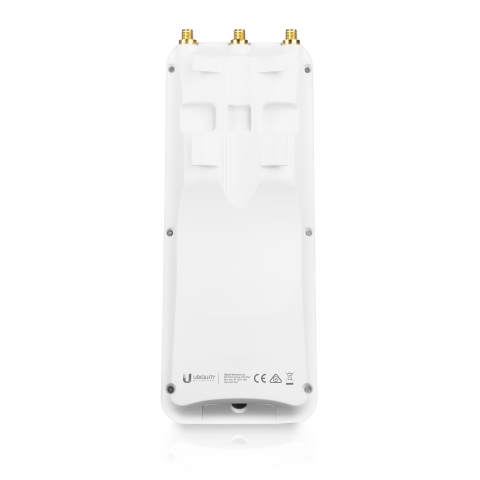

Its physical construct consists of a die-cast aluminum enclosure measuring 88 x 40 x 230 mm and weighing 400 g, ensuring durability and reliability in outdoor environments. The device is equipped with a Gigabit Ethernet (GbE) RJ45 port for network connectivity, and it supports Passive Power over Ethernet (PoE) for flexible deployment options. The inclusion of (2) RP-SMA waterproof RF connectors and (1) GPS waterproof connector underlines its readiness for comprehensive outdoor networking tasks. Power is supplied through a 24V, 1A gigabit PoE adapter, and it operates within a voltage range of 18–27V DC, with a maximum power consumption of 9.5W. From a durability standpoint, the Rocket Prism 5AC Gen2 is built to withstand the rigors of outdoor deployment. Its robust, weather-resistant design ensures that the device operates reliably across a wide range of environmental conditions, making it an ideal choice for creating wireless networks in virtually any outdoor setting. Whether deployed in a hot, sun-exposed location or a cold, wet environment, the device maintains its performance integrity and longevity.
Ubiquiti's proprietary airMAX ac technology and airPrism technology are integral to its design, providing advanced RF filtering and enhanced performance even in high-density areas. The device also includes a suite of management and security features, such as WPA2 AES only encryption, Quality of Service (QoS) support, and Ubiquiti-specific features like traffic shaping with burst support. Its operating frequency spans from 5150–5875 MHz worldwide, with additional dedicated management radio frequencies, ensuring versatile and efficient network management across different regions Additionally, the inclusion of GPS Sync technology in the device underscores its suitability for large-scale network deployments, enabling multiple Rocket Prism 5AC units to operate in harmony, synchronized to maximize network efficiency and minimize interference.
The RP-5AC-Gen2 is equipped with a dedicated management Wi-Fi radio, allowing for straightforward setup and ongoing management without requiring a direct wired connection. This innovative feature simplifies the deployment process and enables network administrators to adjust settings or troubleshoot issues directly from their mobile devices or laptops, enhancing operational efficiency. The device runs on Ubiquiti's airOS 8, an advanced operating system designed to provide network operators with a comprehensive suite of tools for configuring, monitoring, and optimizing their wireless networks. airOS 8 boasts an intuitive user interface and powerful features, including detailed analytics, RF diagnostics, and advanced configuration options, which empower network administrators to fine-tune their networks for maximum performance and reliability.

Application scenarios

The Ubiquiti airMAX Rocket Prism 5AC Gen2 (RP-5AC-Gen2) is tailored for a broad spectrum of application scenarios, excelling in delivering high-speed, reliable wireless connectivity across vast distances. In urban environments, its cutting-edge airPrism technology ensures that the device stands out by mitigating interference from other signals, which is a common challenge in densely populated areas. This makes it an ideal solution for ISPs and network operators looking to provide high-quality, uninterrupted internet service to customers in residential and commercial zones. The device's ability to support high-throughput, low-latency connections makes it perfect for applications requiring robust bandwidth, such as video streaming, VoIP, and online gaming. Furthermore, its dedicated management Wi-Fi radio simplifies setup and ongoing network adjustments, making it a breeze for network administrators to maintain optimal performance.
In rural or remote areas, the Rocket Prism 5AC Gen2's capabilities are equally valuable. Its long-range connectivity, facilitated by the 5 GHz frequency band and high-gain antenna compatibility, offers a lifeline for communities and businesses located far from traditional wired internet infrastructures. For applications like remote surveillance, environmental monitoring, and providing internet access to distant research stations or agricultural sites, the RP-5AC-Gen2 provides a reliable, high-performance link. The device's rugged, weather-resistant design ensures consistent operation in diverse environmental conditions, from scorching deserts to freezing mountaintops, offering a versatile solution for connecting the unconnected and bridging digital divides across varied landscapes.

Compare with similar products


Wireless Standard
802.11ac
802.11ac
802.11ac
2.4GHz Radio Rate
300 Mbps
5GHz Radio Rate
450 Mbps
450 Mbps
Ethernet Ports
1 x 1 Gbps
1 x 1 Gbps
1 x 1 Gbps
RF Connectors
1 x SMA Female, 2 x RP-SMA Female
1 x SMA Female, 2 x RP-SMA Female
2 x RP-SMA Female
Chipset
Atheros MIPS 74Kc
Atheros MIPS 74Kc, 720 MHz
Atheros MIPS 74Kc, 720 MHz
RAM
128 MB
128 MB
128 MB
Max Power Consumption
9.5 W
8.5 W
8.5 W

Wireless Standard 802.11ac
802.11ac
802.11ac
2.4GHz Radio Rate
300 Mbps
5GHz Radio Rate450 Mbps
450 Mbps
Ethernet Ports1 x 1 Gbps
1 x 1 Gbps
1 x 1 Gbps
RF Connectors1 x SMA Female, 2 x RP-SMA Female
1 x SMA Female, 2 x RP-SMA Female
2 x RP-SMA Female
ChipsetAtheros MIPS 74Kc
Atheros MIPS 74Kc, 720 MHz
Atheros MIPS 74Kc, 720 MHz
RAM128 MB
128 MB
128 MB
Max Power Consumption9.5 W
8.5 W
8.5 W
