QuSpot for RUT955/956/906

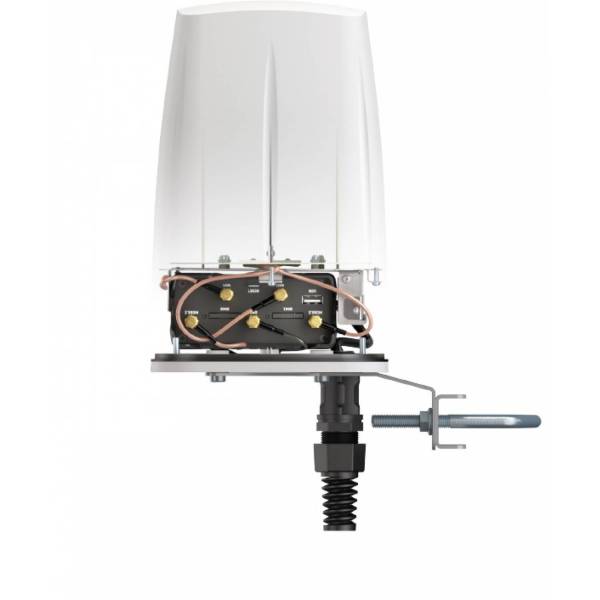

QuSpot for Teltonika RUT956/RUT955 is an outdoor antenna enclosure that combines multi-band 5G/LTE omnidirectional antennas, dual-band Wi-Fi omnidirectional antennas, an embedded GPS antenna, and space for installing a compatible Teltonika router in a single integrated unit. It is designed for Teltonika RUT956 and RUT955 routers and is also suitable for RUT906, creating a complete outdoor solution where the router and antenna system are housed together instead of being installed as separate components. This integrated approach simplifies outdoor deployments while keeping all wireless components within one enclosure. The antenna system is intended for both fixed and mobile installations, including industrial facilities, CCTV systems, public hotspots, yachts, boats, campers, and RVs.

Its omnidirectional design provides signal coverage in every horizontal direction, making it suitable for installations where the direction of the available mobile network cannot be predicted or where directional antennas are impractical. The integrated cellular antennas operate across a broad frequency range from 0.6 to 6.35 GHz and support numerous LTE and 5G frequency bands, allowing the enclosure to work with different mobile network deployments. Built-in dual-band Wi-Fi antennas provide wireless coverage in both the 2.4 GHz and 5 GHz bands, while the integrated GPS antenna adds positioning capability without requiring additional external antennas. Together, these antenna systems create a compact outdoor platform that combines cellular, Wi-Fi, and GPS connectivity within one enclosure.

The enclosure is designed for reliable outdoor operation and features an IP68 protection rating that helps protect the installed router and antenna system from demanding environmental conditions. It supports operation in temperatures from -40°C to 80°C, making it suitable for year-round deployment in locations exposed to changing weather. The enclosure is constructed from ABS, aluminum, and PTFE, combining durable materials with an integrated antenna design intended for outdoor networking applications. Installation is supported on both walls and masts, allowing the enclosure to be adapted to different deployment scenarios.

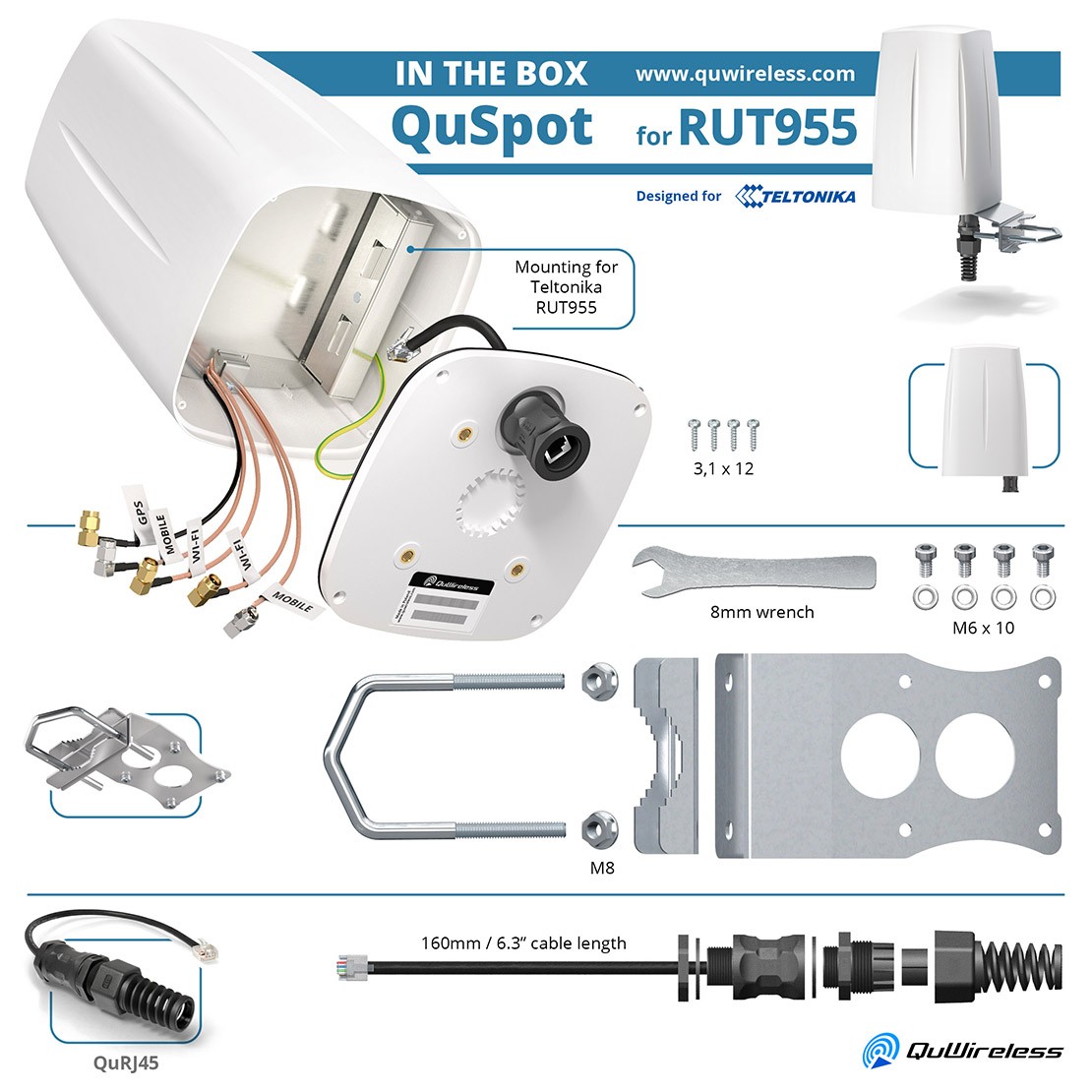

The mounting system accommodates mast diameters from 25 to 66 mm, providing compatibility with commonly used outdoor poles. Measuring 160 × 160 × 240 mm and weighing 1.5 kg, the enclosure offers sufficient internal space for a compatible Teltonika router while maintaining a compact form factor. An RJ45 connector enables the Ethernet connection to pass through the enclosure for a protected wired network connection. The 5G/LTE and Wi-Fi antenna systems both use vertical polarization and 50 Ω impedance, while their 360° azimuth beamwidth supports omnidirectional operation. Passive PoE support allows power and data to be supplied through the same Ethernet cable when used with an appropriate installation, reducing cabling requirements and helping create a clean, integrated outdoor networking solution.
