Manufacturer part number
DS-3E0109P-E
Warranty
?
12 months
EAN
6941264013976
Hikvision Switch DS-3E0109P-E PoE
This item has been discontinued
We recommend to use the product presented below
Hikvision Switch DS-3E0310HP-E
DS-3E0310HP-E
Available alternatives
Detailed description

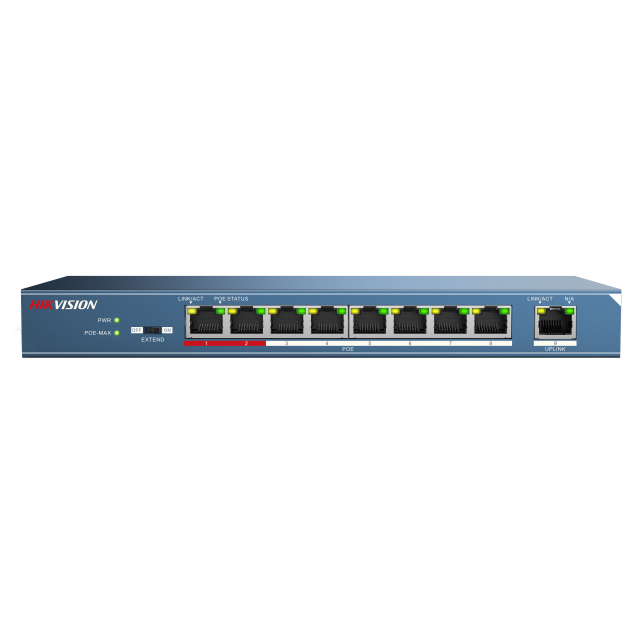

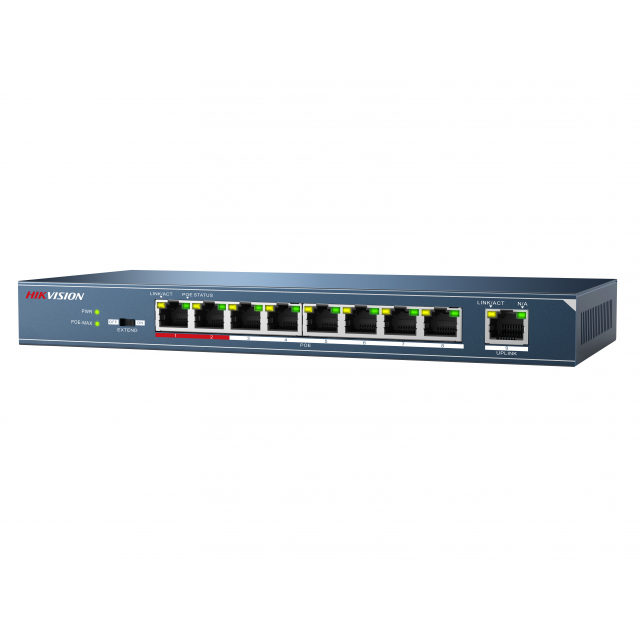

DS-3E0109P-E is a Layer 2 100 Mbps unmanaged PoE switch. Based on wire-speed forwarding, the switch supports Ethernet PoE power supply and extend mode. The power supply distance reaches as long as 300 m. It also supports prior and stable transmission of the important surveillance area video when connected to the high-priority ports. DS-3E0109P-E is equipped with PoE, Link / Act and power LED indicators. Provides 6kV overvoltage protection for increased reliability in harsh environments. A built-in surge protector protects the switch from sudden lightning surge. Fanless design, metal body. The VIP port ensures important data transmission when network congestion occurs.
Specifications
Interfaces
RJ45 Ports
(9) 100 Mbps
Number of PoE Ports
8 pcs
PoE Out Standards
802.3af (PoE), 802.3at (PoE+)
Power
Power Method
AC/DC Adapter
Power Supply
External AC/DC Adapter
Max Power Consumption
120 W
Power Connector
DC Plug 2.1 x 5.5 mm
PSU / POE adapter
48 V DC 2.5 A
Physical Parameters
Material
Metal
Dimensions
170 × 27.6 × 93.1 mm
Weight
0.350 kg
Operating Temperature
-10 °C to 55 °C
Environment
Indoor
Mounting Method
Tabletop
Form Factor
Desktop
Package Contains
External Power Supply
Included
