Teltonika TSW040 Industrial 8-Port PoE+ Ethernet Switch

The Teltonika TSW040 is an unmanaged 8-port PoE+ switch designed to combine high-speed Ethernet connectivity with reliable power delivery. Each RJ45 port supports 10/100 Mbps data rates and is capable of providing up to 30 W of Power over Ethernet (PoE), making it suitable for powering devices such as IP cameras, wireless access points, and VoIP phones without additional power adapters. The switch fully supports IEEE 802.3af and 802.3at standards, ensuring compatibility with a wide range of devices. All ports feature auto MDI/MDIX functionality, which automatically detects and corrects cable connections, eliminating the need for crossover cables. With a total PoE budget of 240 W, the TSW040 can simultaneously supply power to multiple devices. Its compact and rugged design makes it ideal for industrial and commercial installations, where both reliable connectivity and power delivery are essential for continuous operation.

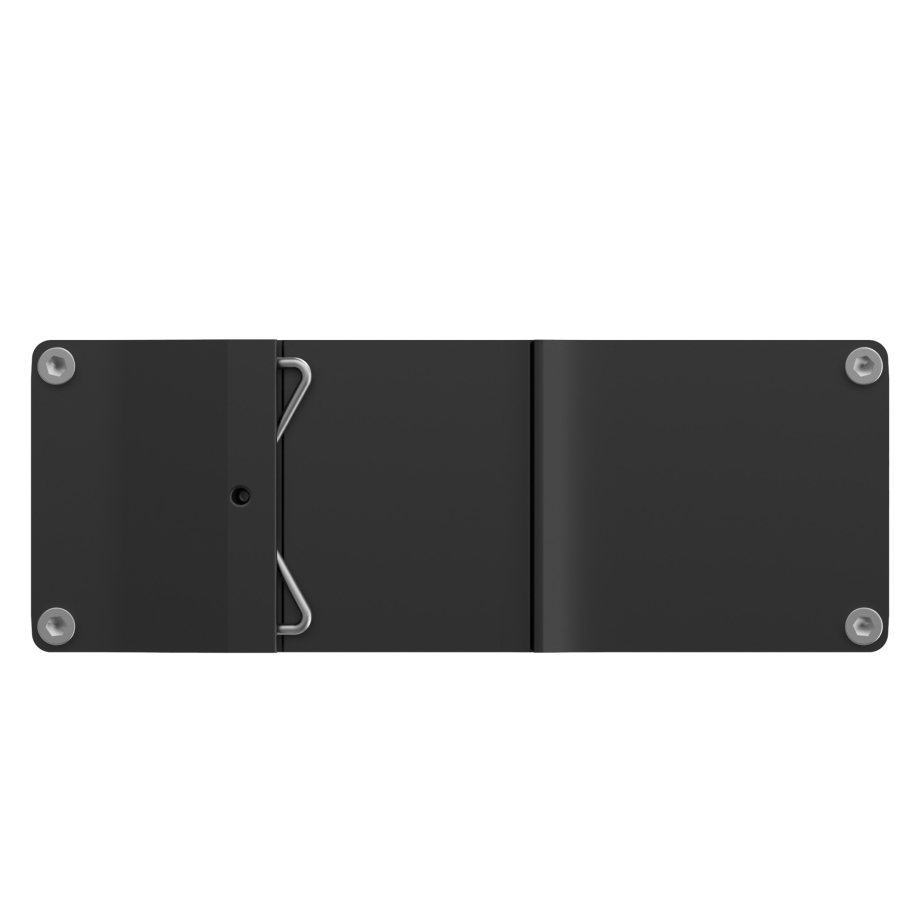

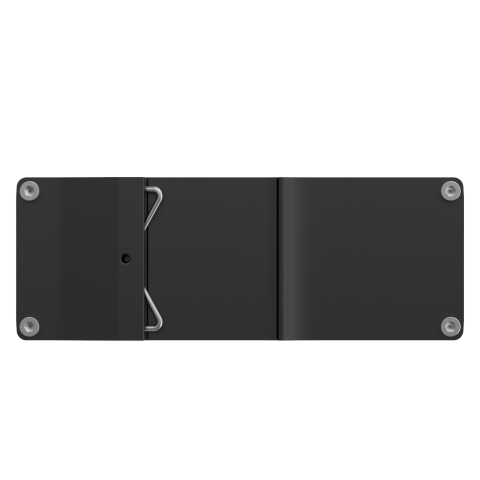

The TSW040 switch is powered via a 2-pin industrial DC connector, accepting a broad voltage range from 7 to 57 V DC. This wide input range ensures compatibility with various industrial and commercial power systems. The device also features integrated DIN rail mounting brackets, providing a secure and convenient installation in control cabinets, server racks, or electrical panels. This design is particularly useful for industrial applications, where stable mounting and space optimization are critical. The combination of flexible power input and reliable mounting ensures that the switch can operate without interruption even in environments with fluctuating power conditions. Additionally, the switch is designed to withstand typical electrical disturbances, offering long-term stability and low maintenance requirements. Its thoughtful engineering guarantees ease of deployment while maintaining consistent performance in demanding network setups, making it a reliable backbone for Ethernet-powered devices in industrial networks.

The TSW040 is built to provide continuous and reliable performance in industrial environments. It operates across a wide temperature range of -40°C to +75°C, making it suitable for locations with significant temperature variations. The switch has IP30-rated protection, safeguarding its internal components from dust and debris commonly found in industrial and utility rooms. Its high-performance architecture includes support for jumbo frames up to 9216 bytes, enabling efficient transmission of large data packets for video, telemetry, and automation applications. With a 128 KB packet buffer and a total non-blocking bandwidth of 20 Gbps, the TSW040 can handle high volumes of network traffic with minimal latency. These features, combined with its compact size, robust build, and energy-efficient operation, make it ideal for industrial automation, smart buildings, and commercial networks, ensuring long-term durability and uninterrupted connectivity for multiple connected devices.
