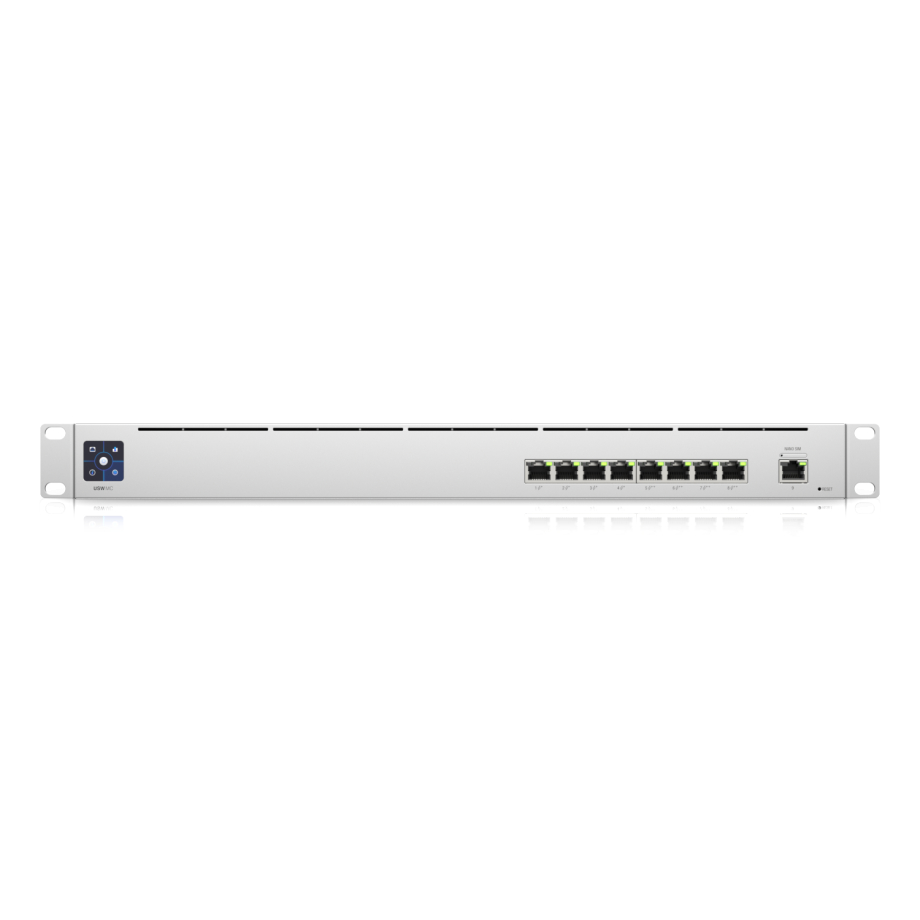

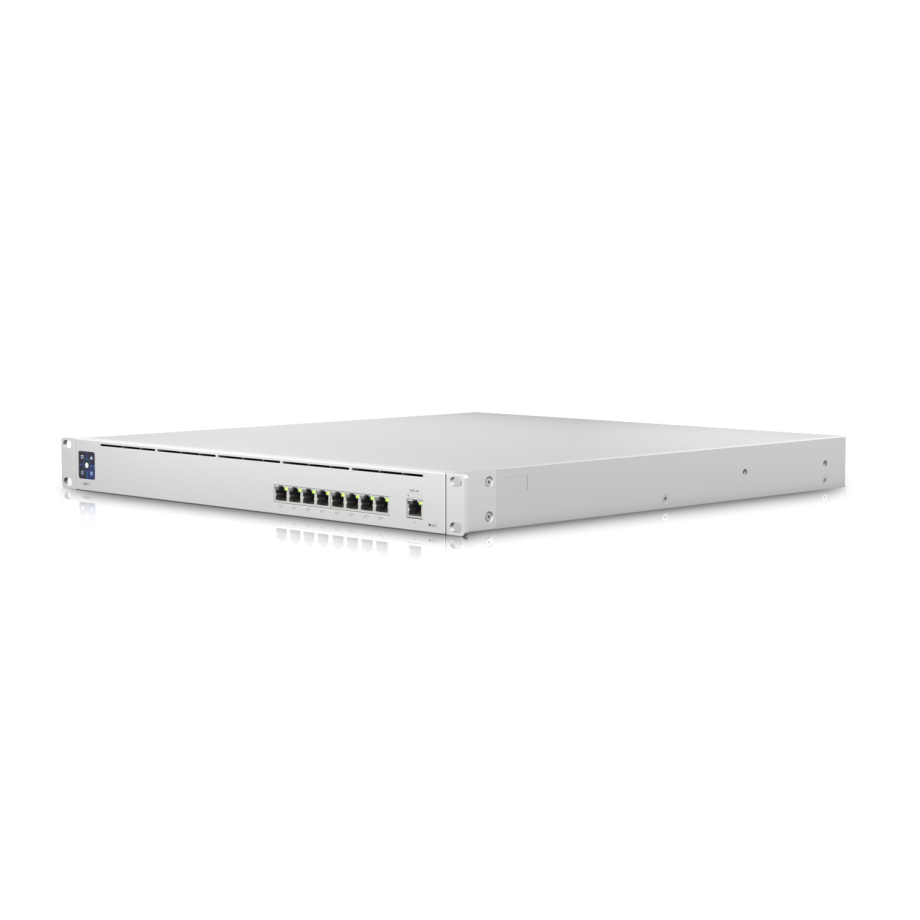

Ubiquiti UniFi Switch Mission Critical

Ubiquiti Elite Distributor
out of stock
?
812.08
out of stock
?
812.08

Manufacturer part number

USW-Mission-Critical

Warranty

?
12 months

EAN

0810010079879

Category

Ubiquiti Elite Distributor

Available alternatives

Ubiquiti UISP Switch Pro

Ubiquiti UISP Switch Pro

400.96 €364.71 €
-9%
Milesight Industrial PoE Switch 200W

Milesight Industrial PoE Switch 200W

118.20 €100.67 €
-15%
Milesight Industrial PoE Switch 400W

Milesight Industrial PoE Switch 400W

167.53 €135.99 €
-19%

Detailed description

Uninterrupted Power

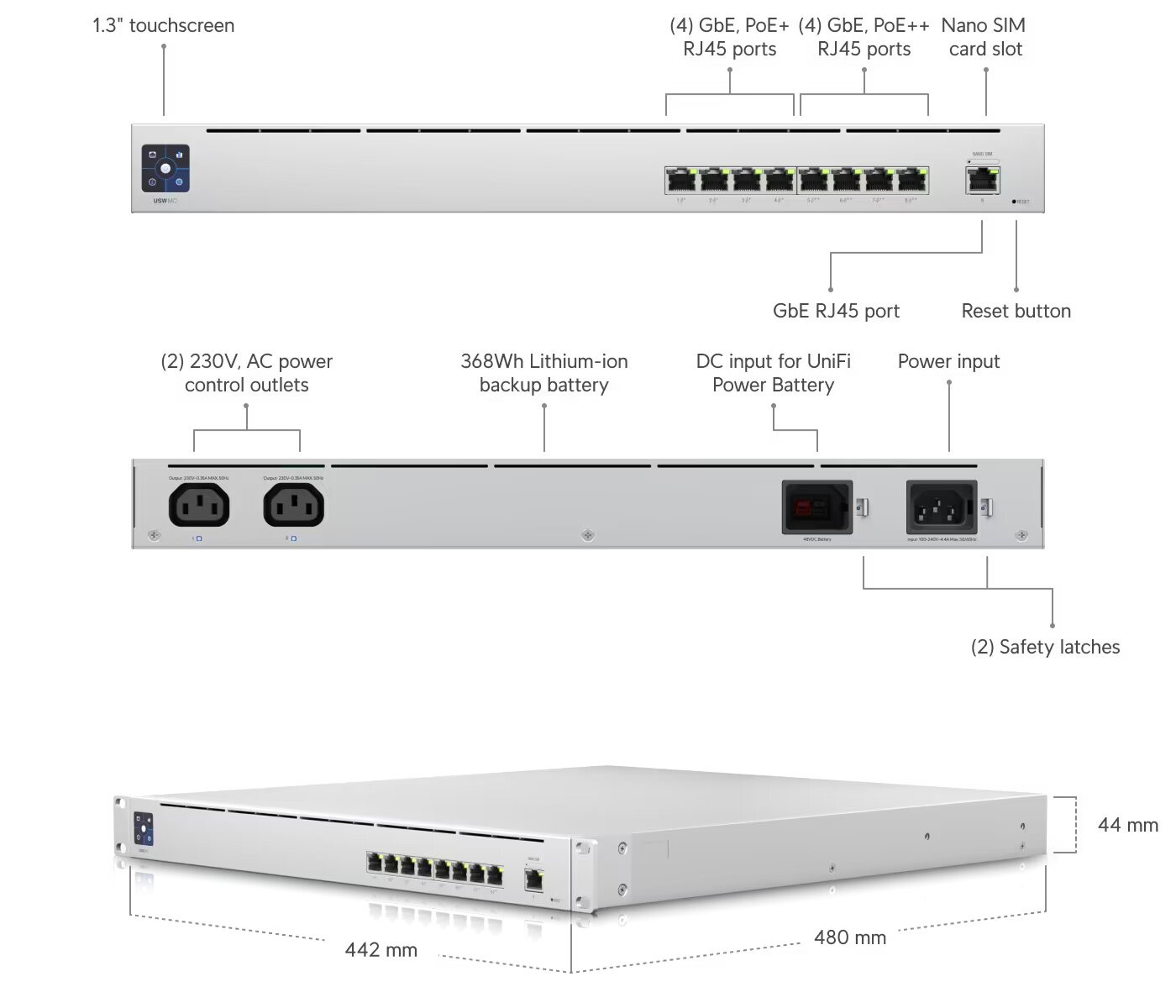

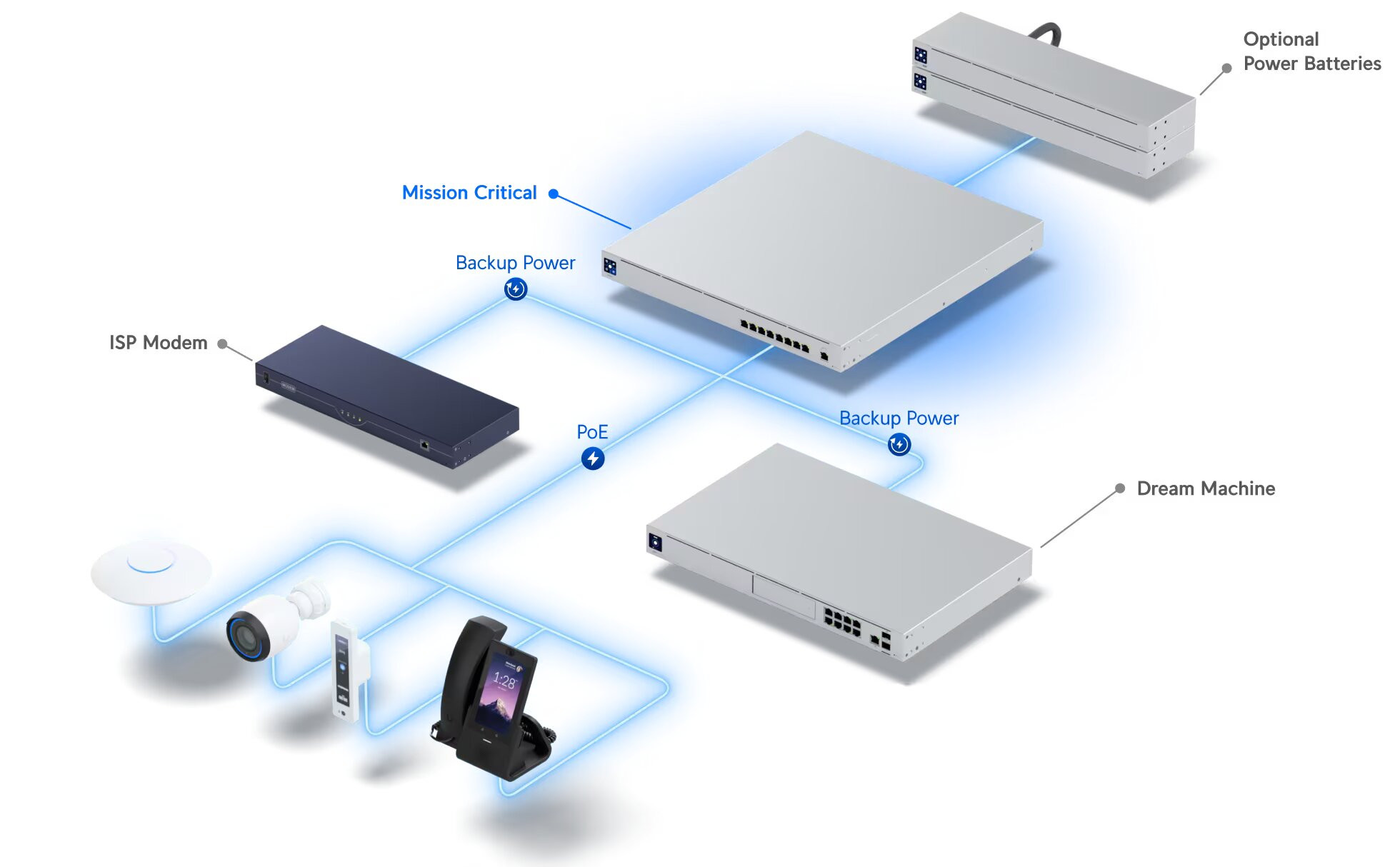

The Ubiquiti UniFi Switch Mission Critical (USW-Mission-Critical) combines advanced networking with integrated power backup to ensure your network stays online during power interruptions. Equipped with a built-in 368Wh lithium-ion battery, this switch delivers uninterrupted Power over Ethernet (PoE) to up to eight devices, including high-powered access points and surveillance cameras. Featuring 4 GbE PoE+ ports and 4 GbE PoE++ ports with a total PoE budget of 120W, it supports devices requiring up to 64W per port. Two 230V AC outputs provide additional power options for connected equipment. This switch includes a dedicated GbE uplink for seamless network integration. Designed for critical applications such as enterprise environments, emergency response, and service providers, it minimizes downtime and guarantees continuous connectivity even during outages, securing your essential network infrastructure.
/images/catalogue/description/1910/missioncritical1-653a621a86d5a-1960x1214.jpg

Powerful Layer 2 Features

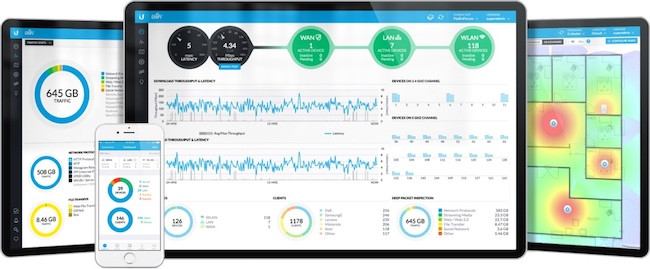

With a high switching capacity of 18 Gbps and non-blocking throughput of 9 Gbps, the USW-Mission-Critical delivers exceptional Layer 2 switching performance ideal for demanding network environments. It supports key features including VLAN tagging, port isolation, Storm Control to mitigate broadcast storms, IGMP Snooping for efficient multicast handling, and link aggregation to increase bandwidth and redundancy. The switch includes a 1.3" touchscreen LCM display for easy monitoring and configuration on site. Full compatibility with UniFi Network software (version 6.2.26 and later) enables centralized management and detailed network visibility through a user-friendly dashboard. This powerful combination of hardware and software gives IT administrators full control over network traffic while ensuring reliability and scalability for mission-critical deployments.
/images/catalogue/description/1910/1767180cb34bac608fddcacc673e78f983f552de-659508da7826b-650x269.jpg

Rugged and Reliable Design

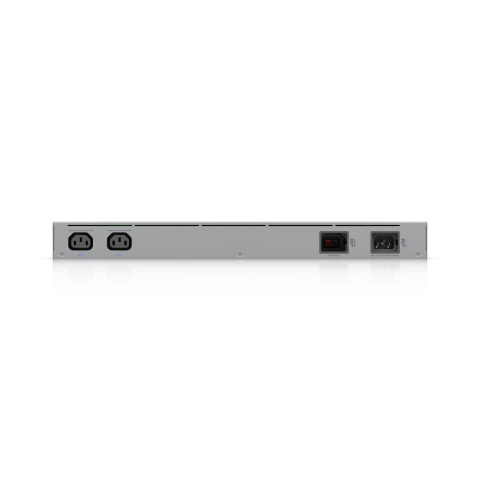

Engineered to perform in challenging conditions, the USW-Mission-Critical operates reliably within a wide temperature range of -5°C to +40°C. It supports universal AC input from 100 to 240V and external 48V DC battery inputs for flexible power options and redundancy. The system can deliver a maximum power consumption of 240W including PoE and AC output, while consuming just 50W without PoE. Its rack-mount 1U form factor fits easily into existing infrastructure. This switch complies with NDAA requirements, ensuring security and reliability for government and enterprise use. The integrated battery backup and intelligent power management provide peace of mind by maintaining critical network devices and connected services even during extended power failures, making it a top choice for mission-critical networking environments.

Compare with similar products


Ethernet Ports
9 x 1 Gbps
PoE Out Ports
8 x 802.3af (PoE), 802.3at (PoE+), 802.3bt
SFP Ports
8 x 10G SFP+
28 x 10G SFP+, 4 x 25G SFP28
Management
Ethernet
Ethernet
Ethernet
Max Power Consumption
240 W
30 W
100 W
Operating Temperature
-5 °C to 40 °C
-5 °C to 40 °C
-5 °C to 40 °C
Dimensions
442 x 480 x 44 mm
443 x 120 x 44 mm
442 x 325 x 44 mm
Weight
9 kg
2.74 kg
4.7 kg
Mounting Method
RackMount
RackMount
RackMount

Ethernet Ports 9 x 1 Gbps
PoE Out Ports 8 x 802.3af (PoE), 802.3at (PoE+), 802.3bt
SFP Ports
8 x 10G SFP+
28 x 10G SFP+, 4 x 25G SFP28
ManagementEthernet
Ethernet
Ethernet
Max Power Consumption240 W
30 W
100 W
Operating Temperature -5 °C to 40 °C
-5 °C to 40 °C
-5 °C to 40 °C
Dimensions442 x 480 x 44 mm
443 x 120 x 44 mm
442 x 325 x 44 mm
Weight 9 kg
2.74 kg
4.7 kg
Mounting Method RackMount
RackMount
RackMount

Compatible products

Specifications

Interfaces

RJ45 Ports

Number of PoE Ports

8 pcs
PoE Out Standards

802.3af (PoE), 802.3at (PoE+), 802.3bt
Management

Ethernet

Power

Power Method

AC/DC Adapter
Power Supply

External AC/DC Adapter
Supported Input Voltage

100 - 240 V AC
Max Power Consumption

240 W
Battery Type

Li-Ion
Internal Battery Energy

368 Wh

Physical Parameters

Material

Galvanized steel
Dimensions

442 x 480 x 44 mm
Weight

9 kg
Operating Temperature

-5 °C to 40 °C
Environment

Indoor
Mounting Method
