Ubiquiti UniFi Switch 16 150W
This item has been discontinued
We recommend to use the product presented below

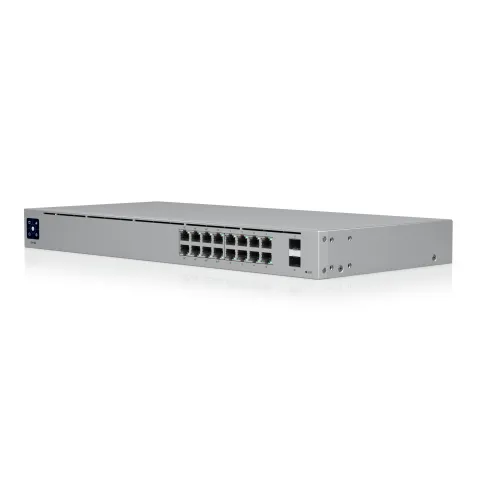

Ubiquiti UniFi Switch Standard 16 PoE
USW-16-POE
Available alternatives
Detailed description
The Switch 16 PoE 150Wis a fully managed switch with 16 Gigabit Ethernet RJ45 ports and two 1G SFP ports. Each of the switch's ports can provide either PoE+ or configurable, 24V passive PoE to UniFi access points or other PoE devices. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Versatile Mounting Options
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.
Versatile Port Configuration
Sixteen Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
Integration with UniFi Network Application
The UniFi Switch integrates with the UniFi Network software for centralized management of your UniFi devices.
Advanced Enterprise Switching
The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.
Compare with similar products
| Ethernet Ports | ||||||
| 16 x 1 Gbps | 24 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | 48 x 1 Gbps | 8 x 1 Gbps | |
| PoE Out Ports | ||||||
| 16 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | |||
| SFP Ports | ||||||
| 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP | |
| Management | ||||||
| Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | |
| Max Power Consumption | ||||||
| 150 W | 25 W | 250 W | 56 W | 500 W | 150 W | |
| Operating Temperature | ||||||
| -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 45 °C | |
| Dimensions | ||||||
| 443 x 43 x 221 mm | 443 x 43 x 221 mm | 485 x 43.7 x 285.4 mm | 443 x 43 x 286 mm | 485 x 43.7 x 374.6 mm | 235 x 43 x 204 mm | |
| Weight | ||||||
| 2.89 kg | 2.6 kg | 4.7 kg | 3.65 kg | 6.1 kg | 1.65 kg | |
| Mounting Method | ||||||
| RackMount, Wall Mount | RackMount | RackMount | RackMount | RackMount | Wall Mount, Tabletop | |
| Ethernet Ports | 16 x 1 Gbps | 24 x 1 Gbps | 24 x 1 Gbps | 48 x 1 Gbps | 48 x 1 Gbps | 8 x 1 Gbps |
| PoE Out Ports | 16 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 24 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 48 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | 8 x Passive PoE, 802.3af (PoE), 802.3at (PoE+) | ||
| SFP Ports | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP, 2 x 10G SFP+ | 2 x 1G SFP |
| Management | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet |
| Max Power Consumption | 150 W | 25 W | 250 W | 56 W | 500 W | 150 W |
| Operating Temperature | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 40 °C | -5 °C to 45 °C |
| Dimensions | 443 x 43 x 221 mm | 443 x 43 x 221 mm | 485 x 43.7 x 285.4 mm | 443 x 43 x 286 mm | 485 x 43.7 x 374.6 mm | 235 x 43 x 204 mm |
| Weight | 2.89 kg | 2.6 kg | 4.7 kg | 3.65 kg | 6.1 kg | 1.65 kg |
| Mounting Method | RackMount, Wall Mount | RackMount | RackMount | RackMount | RackMount | Wall Mount, Tabletop |
Technical Specs / Datasheet
Compatible products
Specifications
Interfaces
RJ45 Ports
(16) 1 Gbps
Number of PoE Ports
16 pcs
PoE Out Standards
Passive PoE, 802.3af (PoE), 802.3at (PoE+)
SFP Ports
(2) 1G SFP
Communication Interface
RJ45
Management
Ethernet
Power
Power Supply
Internal PSU
Supported Input Voltage
100 - 240 V AC
Max Power Consumption
150 W
Physical Parameters
Number of Rack Units
1U
Color
Silver
Dimensions
443 x 43 x 221 mm
Weight
2.89 kg
Operating Temperature
-5 °C to 40 °C
Environment
Indoor
Mounting Method
RackMount, Wall Mount
Form Factor
Rack-mounted 19"
