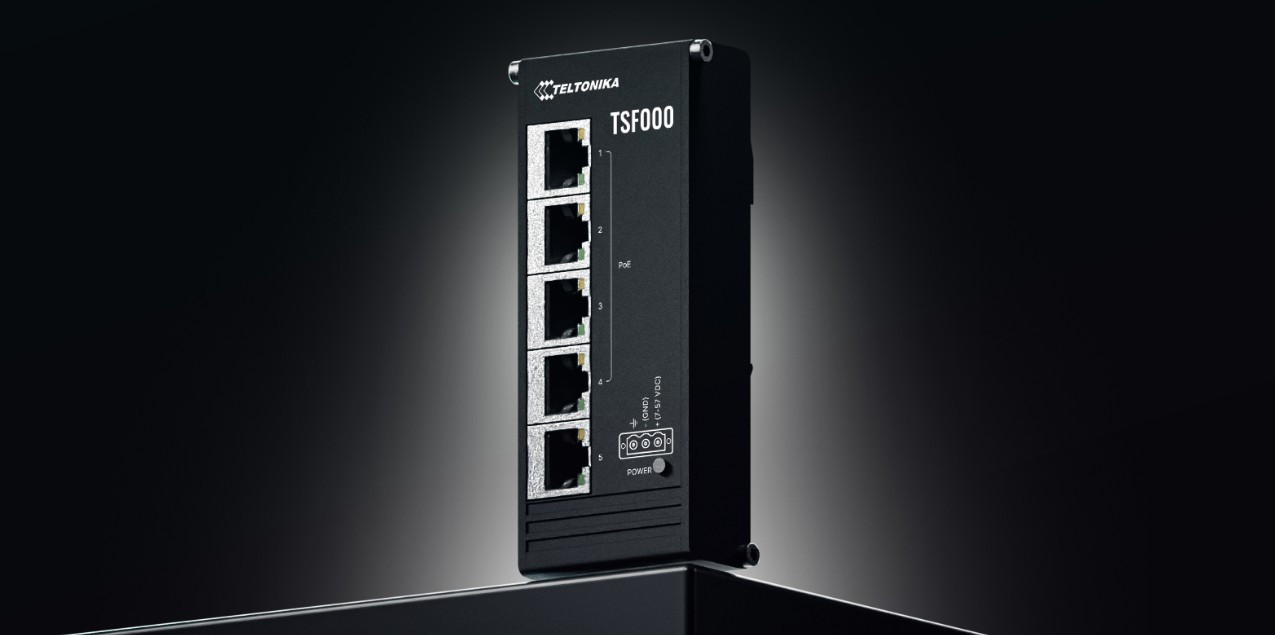

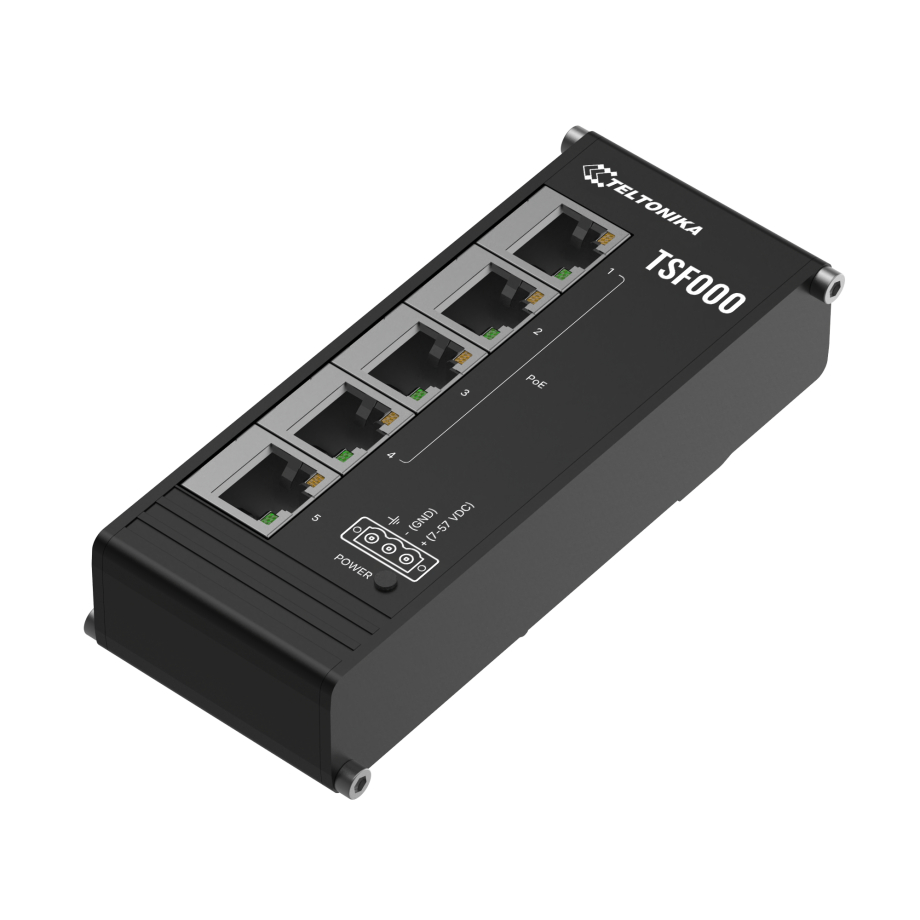

Teltonika TSF000 Low Profile PoE+ Switch

The Teltonika TSF000 is a compact unmanaged Ethernet switch designed to deliver both power and data in demanding industrial and commercial environments. Engineered for space-constrained installations, this low-profile device combines efficient networking with PoE+ capability, making it an ideal solution for powering and connecting multiple devices from a single unit. The switch features 5 Fast Ethernet ports (10/100 Mbps), with 4 ports supporting PoE+ output, allowing simultaneous data transmission and power delivery over standard Ethernet cables. Each PoE port can provide up to 30 W of power, with a total PoE power budget of 120 W, making it suitable for devices such as IP cameras, wireless access points, IoT gateways, and other network-enabled equipment. As an unmanaged switch, the TSF000 offers plug-and-play operation without the need for configuration, making deployment simple and efficient.

It automatically detects connected devices and adjusts power and data flow accordingly, ensuring stable and reliable performance. Auto MDI/MDIX support eliminates the need for crossover cables, further simplifying installation. The TSF000 is particularly well-suited for industrial automation, smart city deployments, surveillance systems, and office networks where both connectivity and power are required. By combining multiple functionalities into a single compact device, it reduces infrastructure complexity and installation costs. With its ability to power up to four devices while maintaining stable data communication, the TSF000 offers a practical and efficient solution for modern network environments where reliability and simplicity are essential.

The TSF000 is designed to ensure stable and efficient data transmission across connected devices, making it suitable for both industrial and commercial networking scenarios. Despite its compact size, the switch delivers reliable switching performance with a non-blocking bandwidth of up to 10 Gbps, ensuring smooth data flow even when multiple devices are active simultaneously. To support efficient packet handling, the device includes a 128 KB packet buffer, which helps manage bursts of network traffic and prevents data loss during peak usage. The MAC address table supports up to 2,000 entries, allowing the switch to handle a large number of connected devices in dynamic environments.

The TSF000 also supports jumbo frames up to 9216 bytes, enabling more efficient data transmission for applications that require large data packets, such as video streaming or industrial data transfer. Compliance with IEEE 802.3 standards, including 802.3i, 802.3u, 802.3x, 802.3az, 802.3p, and 802.3Q, ensures compatibility with a wide range of network devices and systems. For industrial applications, the switch offers optional support for Profinet Class A, allowing seamless integration into industrial automation environments and communication with PLC systems and other industrial controllers. With its combination of stable switching performance, protocol compatibility, and industrial support features, the TSF000 is well-suited for applications requiring consistent and dependable network operation.

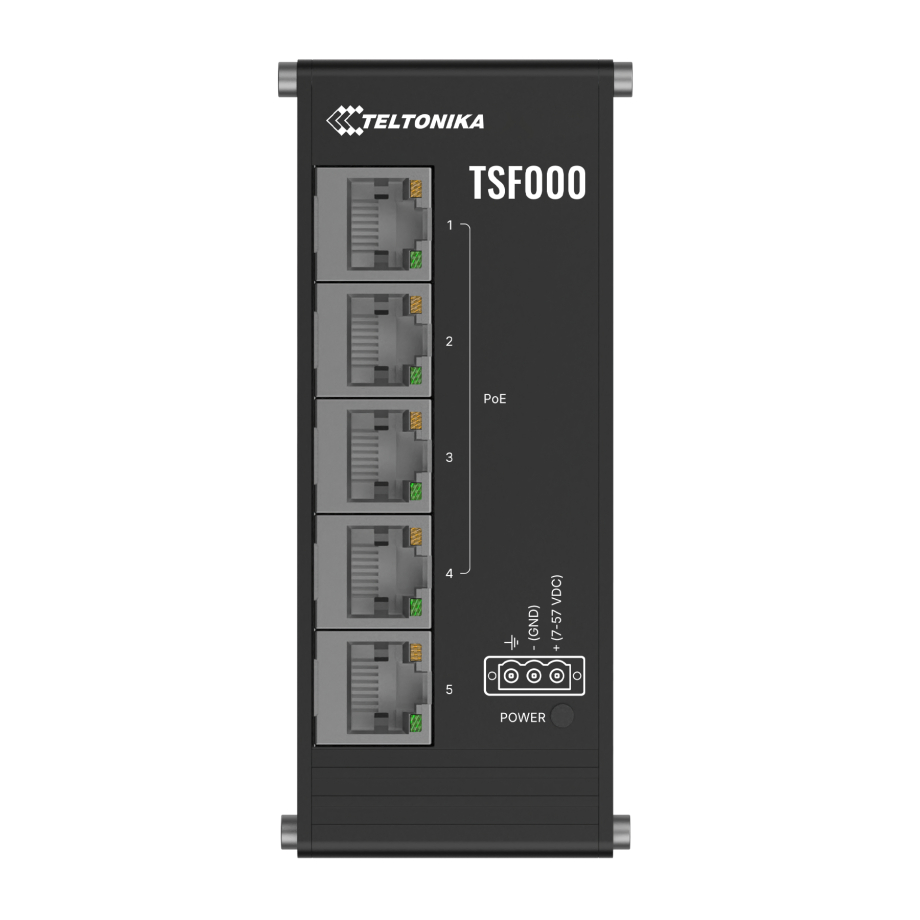

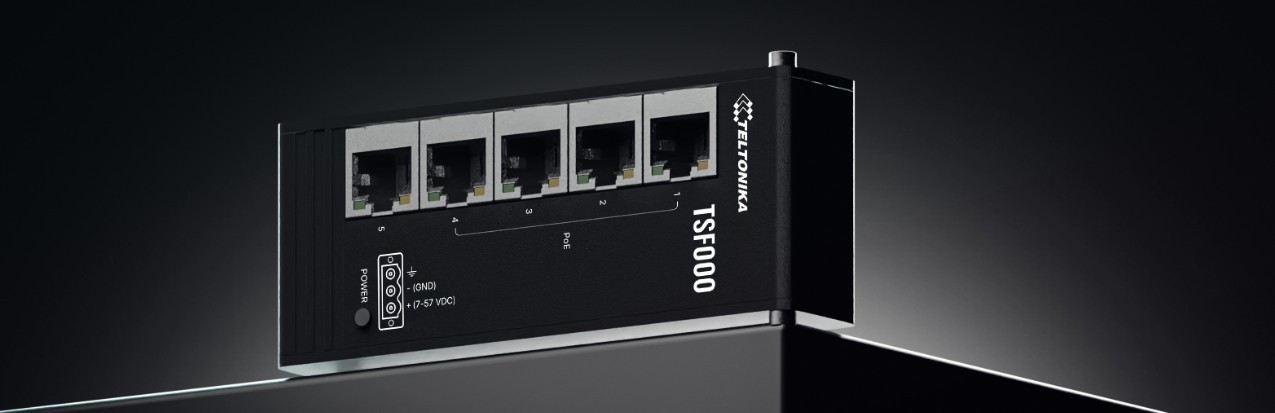

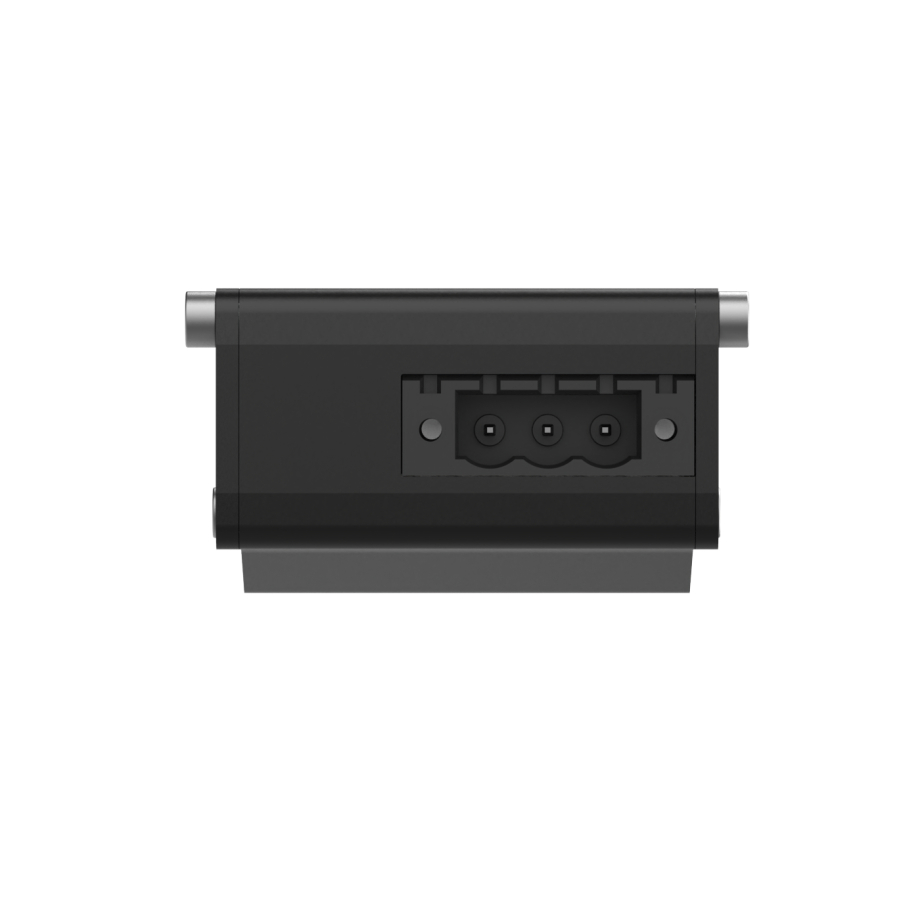

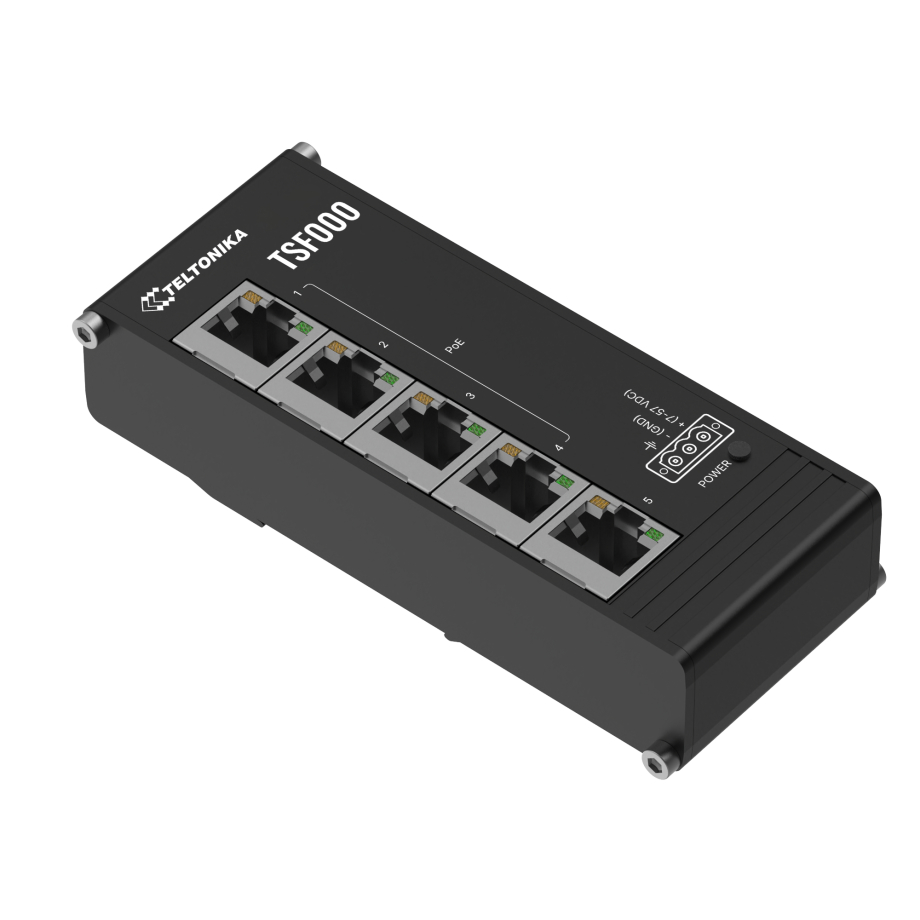

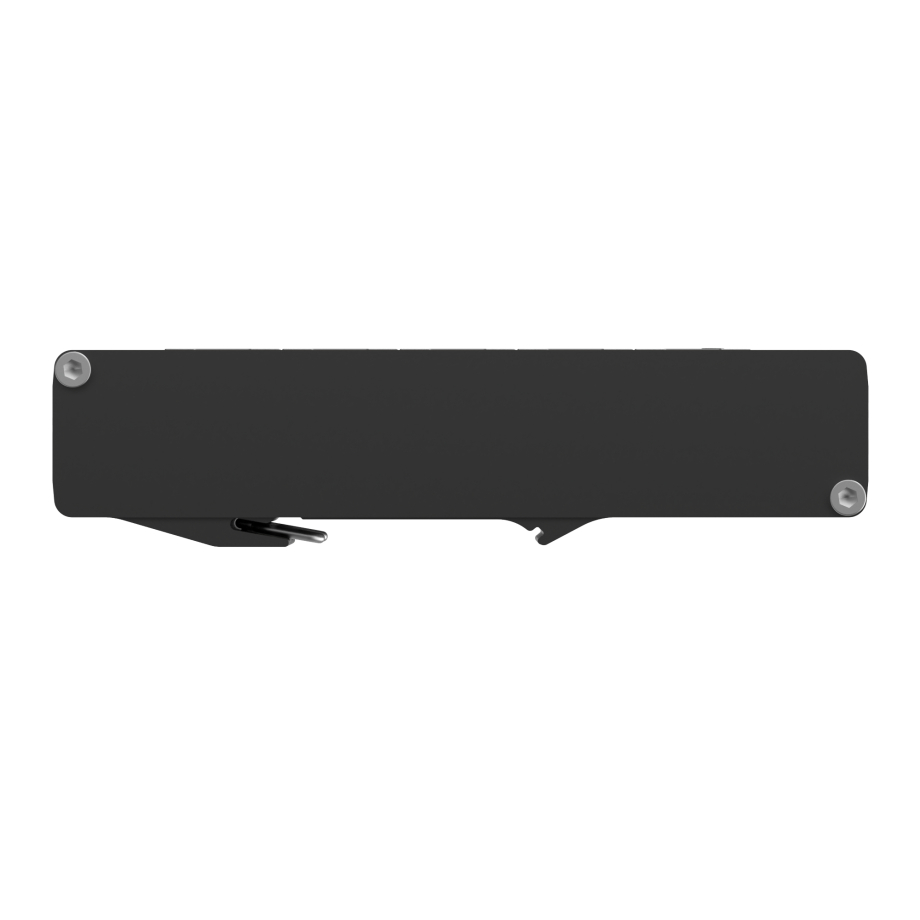

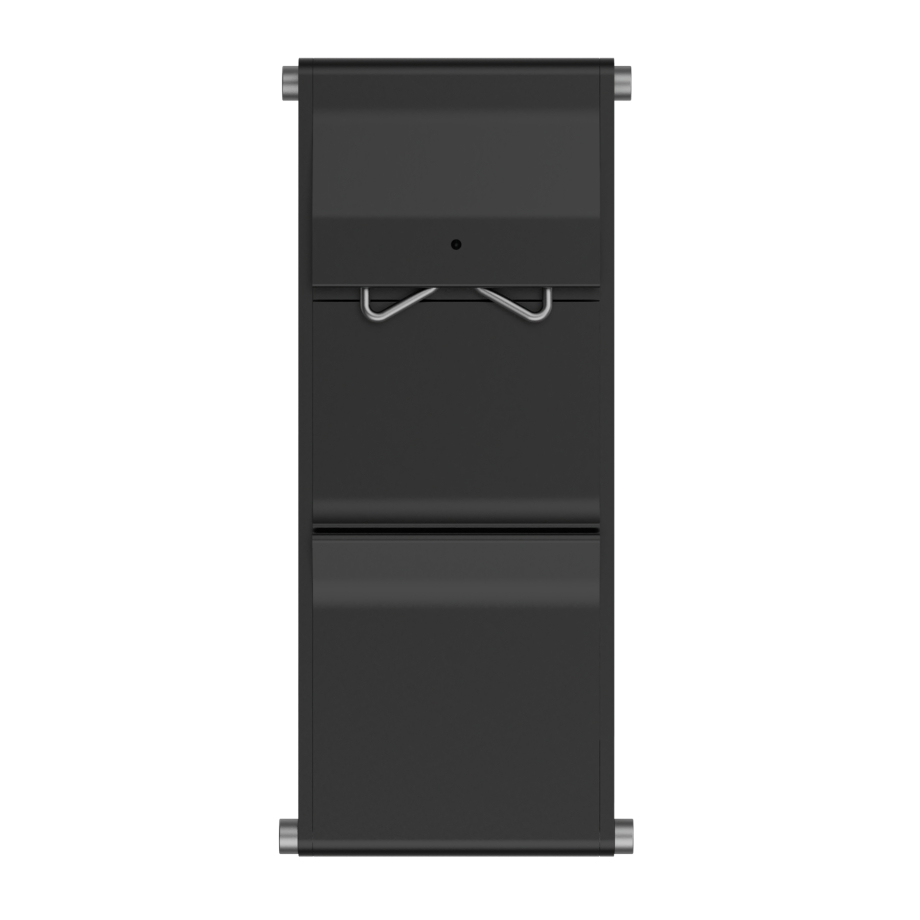

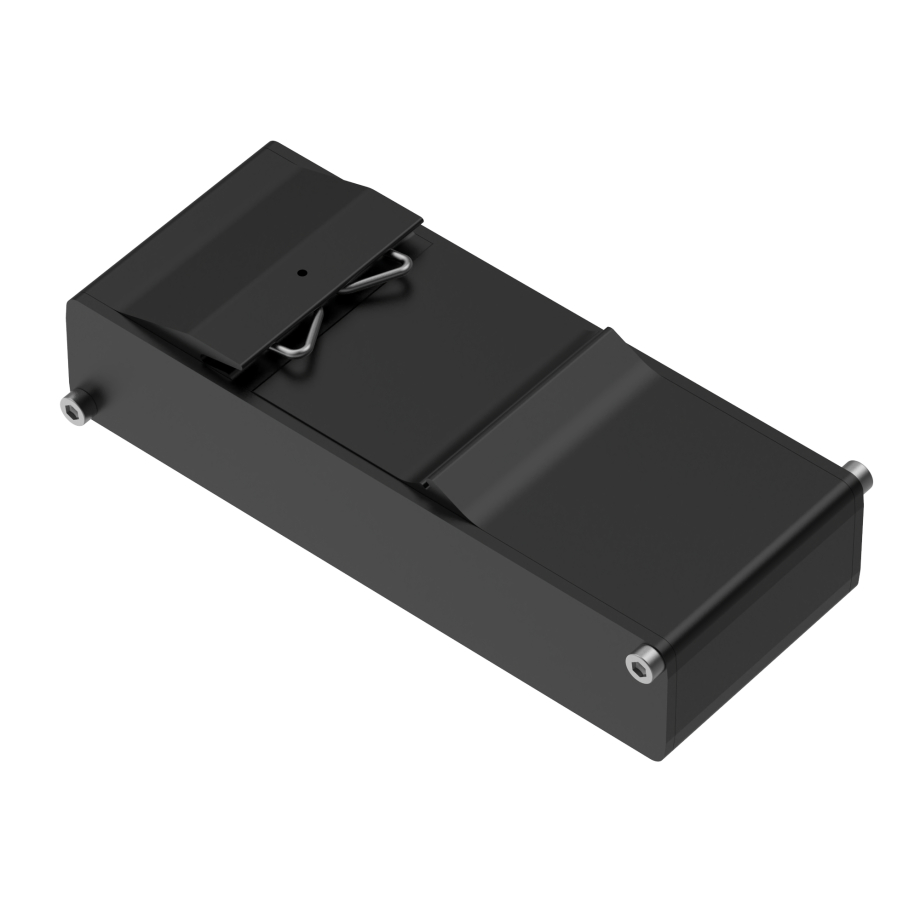

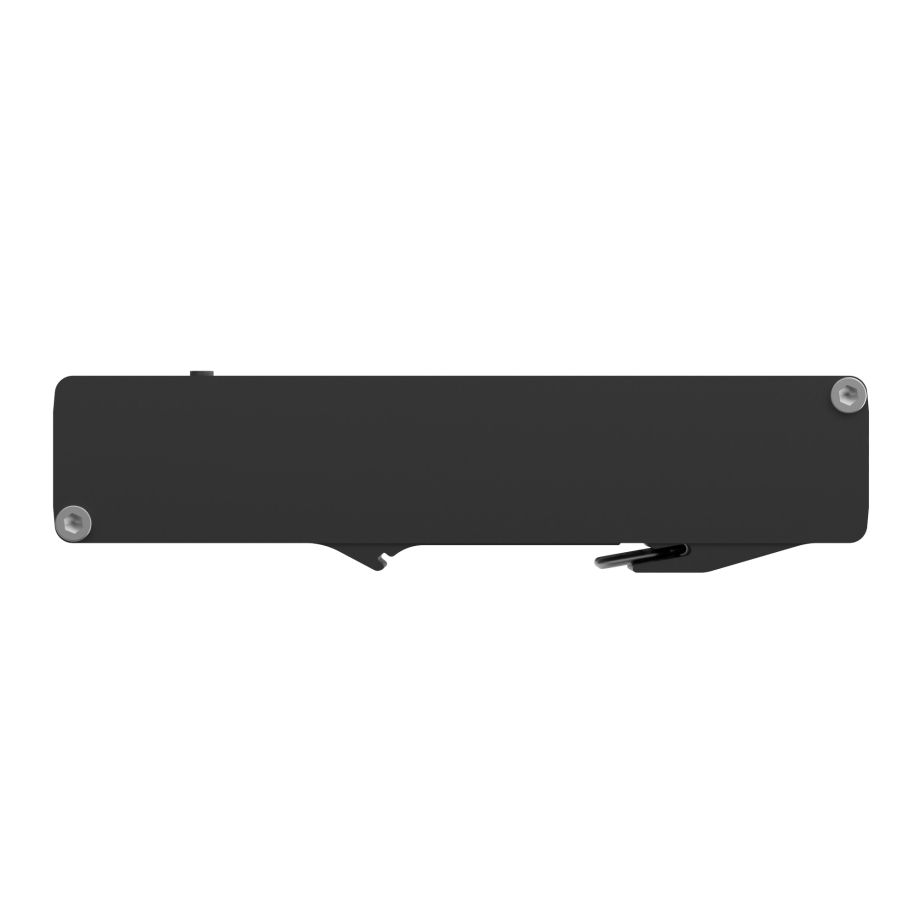

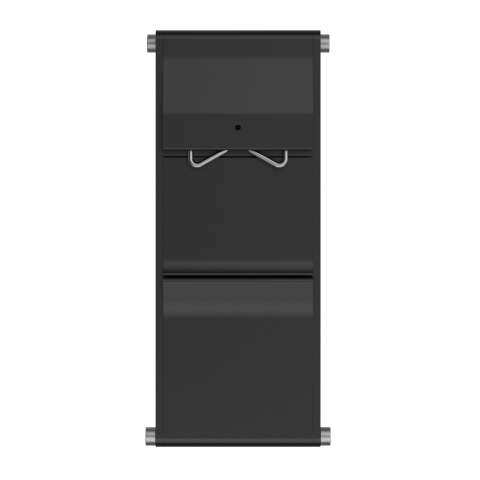

The TSF000 is built with a focus on durability, flexibility, and ease of installation. Its low-profile housing is constructed from anodized aluminum, providing excellent heat dissipation and mechanical strength while maintaining a compact form factor. With dimensions of just 113 × 28 × 50 mm and a weight of 142 g, the switch is ideal for installations where space is limited. The device features front-facing Ethernet ports for easy access and cable management, making it suitable for use in control cabinets, industrial enclosures, or tight installation areas. An integrated DIN rail bracket allows quick and secure mounting without the need for additional accessories, streamlining deployment in industrial environments. Power is supplied through a 3-pin industrial DC connector, supporting a wide input voltage range of 7–57 VDC.

The switch includes built-in protections against overvoltage, reverse polarity, and surge conditions, ensuring safe and reliable operation even in unstable power environments. The PoE output operates within a 44–57 VDC range, providing consistent power delivery to connected devices. The TSF000 is designed to operate in harsh conditions, with a wide temperature range from -40 °C to +75 °C and an IP30-rated enclosure. It also includes grounding support via the power connector, enhancing electrical safety. Energy-efficient operation is ensured with low power consumption of just 1 W in idle mode and up to 1.5 W under normal operation (excluding PoE load). This makes the TSF000 a reliable and efficient choice for long-term deployments in industrial and commercial environments.
