Ubiquiti EdgeRouter X
This item has been discontinued
We recommend to use the product presented below
Ubiquiti EdgeRouter X SFP
ER-X-SFP
Available alternatives
Detailed description
Versatile PoE Capability

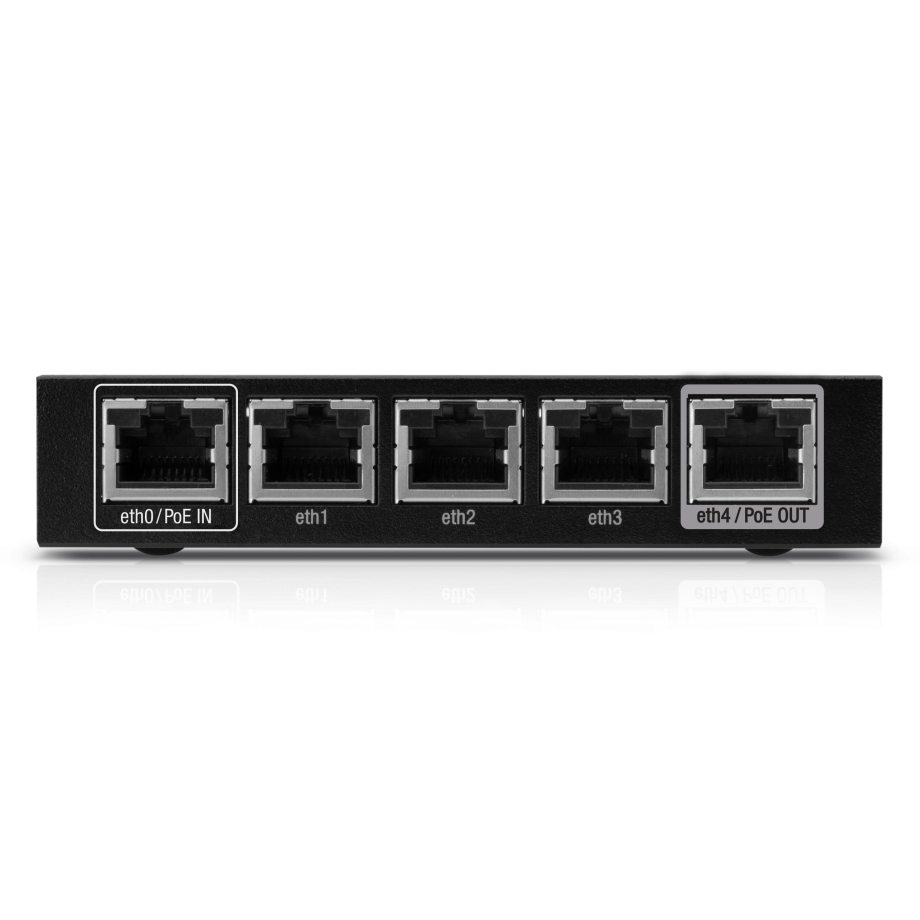

The physical network interface of the device consists of 5 gigabit Ethernet ports, and the eth0 and eth4 connectors are interconnected with each other using PoE Passthrough. This means that by supplying Passive PoE 24V power it is possible to distribute it on the second port. This way you can power not only the router itself, but also another connected device that supports the corresponding PoE standard. The device can also be powered from a regular 220V network via a 12VDC socket - a special power adapter is included in the package for this purpose.
The EdgeRouter X router is equipped with quite a productive hardware, which includes a dual-core processor with a clock speed of 88 mHz and 256 MB of memory. All this allows processing incoming packets at a speed of up to 1 Gbps, which is enough for stable operation even under peak load. At the same time, the risk of packet loss is minimal.
Centralized Management
The EdgeRouter™ X is supported and managed by UNMS™, a comprehensive application with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.
Compare with similar products
| Ethernet Ports | ||||||
| 5 x 1 Gbps | 3 x 1 Gbps | 10 x 1 Gbps | 6 x 1 Gbps | 1 x 1 Gbps | 5 x 1 Gbps | |
| PoE Out Ports | ||||||
| 1 x Passive PoE | 1 x Passive PoE | 5 x Passive PoE | 5 x Passive PoE | |||
| SFP Ports | ||||||
| 1 x 1G SFP | 2 x 1G SFP | 1 x 1G SFP | 8 x 10G SFP+ | 1 x 1G SFP | ||
| USB Ports | ||||||
| 1 x USB-A 3.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | |||
| Chipset | ||||||
| Dual-Core 880 MHz, MIPS1004Kc | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | MIPS64 16 Core 1.8 GHz | Dual-Core 880 MHz, MIPS1004Kc | |
| RAM | ||||||
| 256 MB | 1 GB | 1 GB | 1 GB | 16 GB | 256 MB | |
| Storage Memory | ||||||
| 256 MB | 4 GB | 4 GB | 4 GB | 8 GB | 256 MB | |
| Max Power Consumption | ||||||
| 5 W | 13 W | 24 W | 90 W | 100 W | 55 W | |
| Mounting Method | ||||||
| Tabletop | Tabletop | Tabletop | RackMount, Wall Mount, Tabletop | RackMount | Tabletop | |
| Ethernet Ports | 5 x 1 Gbps | 3 x 1 Gbps | 10 x 1 Gbps | 6 x 1 Gbps | 1 x 1 Gbps | 5 x 1 Gbps |
| PoE Out Ports | 1 x Passive PoE | 1 x Passive PoE | 5 x Passive PoE | 5 x Passive PoE | ||
| SFP Ports | 1 x 1G SFP | 2 x 1G SFP | 1 x 1G SFP | 8 x 10G SFP+ | 1 x 1G SFP | |
| USB Ports | 1 x USB-A 3.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | 1 x USB-A 2.0 | ||
| Chipset | Dual-Core 880 MHz, MIPS1004Kc | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | 4-Core 1 GHz, MIPS64 | MIPS64 16 Core 1.8 GHz | Dual-Core 880 MHz, MIPS1004Kc |
| RAM | 256 MB | 1 GB | 1 GB | 1 GB | 16 GB | 256 MB |
| Storage Memory | 256 MB | 4 GB | 4 GB | 4 GB | 8 GB | 256 MB |
| Max Power Consumption | 5 W | 13 W | 24 W | 90 W | 100 W | 55 W |
| Mounting Method | Tabletop | Tabletop | Tabletop | RackMount, Wall Mount, Tabletop | RackMount | Tabletop |
Technical Specs / Datasheet
Compatible products
Specifications
Interfaces
RJ45 Ports
(5) 1 Gbps
Number of PoE Ports
1 pcs
PoE Out Standards
Passive PoE
Management
Ethernet
System Specification
Chipset
Dual-Core 880 MHz, MIPS1004Kc
RAM
256 MB
Storage Memory
256 MB
Power
Power Method
AC/DC Adapter, 24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
9 - 26 V DC
Max Power Consumption
5 W
Power Connector
DC Plug 2.1 x 5.5 mm
PSU / POE adapter
12 V DC 0.5 A
Physical Parameters
Color
Black
Dimensions
110 x 75 x 22 mm
Weight
0.175 kg
Operating Temperature
-10 °C to 45 °C
Mounting Method
Tabletop
Form Factor
Desktop
Package Contains
External Power Supply
Included
