Product name
Broadbe Direct Attach Cable 25G 5m
Warranty
?
24 months
Manufacturer part number
BCC-DAC-25G-5M
EAN
5061093892076

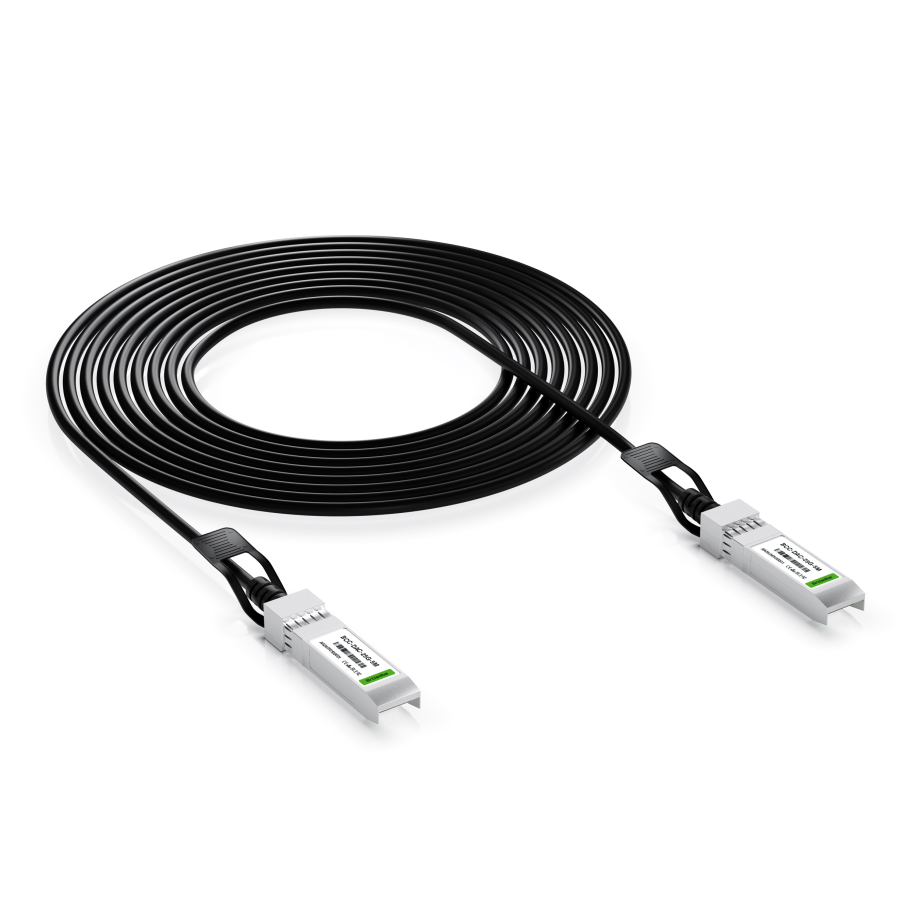

Broadbe 25G Direct Attach Cable 5 m – High-Speed DAC for Data Centers
- 25G Direct Attach Copper (DAC) cable, 5 m length, built for fast short-distance Ethernet links in data centers and enterprise networks.
- Supports 10G/25G/100G data rates for reliable switch-to-switch, switch-to-server, and storage connections with low-latency performance.
- Plug-and-play setup requires no extra configuration, helping you deploy high-speed networking links quickly and efficiently.
- Fully compatible with SFP+, SFP28, and QSFP28 interfaces for flexible use with supported networking equipment.
- Cost-effective copper alternative to optical transceivers, optimized for racks, adjacent racks, and top-of-rack switching.
32.42 €
In stock
?
32.42 €
In stock
?
Detailed description
High-Speed Direct Attach Copper (DAC) Cable Series
High-performance Direct Attach Copper (DAC) cables designed for reliable short-distance connections between switches, routers, and servers in data centers and enterprise networks. These cables provide a cost-effective, low-latency alternative to optical transceivers for high-speed networking links within racks or between adjacent racks.
The DAC cables use integrated transceiver modules connected by a high-quality copper cable, ensuring stable signal transmission, low power consumption, and excellent performance for modern Ethernet standards.
Key Features
- Supported data rates: 10G/ 25G/ 100G
- Ideal for switch-to-switch, switch-to-server, and storage connections
- Plug-and-play installation with no additional configuration required
- Fully compatible with SFP+, SFP28, and QSFP28 interfaces
- Optimized for data centers, enterprise networks, and telecom environments
Available Lengths:
0.1 m, 0.3 m, 0.5m, 1 m, 2 m, 3 m, 5 m
Typical Applications
- Data center top-of-rack switching
- Server and storage connectivity
- High-speed aggregation links
- Short-distance 10G/ 25G/ 100G Ethernet interconnections
Compatibility
These direct attach cables are compatible with networking equipment from the following brands: MikroTik, Ubiquiti, Cisco, Juniper, TP-Link, Netgear, D-Link, Zyxel, Supermicro, Ruckus, Ruijie, ZTE, Planet, Allnet, D-Link, Linksys, Compaq and others.
Technical Specs / Datasheet
Compatible products
Specifications
Cable & Connector
Cable Type
DAC
Connector
(2) SFP28
Max Data Rate
25Gbps
Cable Length
Conductor
Pure Copper
Jacket
PVC
Jacket Diameter
4.5 mm
Physical Parameters
Color
Black
Operating Temperature
0 °C to 70 °C
Environment
Indoor
Package Contains
Units
1 pcs
