Product name

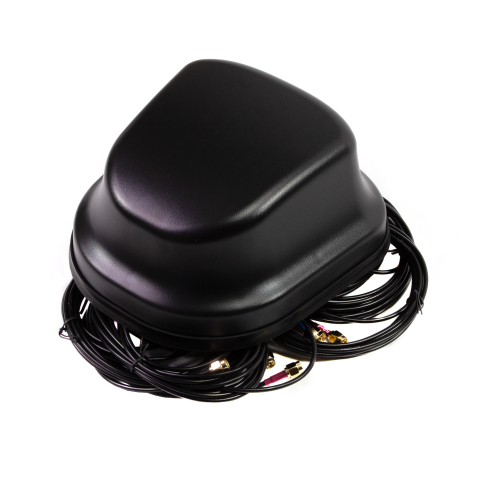

7-in-1 5G GNSS Wi-Fi Combo Car Roof Antenna
Warranty
?
12 months
Manufacturer part number
JCE605NR4WM
EAN
0708747440942
7-in-1 5G GNSS Wi‑Fi Combo Car Roof Antenna for GPS, GLONASS, Galileo
- 7-in-1 roof antenna combines 4x 5G NR MIMO, 2x Wi‑Fi MIMO and 1x GNSS antenna for a compact all-in-one vehicle setup.
- Built for mobile vehicles, this outdoor combo antenna helps deliver reliable 5G, Wi‑Fi and satellite navigation connectivity on the move.
- GNSS supports GPS, GLONASS, COMPASS and Galileo for broad satellite navigation compatibility in one car roof antenna.
- Includes seven 3 m cables for flexible installation; Wi‑Fi leads use RP‑SMA Male connectors, other leads use SMA Male connectors.
- Ideal for fleet, commercial and mobile applications where a single roof-mounted antenna can simplify connectivity and reduce roof clutter.
90.66 €
out of stock
?
90.66 €
out of stock
?
Expected arrival?
?
arrival date unknown
Available alternatives
Detailed description

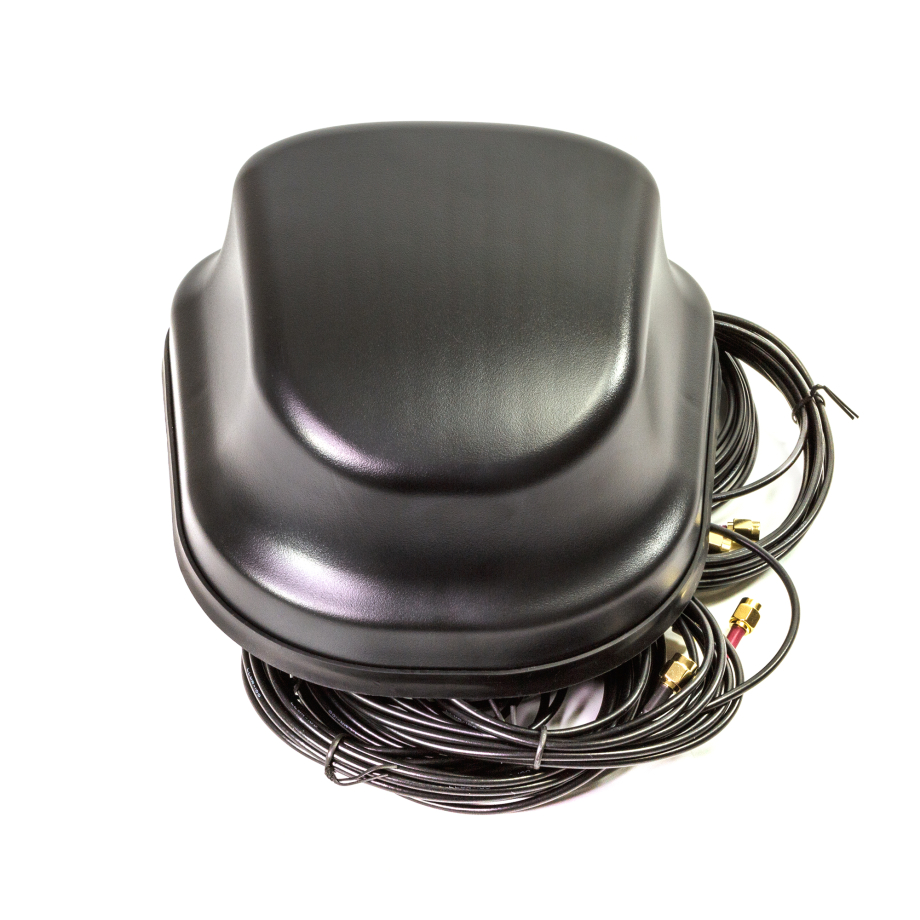

Outdoor combo antenna equipped with two WiFi MIMO antennas, a GNSS antenna, and four 5G NR MIMO antennas. The GNSS antenna supports GPS, GLONASS, COMPASS and Galileo satellite navigation systems. Combo antenna is designed for installation on mobile vehicles. It comes with seven cables of 3m each. The Wi-Fi cables are equipped with RP-SMA Male connectors, other cables have SMA Male connectors.
Technical Specs / Datasheet
Compatible products
Specifications
Mobile Network
Mobile Network Generation
Antenna
Antenna Design
Roof
Wireless Antenna Frequency Range & Gain
5.85 - 5.95 (GHz) 4 (dBi)
Mobile Antenna Frequency Range & Gain
0.698 - 0.96 (GHz) 4 (dBi), 1.71 - 2.69 (GHz) 4 (dBi), 2.9 - 3.8 (GHz) 4 (dBi)
Mobile Antenna Gain
4 dBi, 4 dBi, 4 dBi
Polarization
Linear, RHCP
Cable Length
3 m
VSWR
< 3
Impedance
50 Ω
Connectors
RF Connectors
(5) SMA Male, (2) RP-SMA Male
Physical Parameters
Color
Black
Ingress Protection Code
IP67
Operating Temperature
-40 °C to 85 °C
Environment
Outdoor
Mounting Method
