Wall Mount A71

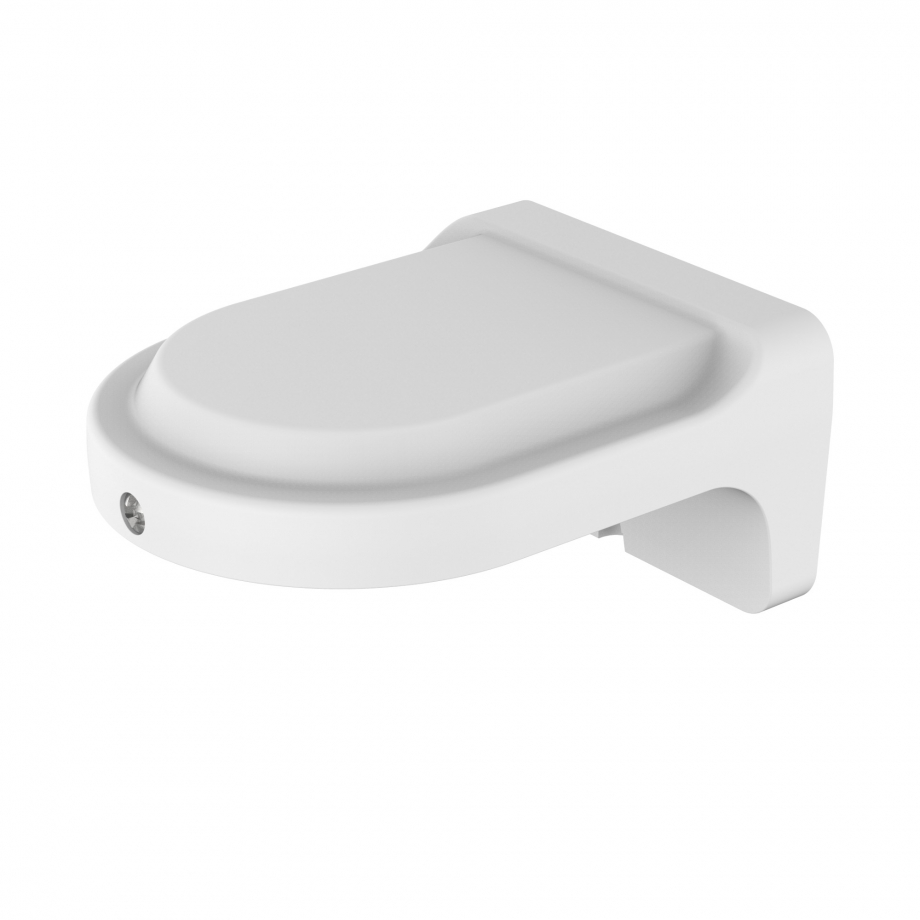

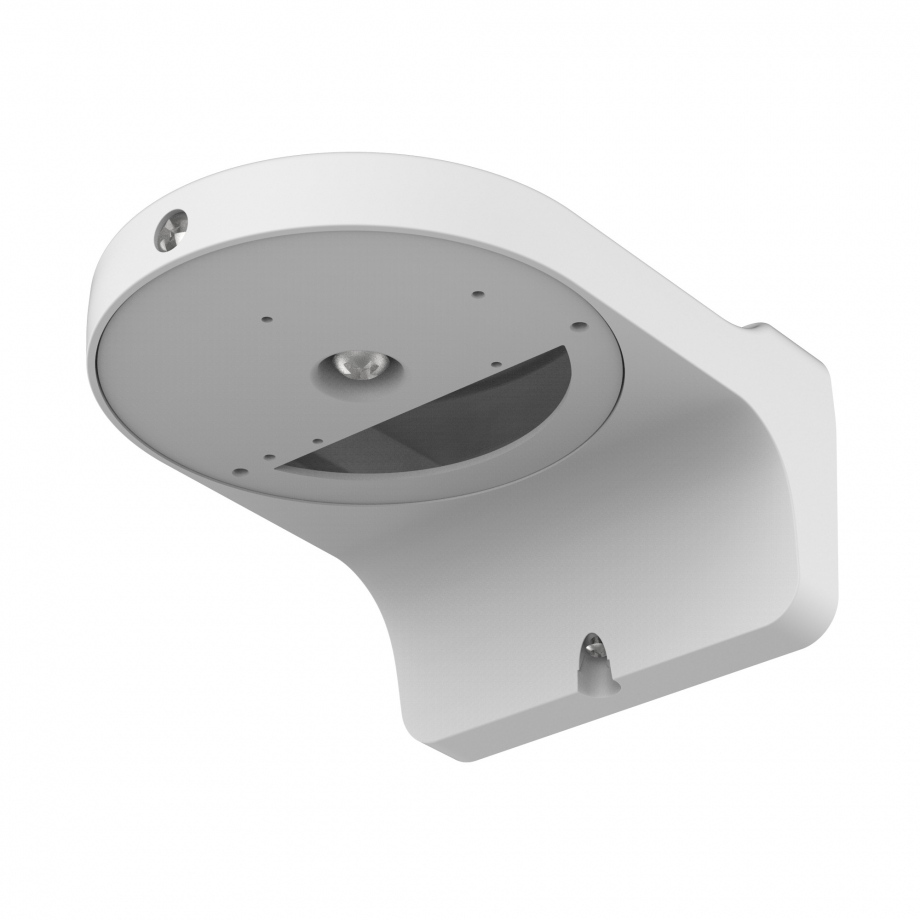

The Milesight MS-A71 is a wall-mount bracket designed for compatible Milesight dome and panoramic network cameras. It provides a dedicated mounting point on walls and other vertical structures when direct ceiling installation is unavailable or does not place the camera in the required position. The bracket supports IR Mini Dome, Vandal-proof Mini Dome, Weather-proof Mini Dome, motorized Mini Dome, and Panoramic Mini Dome camera installations. Measuring 162 × 124 × 78 mm and weighing 530 g, it offers a compact mounting profile while providing a stable connection between the camera and the supporting surface.

Its aluminium-alloy construction is suitable for outdoor use, and the integrated cable entry allows network and power wiring to pass through the bracket rather than remain exposed beside the camera. Concealed cable routing creates a cleaner installation and makes the connections less accessible to accidental damage or tampering. The MS-A71 is supplied in white as standard, with a black version available as an option, allowing the mounting hardware to match different camera finishes and installation environments. As a dedicated Milesight accessory, it combines secure wall attachment, organized cable routing, and suitable positioning for supported dome and panoramic surveillance cameras.
