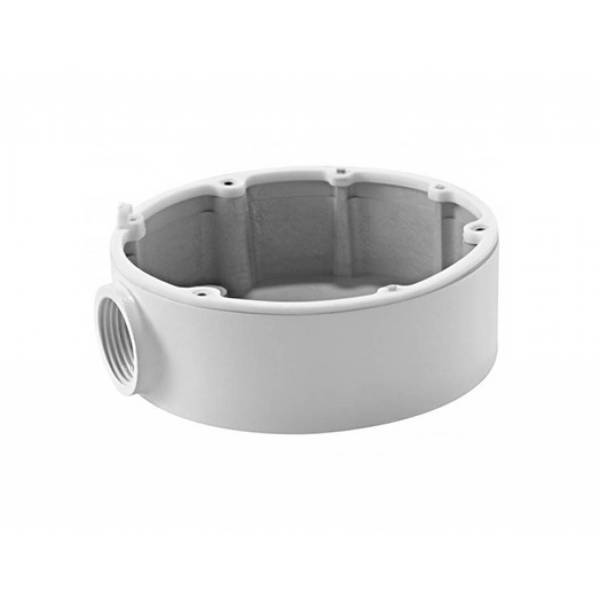

Hikvision DS-1280ZJ-DM18 Aluminium Junction Box for Dome Cameras

The Hikvision DS-1280ZJ-DM18 is a junction box designed for dome camera installations, providing a dedicated mounting base while incorporating cable routing into the installation. Made from aluminum alloy with a surface spray treatment, the box is finished in Hikvision White to match the intended camera mounting environment. A cable hole built into the bracket allows the camera cable to be routed through the junction box rather than around the mounting assembly. With a diameter of 111 mm and a weight of 150 g, the DS-1280ZJ-DM18 provides a defined mounting format that can be taken into account when preparing the installation location.

The junction box must be installed on a flat wall, and the supporting surface must be capable of carrying more than three times the combined weight of the camera and mount. The bracket itself has a maximum load capacity of 4.5 kg, so both the camera weight and the strength of the mounting surface need to be considered before installation. For outdoor applications, waterproof rubber is required as part of the mounting arrangement. These installation requirements, together with the integrated cable opening and aluminum alloy construction, make the DS-1280ZJ-DM18 a purpose-built mounting component for compatible dome camera installations.
