Brand
Manufacturer part number
UG65-868M-EA-H32
Warranty
?
24 months
EAN
6974225038206

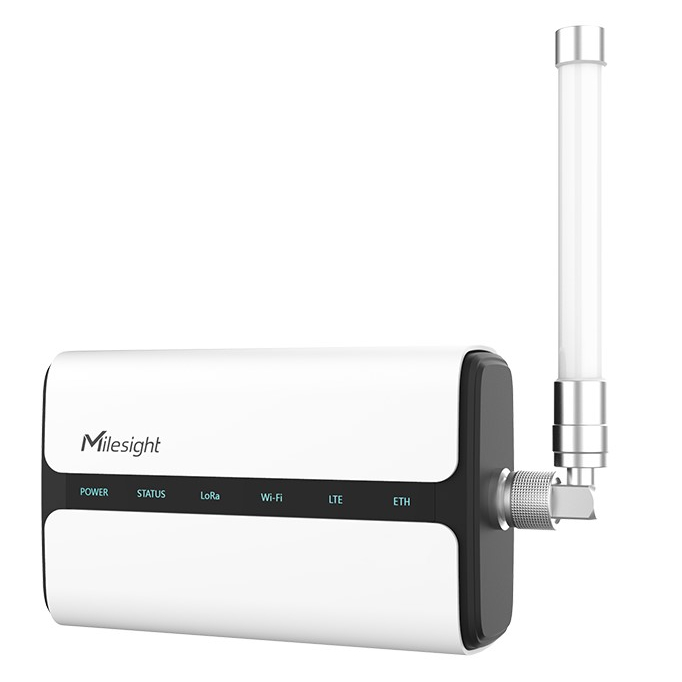

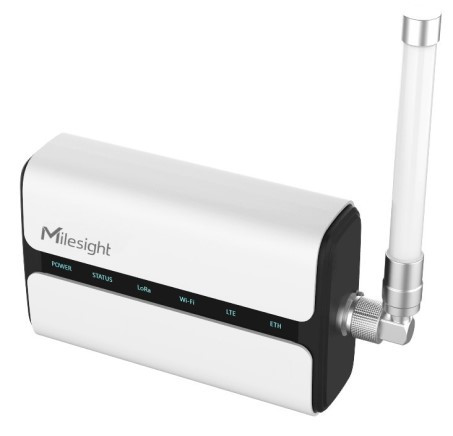

Milesight LoRaWAN Helium / IoT Miner Hotspot UG65-868M-EA-H32 v2
out of stock
?
0% 640.00 €
640.00 €
0% 640.00 €
640.00 €
We currently have limited stock of this item. Please register to make a purchase order.
Detailed description
Outstanding Performance

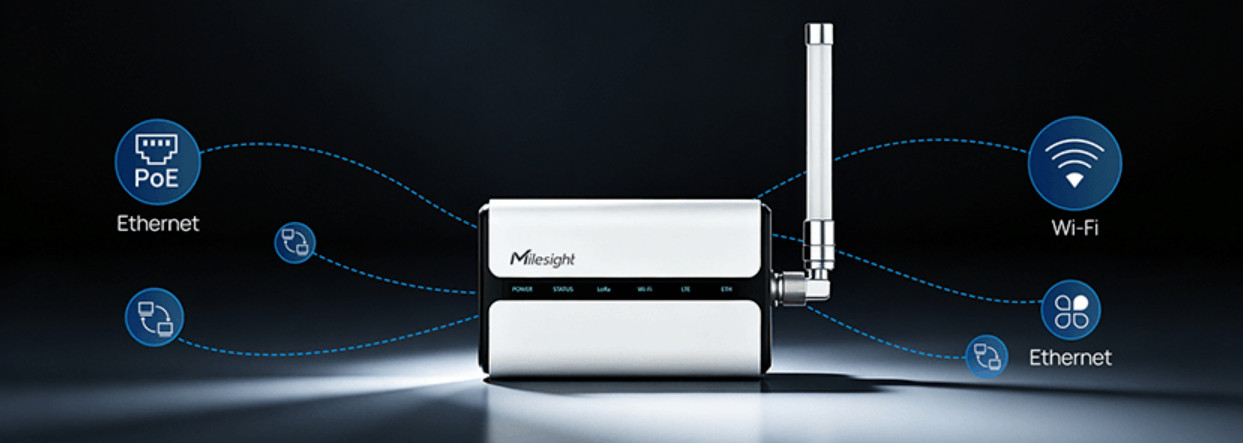

The Milesight LoRaWAN Gateway is receiving data from 8 end-devices and simultaneously supports up to 2000 end-devices. The full capacity of the gateway will depend on how frequently end-devices are reporting uplinks and receiving downlinks. The LoRaWAN Gateway is equipped with NXP 64-bit Quad-Core Processor, 2 GB DDR4 RAM and 29 GB eMMC Flash Memory, providing the outstanding performance. Multiple connectivity capabilities allows you to stay connected via Ethernet, cellular or Wi-Fi, to deliver encrypted data around the clock.
Deep signal penetration

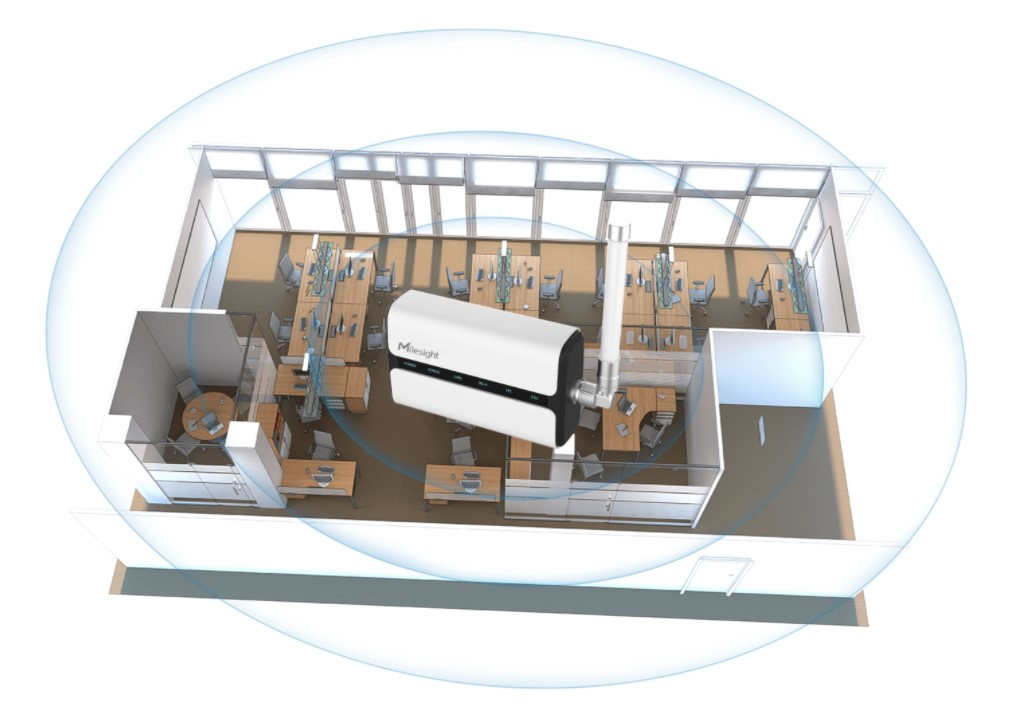

UG65 gateway is covering up to 12 km² (2 km radius) in city area and provides good signal penetration in places like basements, multi-floor buildings and other deep-indoor locations (spaces covered by multiple walls). The signal is extremely resistant to industrial interference in urban environments. The dustproof and basic waterproof capabilities make UG65 LoRaWAN gateway more versatile even in industrial environments
High Compatibility

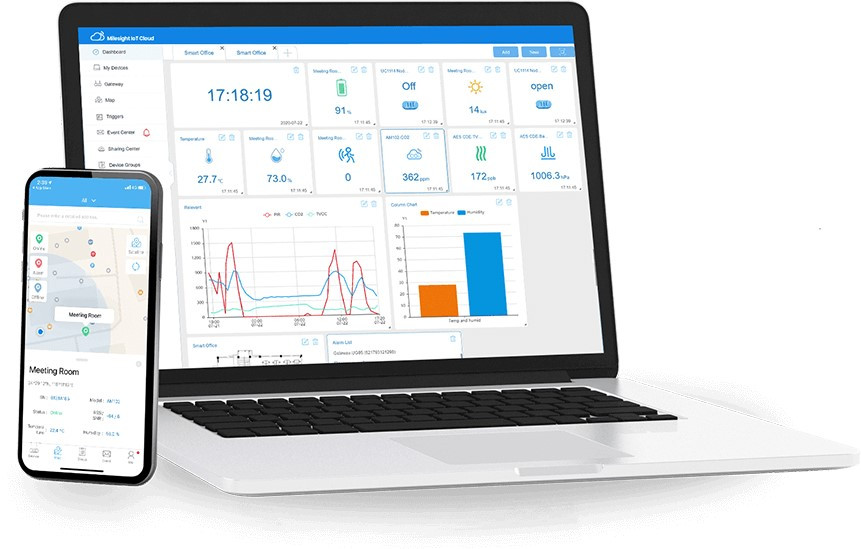

With built-in network server, the UG65 also supports Semtech’s latest packet forwarder, and is compatible with multiple network server platforms like AWS, TTN, ChirpStack, and Loriot which offers a wide range of options for data processing. With Milesight IoT Cloud you can store, manage and analyze all your data with a few clicks. Android & iOS versions allow you to manage devices quickly, easily and conveniently.
Flexible installation

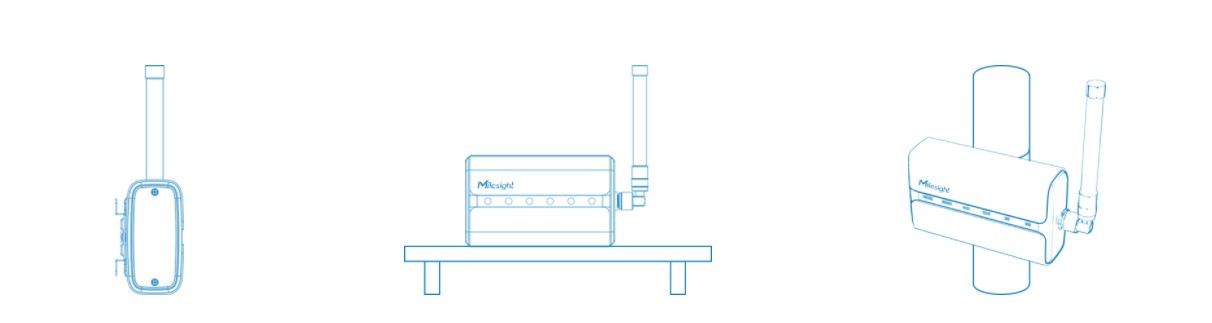

The gateway could be mounted in three different ways. You can place the gateway on a table, attach it to a wall, or mount it on a pole.
Compatible products
Specifications
Mobile Network
SIM Card Slot
Mini-SIM
Wireless Network
Standards
802.11b/g/n
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
0.868 - 0.868 (GHz) 1.5 (dBi)
Beamwidth
360 °
Impedance
50 Ω
Connectors
RF Connectors
(1) N Female
System Specification
Chipset
Quad-Core 1.5GHz, 64-bit ARM Cortex-A53
RAM
2 GB
Storage Memory
29 GB
Power
Power Method
AC/DC Adapter, 802.3af PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
9 - 24 V DC
Max Power Consumption
4.2 W
Power Connector
DC Plug 2.1 x 5.5 mm
Physical Parameters
Color
White
Material
Plastic
Ingress Protection Code
IP65
Dimensions
180 x 110 x 56.5 mm
Operating Temperature
-40 °C to 70 °C
Environment
Indoor, Outdoor
Mounting Method
Wall Mount, Pole Mount, Tabletop
Form Factor
Desktop
Package Contains
External Power Supply
Included
