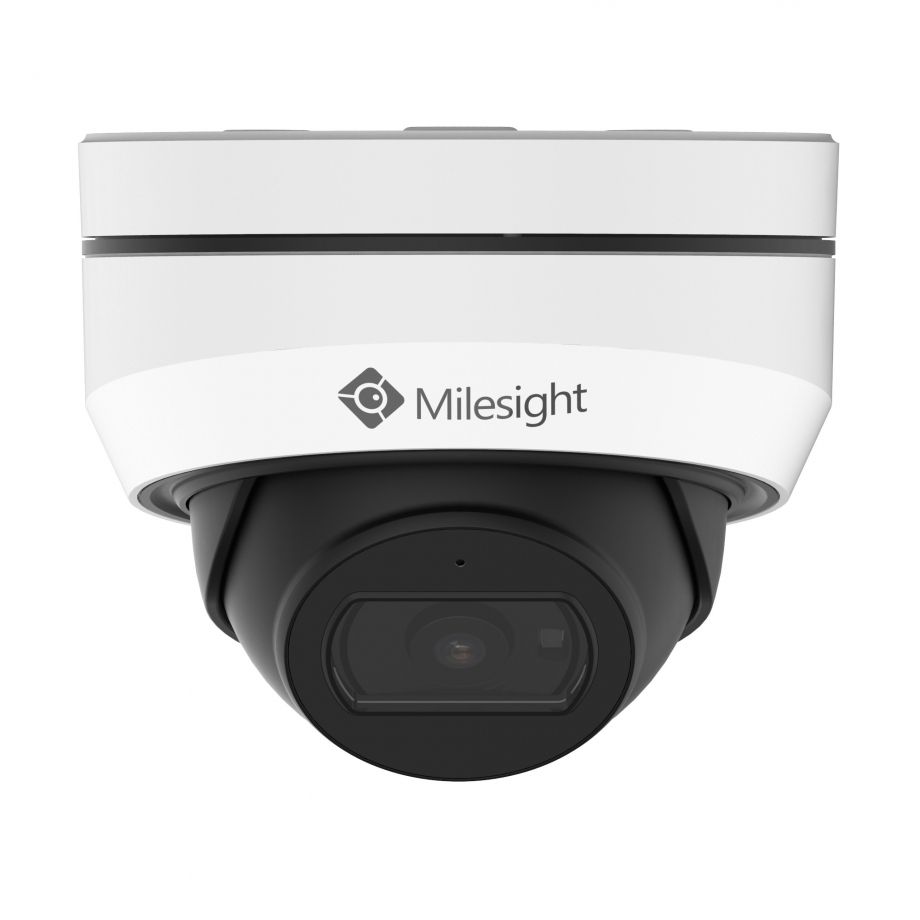

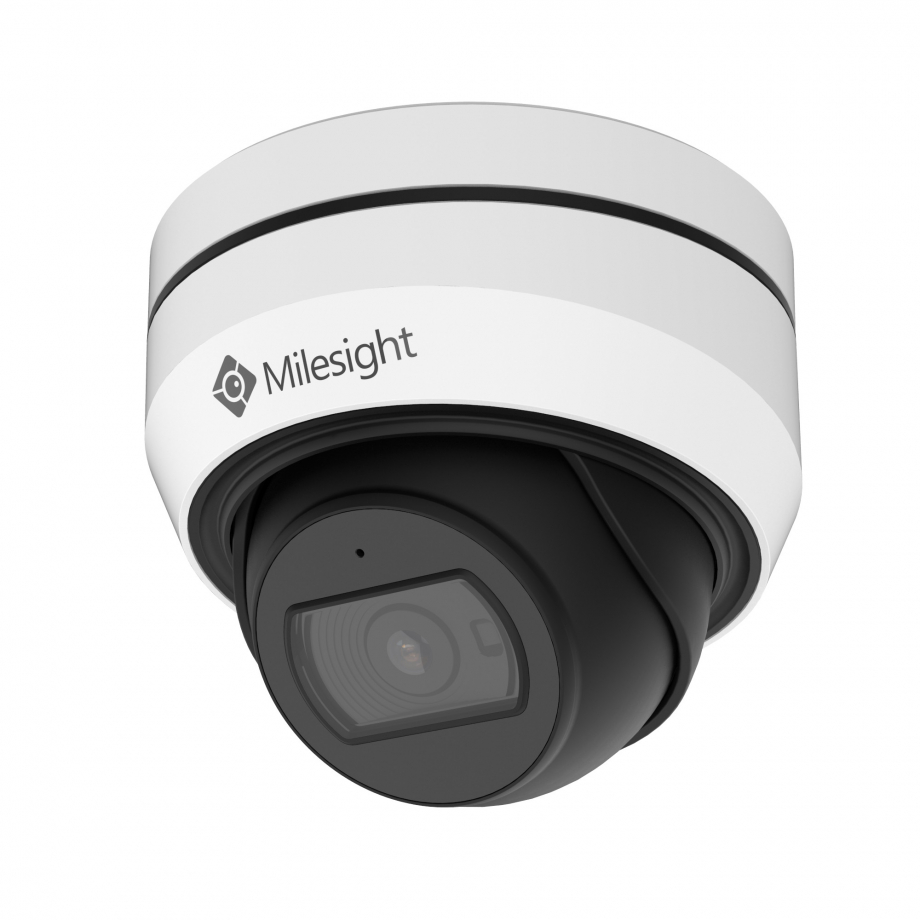

5MP 3X AF Motorized Mini Dome Camera

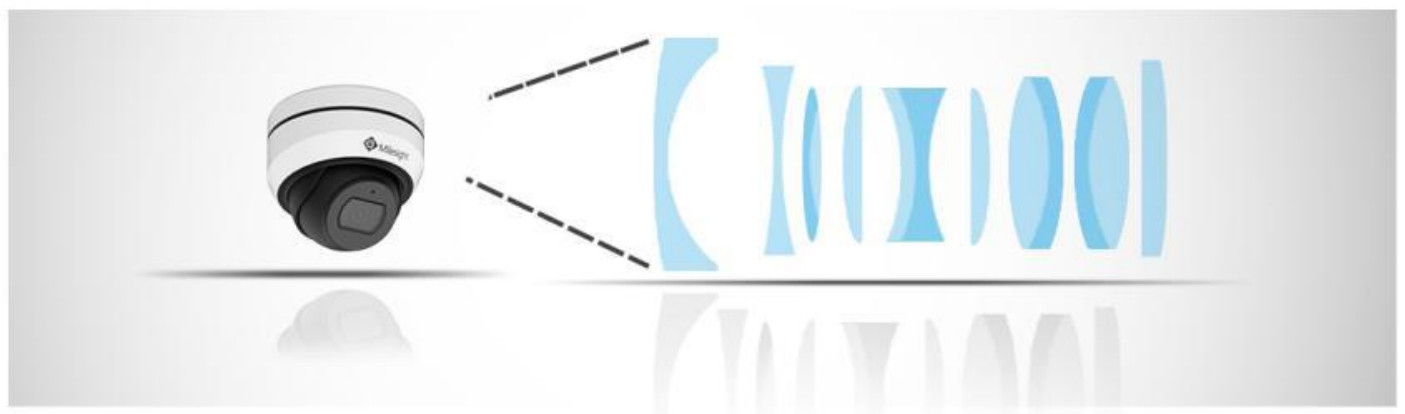

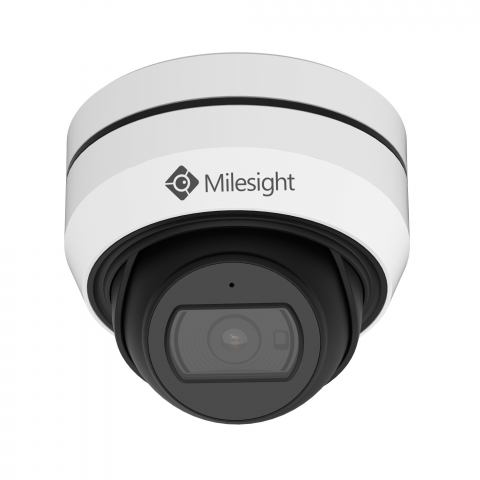

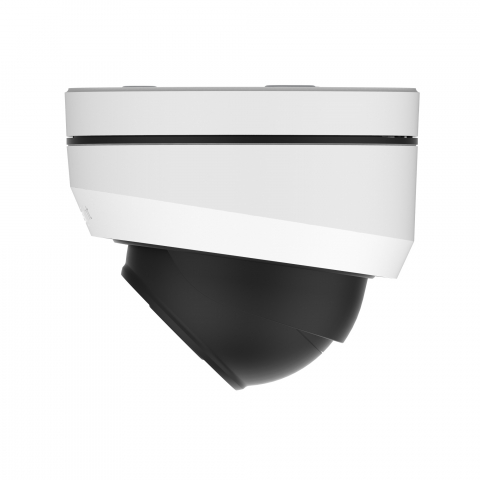

The MS-C5375-EPB is a 5MP AF motorized mini dome network camera designed for detailed fixed-position surveillance with remotely adjustable scene coverage. Its 1/2.8-inch progressive scan CMOS sensor delivers a maximum resolution of 2592 × 1944, providing sufficient detail for reviewing people, objects, and activity across the monitored area. The motorized 2.8 to 8.4 mm lens offers 3X optical zoom, allowing installers to move from a wide overview to a narrower view without replacing the lens. Its horizontal field of view ranges from 101° to 42°, making the same camera suitable for broad coverage or more concentrated observation from one mounting point.

Automatic and manual focus control help maintain a clear image after the viewing angle is adjusted, while automatic iris control supports consistent exposure as scene conditions change. The primary stream records at up to 20 fps at full 5MP resolution and up to 30 fps at lower supported resolutions, allowing a choice between maximum detail and smoother motion. Secondary and tertiary streams provide additional viewing options for live monitoring, remote access, or systems that do not require the main recording resolution. H.265+, H.265, H.264+, H.264, and MJPEG compression, together with adjustable CBR or VBR bit rate control, help match video delivery to different recording platforms, network capacity, and storage plans.

The camera is built to maintain usable images as lighting changes throughout the day and night. It supports color imaging down to 0.005 Lux at F1.2 and 0.008 Lux at F1.8, while integrated infrared illumination enables black-and-white monitoring in complete darkness. With an IR range of up to 35 m, the camera can cover nearby indoor or outdoor areas without requiring separate lighting at the installation point. Day, night, automatic, customized, and scheduled modes allow image behaviour to follow site conditions or operating hours instead of relying on one fixed profile for every period.

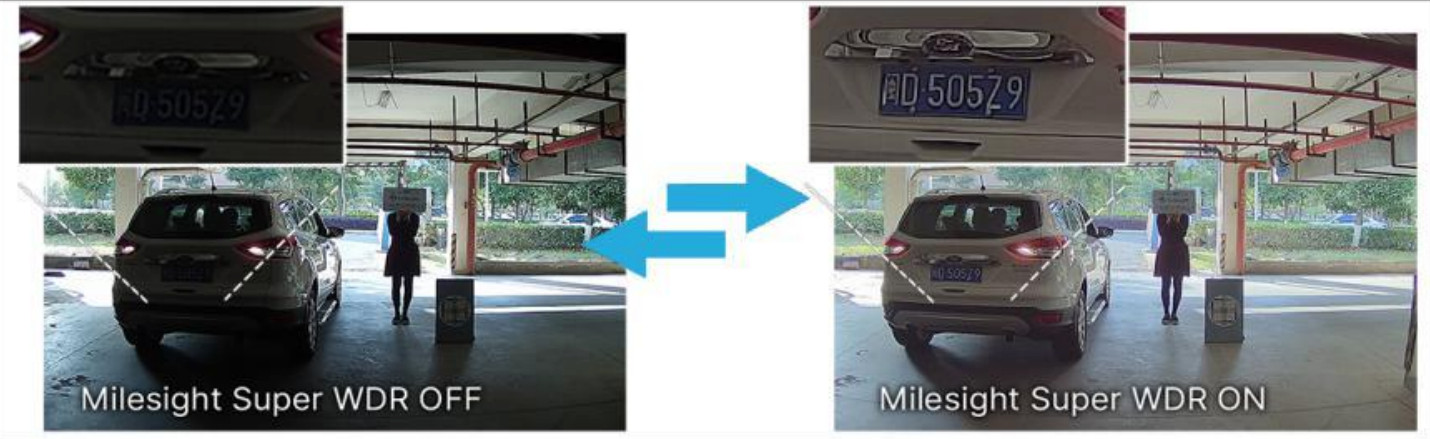

A 120 dB Super WDR function improves visibility when bright and dark areas appear in the same scene, helping preserve detail where strong backlighting could otherwise obscure part of the image. Additional processing functions include BLC, HLC, 2D and 3D noise reduction, Defog, automatic white balance, electronic image stabilization, automatic gain control, anti-flicker, Corridor Mode, Deblur, and Watermark. Brightness, contrast, saturation, and sharpness can also be adjusted to suit the monitored environment after installation. Up to eight ROI areas allow selected zones to receive encoding priority, while eight privacy masks can hide sensitive parts of the scene. The camera also maintains a signal-to-noise ratio above 55 dB, supporting cleaner image output in everyday surveillance conditions.

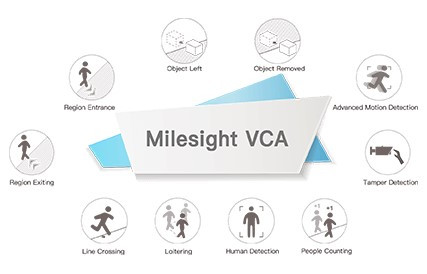

Video content analysis allows the MS-C5375-EPB to respond to defined activity instead of functioning only as a continuous recorder. Supported functions include region entrance and exit, advanced motion detection, tamper detection, line crossing, loitering, human detection, people counting, object left, and object removed. These tools help operators focus on events that match specific monitoring rules and reduce the need to review all recorded footage manually. Event triggers also include network disconnection and audio alarms, while the multi-interface version can additionally use an external input. Depending on the event, the camera can upload files by FTP or SMTP, record to an SD card, initiate a SIP phone action, send an HTTP notification, or activate an external output on the multi-interface version.

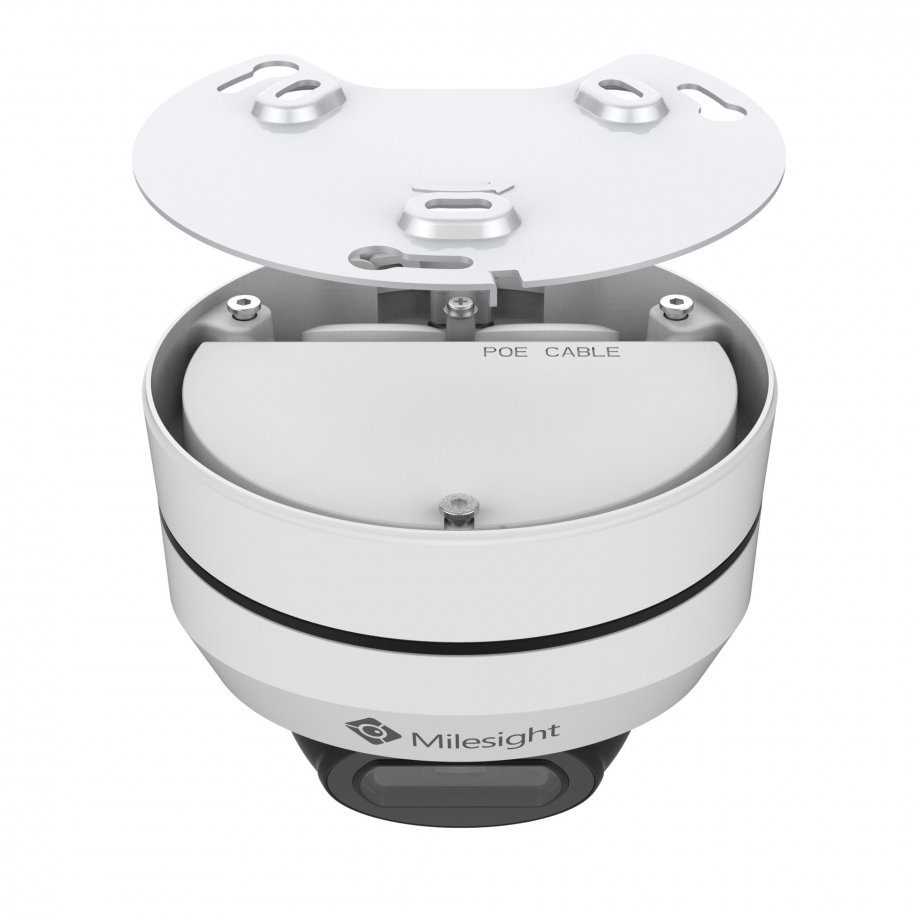

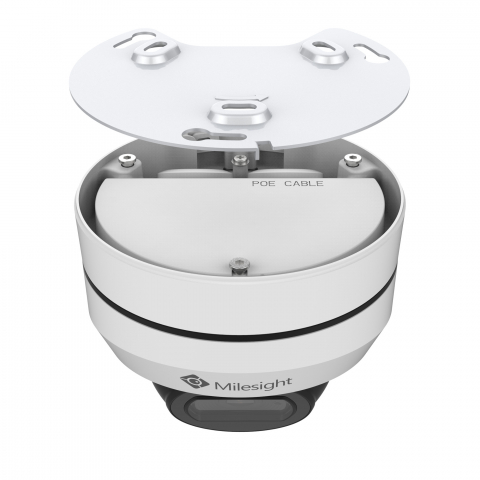

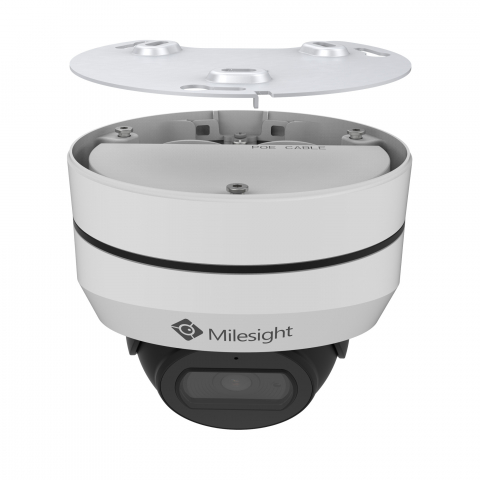

The camera connects through a 10/100M RJ45 Ethernet port and includes a built-in microphone for capturing audio from the monitored area. Local storage is supported through microSD, SDHC, or SDXC cards up to 256 GB, while NAS recording is available through NFS or SMB/CIFS with ANR. SIP and Voice-over-IP support, ONVIF Profiles G, Q, S, and T, and API access assist integration with compatible surveillance systems. Power can be supplied through IEEE 802.3af PoE or 12 V DC. Its IP67 weather-resistant design, IK10-rated metal housing, and operating range from -40 °C to 60 °C support demanding indoor and outdoor installations.
