Product name
Broadbe Optical Module 25G Single-Mode 10km
Warranty
?
24 months
Manufacturer part number
BOM-SM-25G-10KM
EAN
5061093892236

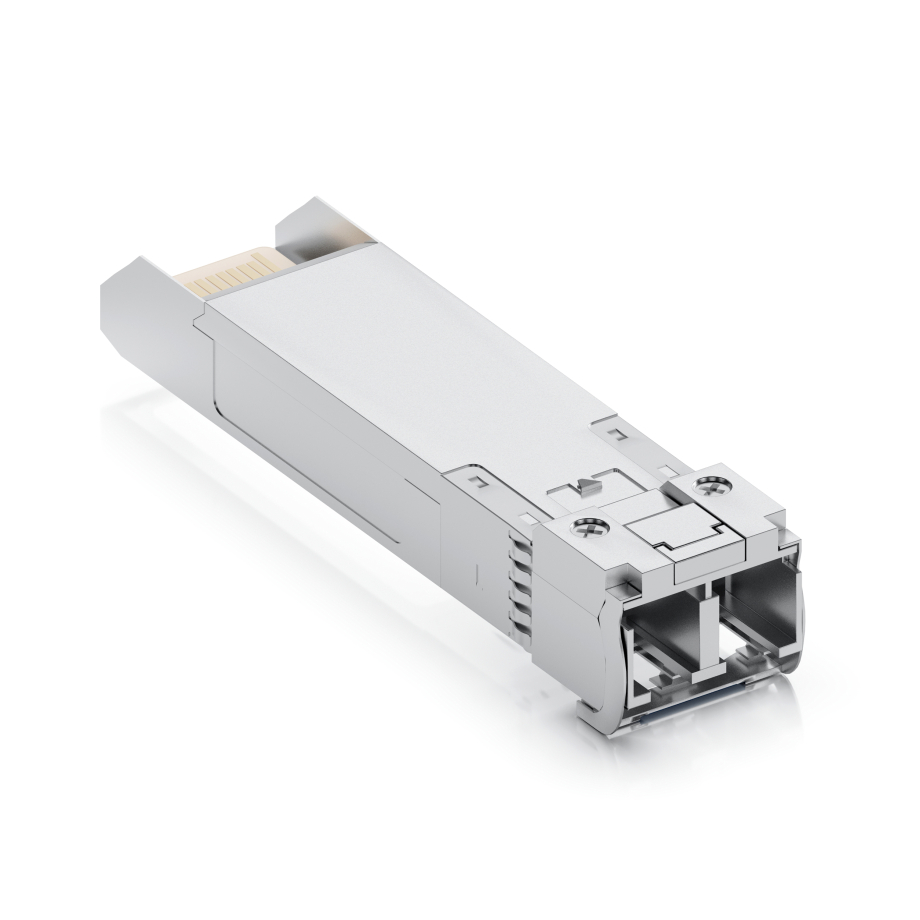

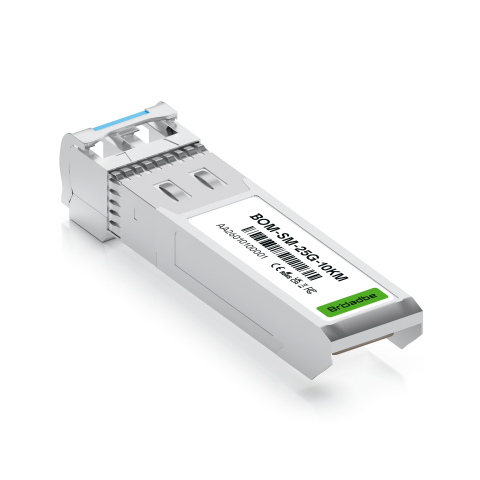

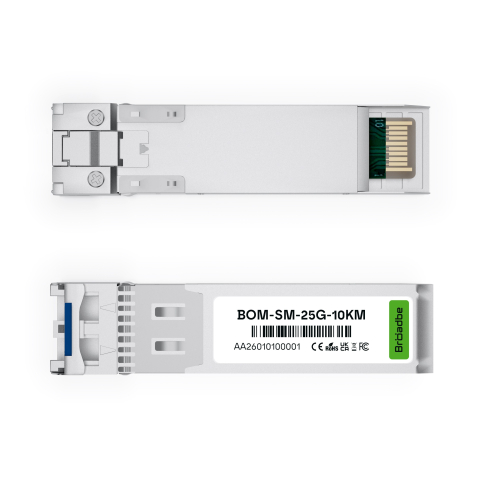

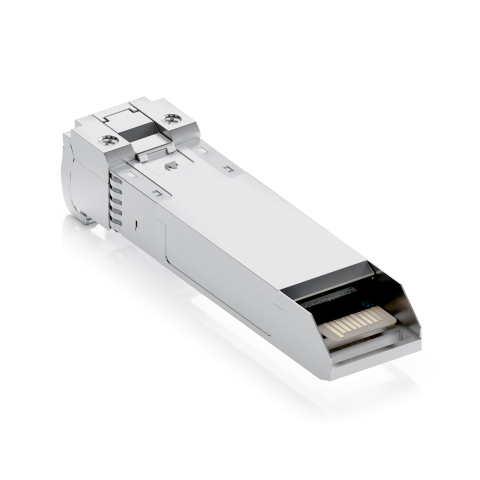

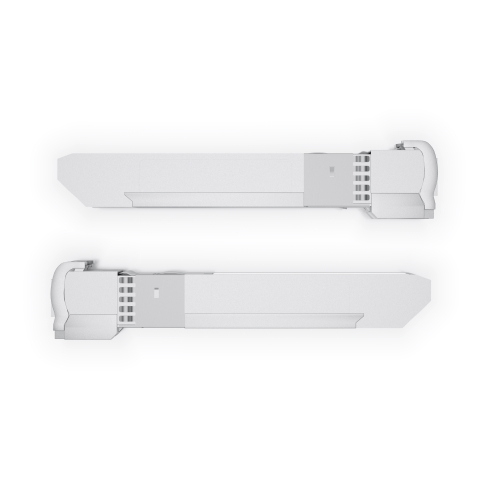

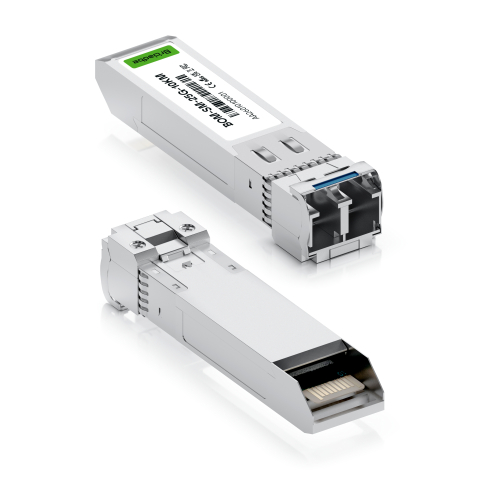

Broadbe 25G Single-Mode SFP28 Optical Module, LC Duplex, 10km
- 25G SFP28 optical transceiver for single-mode fiber, delivering high-speed data transmission up to 10km for enterprise networks, data centers, ISP and telecom infrastructure.
- LC duplex connector and dual-fiber Tx/Rx design help ensure stable, reliable links over single-mode fiber for long-distance networking applications.
- Built-in DDM/DOM diagnostics monitor temperature, voltage, transmit power and receive signal strength in real time for easier network maintenance.
- Hot-pluggable SFP28 module with low power consumption supports efficient deployment and quick replacement in compatible networking equipment.
- Compatible with industry Ethernet standards and designed for broad interoperability with multi-vendor switches, routers and optical networking hardware.
59.93 €
In stock
?
59.93 €
In stock
?
Detailed description
Single-Mode Dual Fiber Optical Transceiver Series
The Single-Mode Dual Fiber optical transceiver series is designed for reliable high-speed data transmission over long distances using single-mode fiber. These modules are ideal for enterprise networks, data centers, ISP infrastructure, and telecom applications.
Each transceiver operates over two optical fibers (Tx/Rx) and is equipped with a standard LC duplex connector. The modules comply with industry Ethernet standards and provide broad compatibility with networking equipment from multiple vendors.
The series supports Digital Diagnostics Monitoring (DDM/DOM), enabling real-time monitoring of key operating parameters such as temperature, supply voltage, transmit optical power, and received signal strength.
Available in 1G, 10G, and 25G versions, these transceivers provide a scalable solution for modern network infrastructure while maintaining low power consumption and hot-swappable operation.
Key Features
- Dual fiber transmission (Tx/Rx) over Single-Mode fiber
- LC duplex connector
- Data rates: 1G/ 10G/ 25G
- Support for DDM/ DOM diagnostics
- Hot-pluggable SFP/ SFP+/ SFP28 form factor
- Low power consumption
- Operating temperature: 0 to +70 °C
Compatibility
These transceiver modules are compatible with networking equipment from the following brands: MikroTik, Ubiquiti, Cisco, Juniper, TP-Link, Netgear, D-Link, Zyxel, Supermicro, Ruckus, Ruijie, ZTE, Planet, Allnet, D-Link, Linksys, Compaq and others.
Compare with similar products
| Form Factor | ||||
| SFP28 | SFP | SFP+ | QSFP28 | |
| Data Rate | ||||
| 25 Gbps | 1 Gbps | 10 Gbps | 100 Gbps | |
| Fiber Type | ||||
| Single Mode | Single Mode | Single Mode | Single Mode | |
| Connector | ||||
| LC Duplex | LC Duplex | LC Duplex | LC Duplex | |
| Wavelength | ||||
| 1310nm | 1310nm | 1310nm | 1310nm | |
| Max. Distance | ||||
| 10km | 20km | 10km | 10km | |

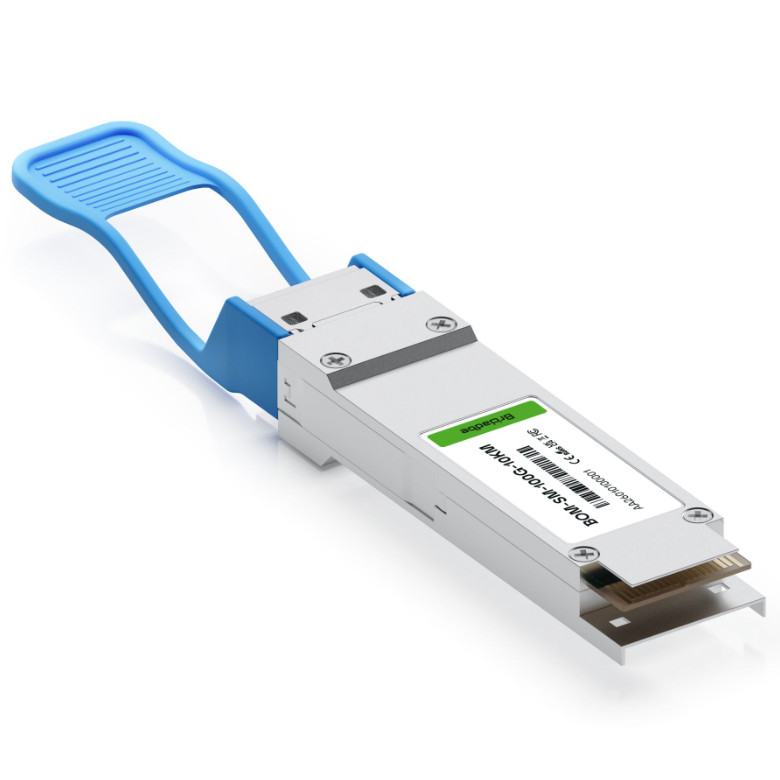

| Form Factor | SFP28 | SFP | SFP+ | QSFP28 |
| Data Rate | 25 Gbps | 1 Gbps | 10 Gbps | 100 Gbps |
| Fiber Type | Single Mode | Single Mode | Single Mode | Single Mode |
| Connector | LC Duplex | LC Duplex | LC Duplex | LC Duplex |
| Wavelength | 1310nm | 1310nm | 1310nm | 1310nm |
| Max. Distance | 10km | 20km | 10km | 10km |
Technical Specs / Datasheet
Compatible products
Specifications
Fiber Equipment
SFP Type
SFP28
Supported Media
Single-Mode
Connector Type
LC/UPC Duplex
TX Wavelength
1310 nm
RX Wavelength
1310 nm
Data Rate
25 Gbps
Transmission Distance
10 km
Power
Max Power Consumption
1.5 W
Physical Parameters
Operating Temperature
0 °C to 70 °C
Package Contains
Units
1 pcs
