Product name
Teltonika GPS/GNSS Antenna 2dBi adhesive type 3m
Warranty
?
12 months
Manufacturer part number
PR1KSG30
EAN
0708747439762
GPS/GNSS Antenna for Teltonika RUT9xx Routers with SMA Connector
Official Teltonika Distributor
Certified Teltonika Engineers
- GNSS adhesive antenna with RHCP polarization for reliable satellite signal reception in the 1575.42-1602 MHz range.
- 2 dBi gain helps support stable GPS/GNSS performance for tracking and positioning applications.

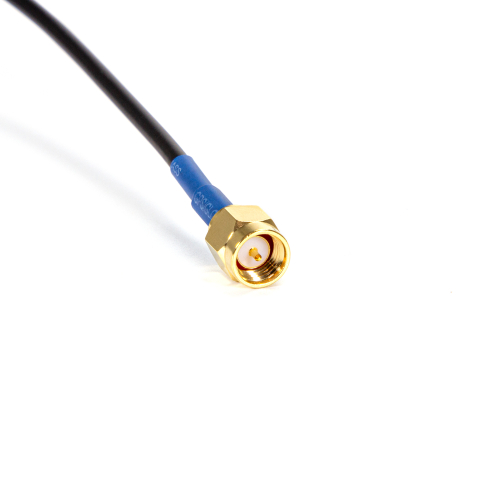

- Includes 3 m RG174 high-frequency coaxial cable with SMA female connector for flexible installation.
- Adhesive mount makes placement quick and convenient on suitable surfaces.
- Teltonika PR1KSG30 antenna is a practical choice for GPS/GNSS setups needing compact, wired connectivity.
Official Teltonika Distributor
Certified Teltonika Engineers
5.29 €
out of stock
?
5.29 €
out of stock
?
Expected arrival?
?
arrival date unknown
Official Teltonika Distributor
Certified Teltonika Engineers
Available alternatives
Detailed description
PR1KSG30 is a GNSS adhesive antenna with RHCP polarization. The antenna works in the frequency range 1575.42-1602 MHz with 2 dBi gain. The antenna is equipped with high-frequency coaxial RG174 cable with SMA Female connector. The cable is 3 m long. Mounting method: adhesive.
Technical Specs / Datasheet
Compatible products
Specifications
Antenna
Antenna Design
Omni
GPS Antenna Frequency Range & Gain
1575.42 MHz 2 dBic (Zenith)
Cable Length
3 m
VSWR
< 2.0
Impedance
50 Ω
Connectors
RF Connectors
(1) SMA Male
