Brand
Manufacturer part number
RUT955V*****
Warranty
?
12 months
EAN
4779027311302

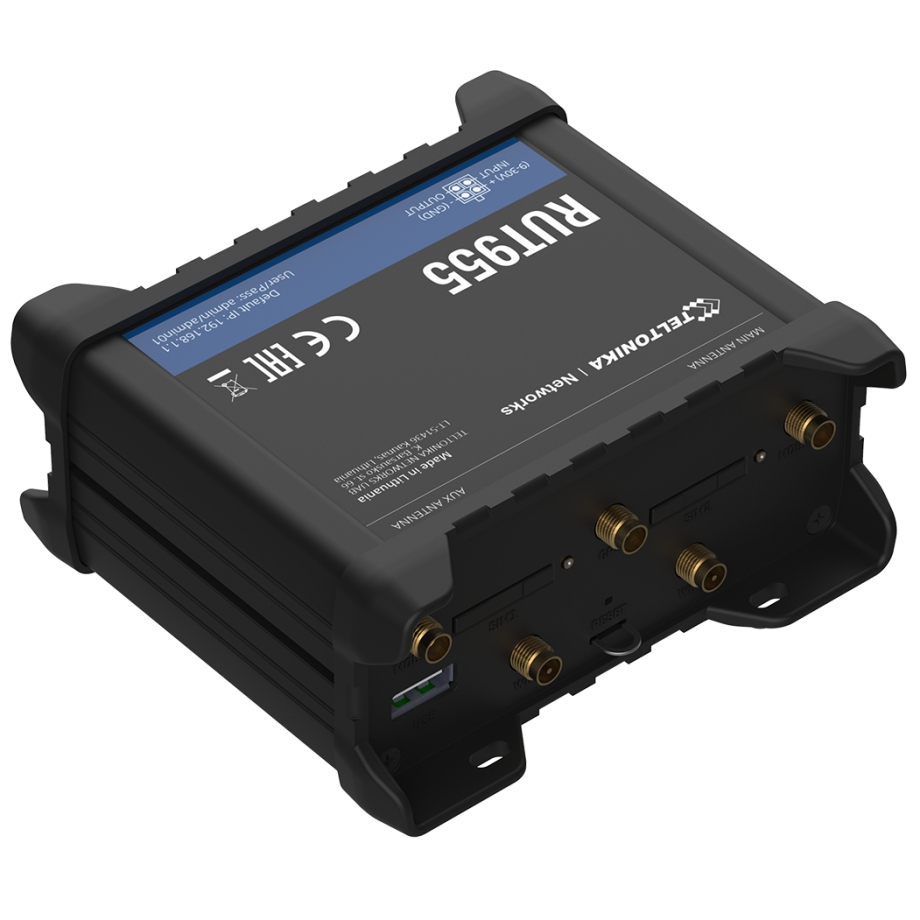

Teltonika RUT955 Global LTE 4G Router
This item has been discontinued
We recommend to use the product presented below
Teltonika RUT956 Global dual-SIM LTE Router
RUT9564*****
Available alternatives
Detailed description
4G LTE CAT4 Industrial Cellular Router
RUT955 Global is a professional rugged Dual-SIM 4G/LTE/Wi-Fi cellular router. The router is equipped with Ethernet, Digital & Analogue I/Os, RS232, RS485, GNSS (GPS), microSD and USB interfaces. The device delivers high performance, mission-critical cellular communication and GPS location capabilities and is equipped with connectivity redundancy through Dual-SIM failover. External antenna connectors make it possible to attach desired antennas and to easily find the location with best signal.
Supported Bands:
- 4G (LTE-FDD): B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B12 (700 MHz), B13 (1800 MHz), B18 (850 MHz), B19 (800 MHz), B20 (800 MHz), B25 (1900 MHz), B26 (850 MHz), B28 (700 MHz)
- 4G (LTE-TDD): B38 (2600 MHz), B39 (1900 MHz), B40 (2300 MHz), B41 (2500 MHz)
- 3G: B1 (2100 MHz), B2 (1900 MHz), B4 (1700 MHz), B5 (850 MHz), B6 (800 MHz), B8 (900 MHz), B19 (800 MHz)
- 2G: B2 (1900 MHz), B3 (1800 MHz), B5 (850 MHz), B8 (900 MHz)
Compatible products
Specifications
Mobile Network
Mobile Network Generation
2G (GSM), 3G (UMTS), 4G (LTE)
LTE Category
Cat4 - 150Mbps/50Mbps
FDD LTE Frequency Bands
1 (2100MHz), 2 (1900MHz), 3 (1800MHz), 4 (1700MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 12 (700MHz), 13 (700MHz), 18 (850MHz), 19 (850MHz), 20 (800MHz), 25 (1900MHz), 26 (850MHz), 28 (700MHz)
TDD LTE Frequency Bands
38 (2600MHz), 39 (1900MHz), 40 (2300MHz), 41 (2500MHz)
SIM Card Slot
Dual SIM
Wireless Network
Standards
802.11b/g/n
2.4GHz Radio Rate
300 Mbps
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
2.400 - 2.483 (GHz) 5 (dBi)
Mobile Antenna Frequency Range & Gain
0.698 - 0.960 (GHz) 3 (dBi), 1.710 - 2.690 (GHz) 3 (dBi)
Mobile Antenna Gain
3 dBi
VSWR
< 3
Impedance
50 Ω
Connectors
RF Connectors
(3) SMA Female, (2) RP-SMA Female
Interfaces
RJ45 Ports
(4) 100 Mbps
Interface
(1) Digital Input, (1) Digital Output
USB Ports
(1) USB-A 2.0
Communication Interface
RS232, RS485, 10 pin Inputs/Outputs Connector
Memory card slots
1 microSD
System Specification
Chipset
Atheros Wasp, MIPS 74Kc, 550 MHz
RAM
128 MB
Storage Memory
16 MB
Tracking
GNSS
GPS, GLONASS, BeiDou, Galileo, QZSS
Power
Power Method
AC/DC Adapter, 24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
9 - 30 V DC
Max Power Consumption
7 W
Power Connector
4-pin, 3 mm
Physical Parameters
Material
Aluminium
Ingress Protection Code
IP30
Dimensions
110 x 100 x 50 mm
Weight
0.287 kg
Environment
Indoor
Mounting Method
DIN Rail, Tabletop
Form Factor
Desktop
Package Contains
External Power Supply
Included
