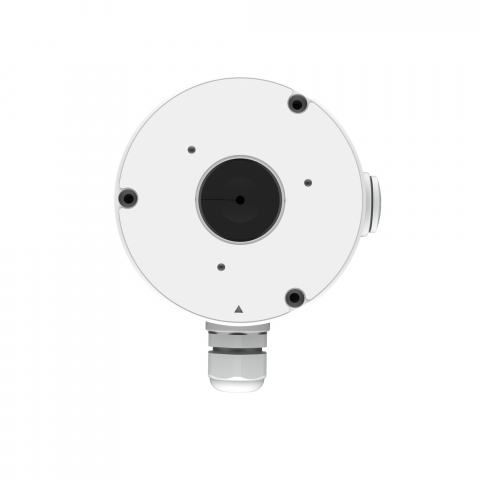

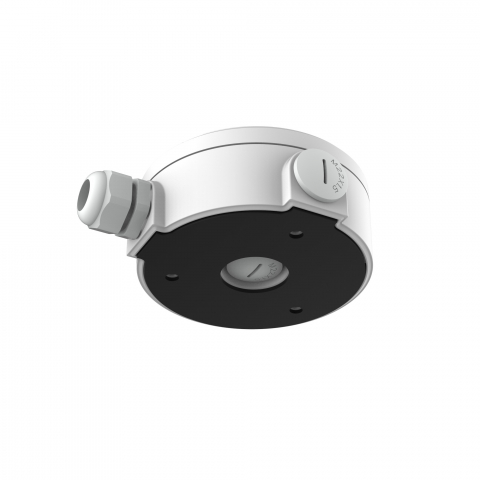

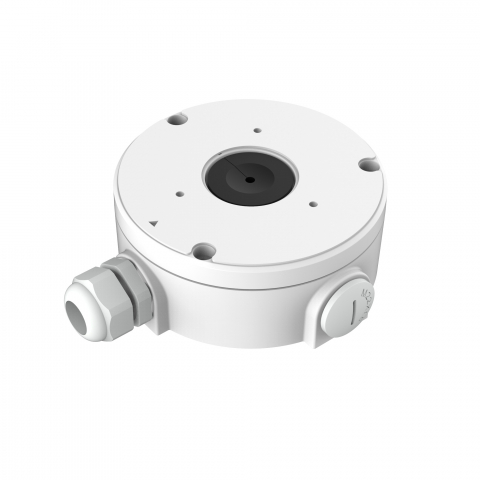

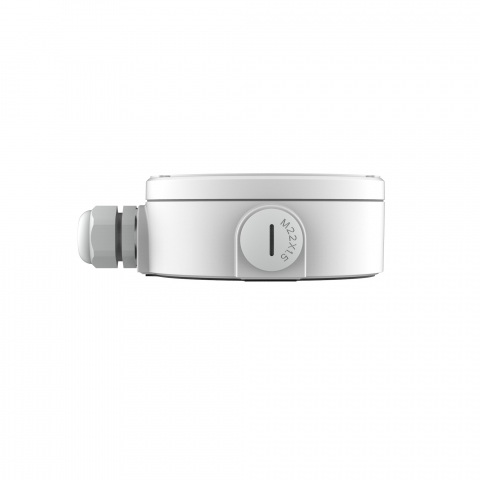

Milesight MS-A83 Junction Box for Mini Dome Cameras

The Milesight MS-A83 is an aluminium-alloy junction box intended for compatible weather-resistant mini dome cameras. It supports both wall and ceiling installation and provides internal space for hiding camera connectors, cable joints, and excess wiring. Cable entry is available from the side and through the base, allowing the installer to select a routing method that matches the mounting surface and existing cable path. By enclosing the connections behind the camera, the box helps reduce visible wiring and makes electrical connections more difficult to access or tamper with.

he circular enclosure measures approximately Ø122 × 46.5 mm and weighs 270 g, providing a compact mounting base without significantly increasing the overall size of the camera installation. Its metal construction offers a stable interface between the camera and the mounting surface. The MS-A83 is especially useful where connectors cannot be recessed into the wall or ceiling, or where surface-mounted cables must enter the camera assembly from the side. It provides a purpose-built solution for protecting connections while maintaining a clean and orderly appearance around compatible Milesight mini dome cameras.
