5MP Motorized Mini Bullet Camera

This item has been discontinued
Available alternatives
Detailed description
AI Video Analytics

Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.
People Counting

High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.
Face Detection

Face Detection function detects human faces in the monitoring scene and captures the snapshots, which greatly enhances the monitoring efficiency and benefits the large population related industries such as public security, access control and business management.
Advanced Heat Map

With scenario-adaptable and flexible configurations, Milesight Advanced Heat Map is embedded into the AI series which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.
Advanced Motorized Lens

With flexible motorized lens (2.7~13.5mm), the camera is able to capture distant subjects rather than fixing on the specific scene with no flexibility. The ultra wide angle lens brings wider field of view to broaden horizons, leaving the narrow view experiences behind.

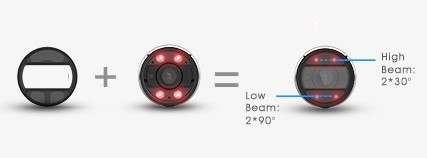

Smart IR II Technology

To maximize the IR performance, the AI Motorized Bullet Network Camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees superb IR performance with the combination of two High Beams and two Low Beams and adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.
0.008Lux Ultra Low-light

The AI Motorized Bullet Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.008Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
Unique Structure Design

The camera features 3-axis mechanical design for fast and easy adjustment of the camera’s viewing angle, allowing to position the camera precisely. Another highlight of the structure lies in the mounting bracket which is able to conceal the cables, offering a well-rounded protection of the cable from any water, dust or shock damages.

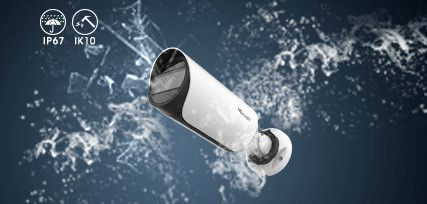

IP67 & IK10

Sharply contrasting to the mini size, the AI Motorized Bullet Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.
Compare with similar products
| Sensor | ||||||
| 1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS | |
| Lens | ||||||
| Motorized focal 2.7-13.5 mm | Fixed focal 4.0 mm | Fixed focal 2.8 mm | Fixed focal 2.8 mm | Motorized focal 2.7-13.5 mm | Fixed focal 2.8 mm | |
| Viewing Angle | ||||||
| 31° (H) 23° (V) | 86 ° (H) 63 ° (V) | 105 ° (H) 78 ° (V) | 105 ° (H) 78 ° (V) | 107 ° (H) 58 ° (V) | 108 ° (H) 60 ° (V) | |
| Resolution | ||||||
| 2592 × 1944 | 2592 × 1944 | 2592 × 1944 | 2592 × 1944 | 3840 х 2160 | 3840 х 2160 | |
| Maximum Frame Rate | ||||||
| 30 FPS | 30 FPS | 20 FPS | 30 FPS | 30 FPS | 30 FPS | |
| Ethernet Ports | ||||||
| 1 x 100 Mbps | 1 x 100 Mbps | 1 x 100 Mbps | 1 x 100 Mbps | 1 x 100 Mbps | 1 x 100 Mbps | |
| Max Power Consumption | ||||||
| 9 W | 6 W | 6 W | 5 W | 10 W | 6 W | |
| Sensor | 1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS |
| Lens | Motorized focal 2.7-13.5 mm | Fixed focal 4.0 mm | Fixed focal 2.8 mm | Fixed focal 2.8 mm | Motorized focal 2.7-13.5 mm | Fixed focal 2.8 mm |
| Viewing Angle | 31° (H) 23° (V) | 86 ° (H) 63 ° (V) | 105 ° (H) 78 ° (V) | 105 ° (H) 78 ° (V) | 107 ° (H) 58 ° (V) | 108 ° (H) 60 ° (V) |
| Resolution | 2592 × 1944 | 2592 × 1944 | 2592 × 1944 | 2592 × 1944 | 3840 х 2160 | 3840 х 2160 |
| Maximum Frame Rate | 30 FPS | 30 FPS | 20 FPS | 30 FPS | 30 FPS | 30 FPS |
| Ethernet Ports | 1 x 100 Mbps | 1 x 100 Mbps | 1 x 100 Mbps | 1 x 100 Mbps | 1 x 100 Mbps | 1 x 100 Mbps |
| Max Power Consumption | 9 W | 6 W | 6 W | 5 W | 10 W | 6 W |
Compatible products
Specifications
Video
Resolution
2592 × 1944
Maximum Frame Rate
30 FPS
Video Compression
H.264, H.264+, H.265, H.265+, MJPEG
Audio
Microphone
Build-in
Speaker
Build-in
Audio Compression Standard
G.711, G.722.1, G.726, AAC
Video Camera
Sensor
1/2.8" Progressive Scan CMOS
Lens
Motorized focal 2.7-13.5 mm
Viewing Angle
31 ° (H) 23 ° (V)
Interfaces
RJ45 Ports
(1) 100 Mbps
Memory card slots
1 microSD
System Specification
Supports microSD card up to
256 GB
Power
Power Method
802.3af PoE
Max Power Consumption
9 W
Physical Parameters
Color
White
Material
Metal
Ingress Protection Code
IP67
Housing Durability
Vandal-proof IK10-rated
Dimensions
Ø76 x 239.5 mm
Weight
0.825 kg
Operating Temperature
-40 °C to 60 °C
Environment
Outdoor
Mounting Method
Wall Mount
